Product Specifications

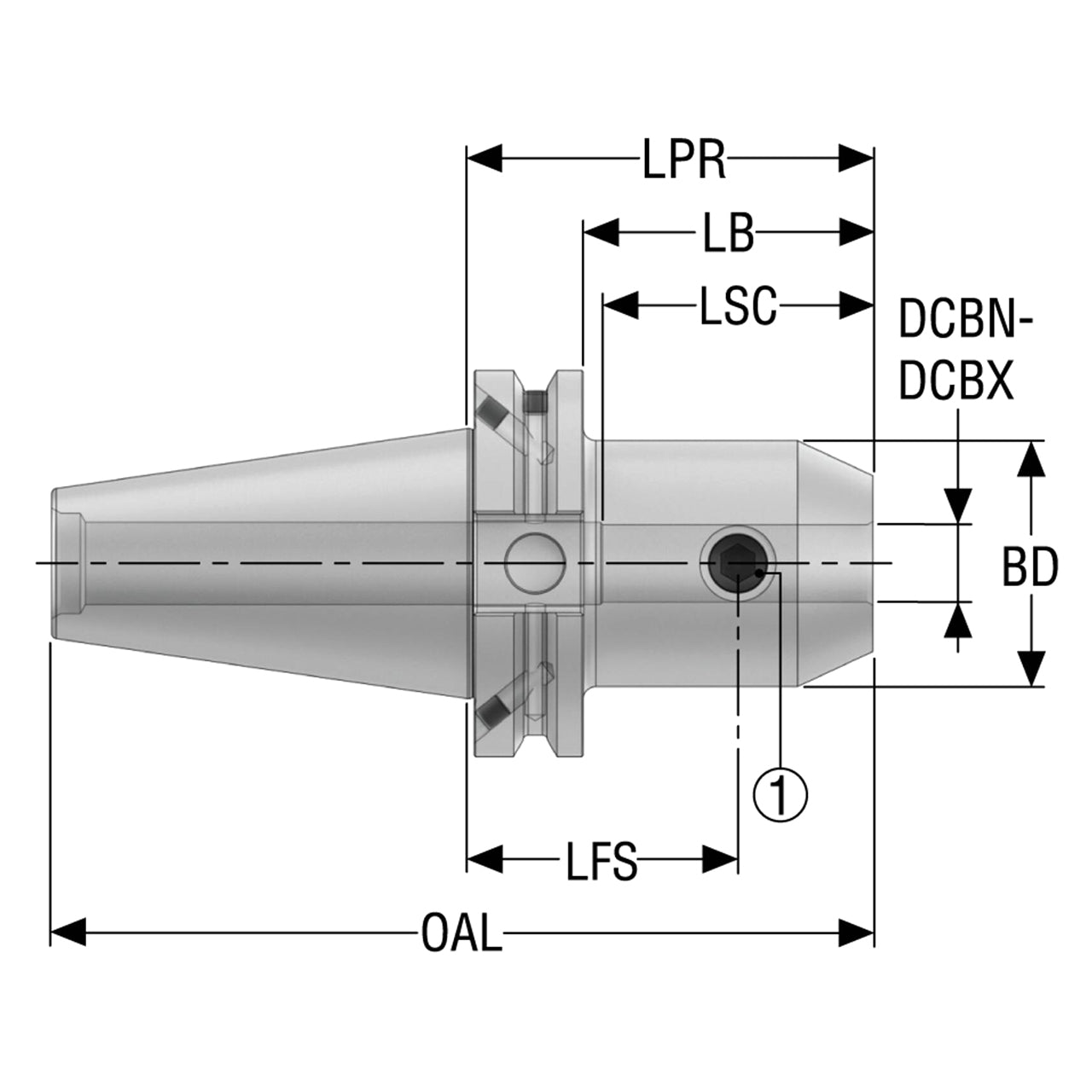

| Manufacturer Part Number | 10008198 |
| Body Diameter (Decimal Inch) | 1.595" |
| Body Diameter (mm) | 40.50mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Maximum Connection Bore Diameter (mm) | 12.70mm |
| Body Length (Decimal Inch) | 1.870" |
| Body Length (mm) | 47.50mm |
| Functional Length Secondary (Decimal Inch) | 1.745" |
| Functional Length Secondary (mm) | 44.32mm |
| Protruding Length (Decimal Inch) | 2.581" |
| Protruding Length (mm) | 65.55mm |
| Clamping Length (Decimal Inch) | 1.750" |
| Clamping Length (mm) | 44.45mm |
| Overall Length (Decimal Inch) | 5.307" |
| Overall Length (mm) | 134.80mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |

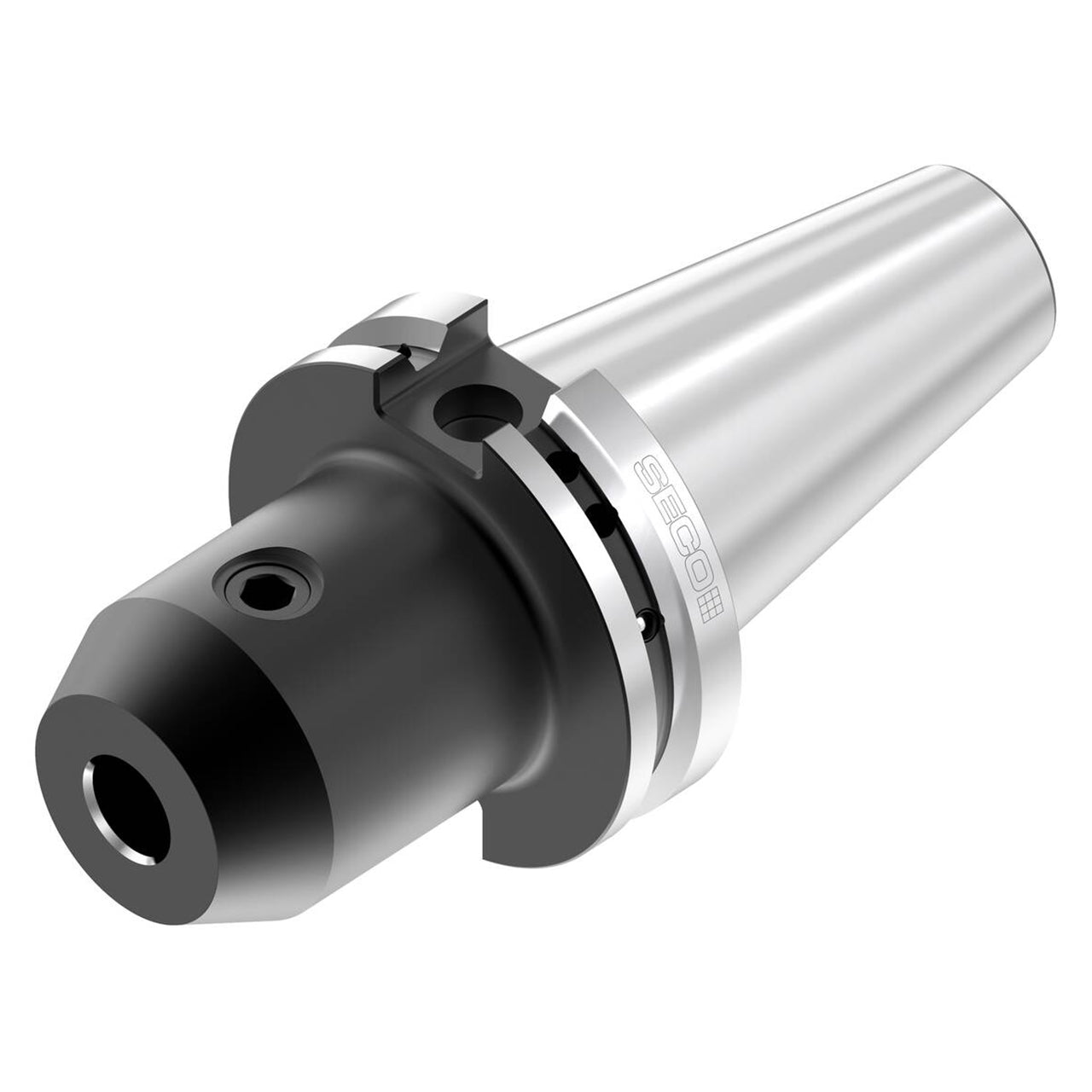

| Product Type | End Mill Holder |
