Product Specifications
| Manufacturer Part Number | 10008197 |
| Body Diameter (Decimal Inch) | 3.150" |
| Body Diameter (mm) | 80.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.575" |
| Maximum Connection Bore Diameter (mm) | 40.00mm |
| Body Length (Decimal Inch) | 3.750" |
| Body Length (mm) | 95.25mm |
| Functional Length Secondary (Decimal Inch) | 3.319" |
| Functional Length Secondary (mm) | 84.30mm |
| Protruding Length (Decimal Inch) | 4.500" |
| Protruding Length (mm) | 114.30mm |
| Clamping Length (Decimal Inch) | 2.756" |
| Clamping Length (mm) | 70.00mm |
| Overall Length (Decimal Inch) | 8.500" |
| Overall Length (mm) | 215.90mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

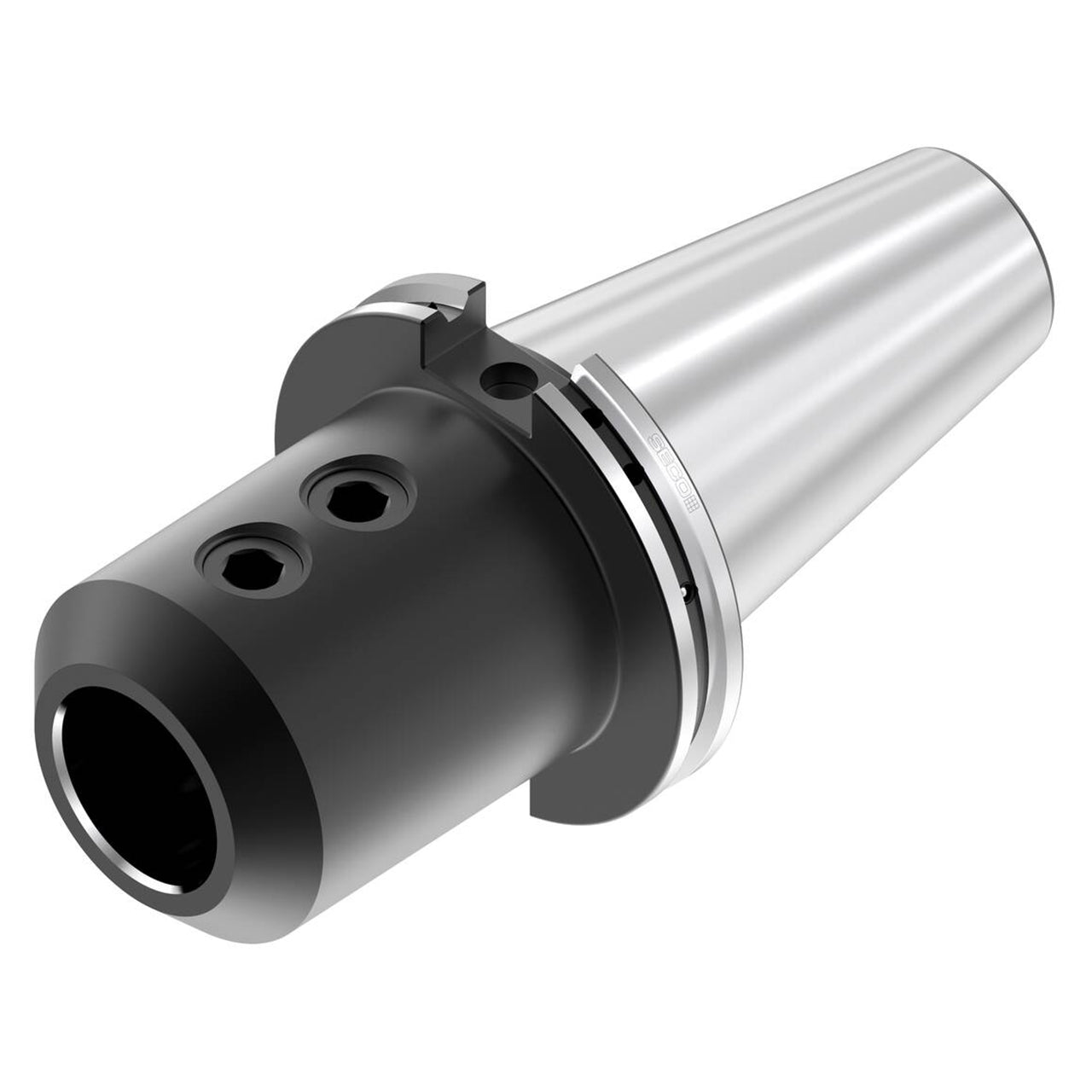

| Product Type | End Mill Holder |
