Product Specifications

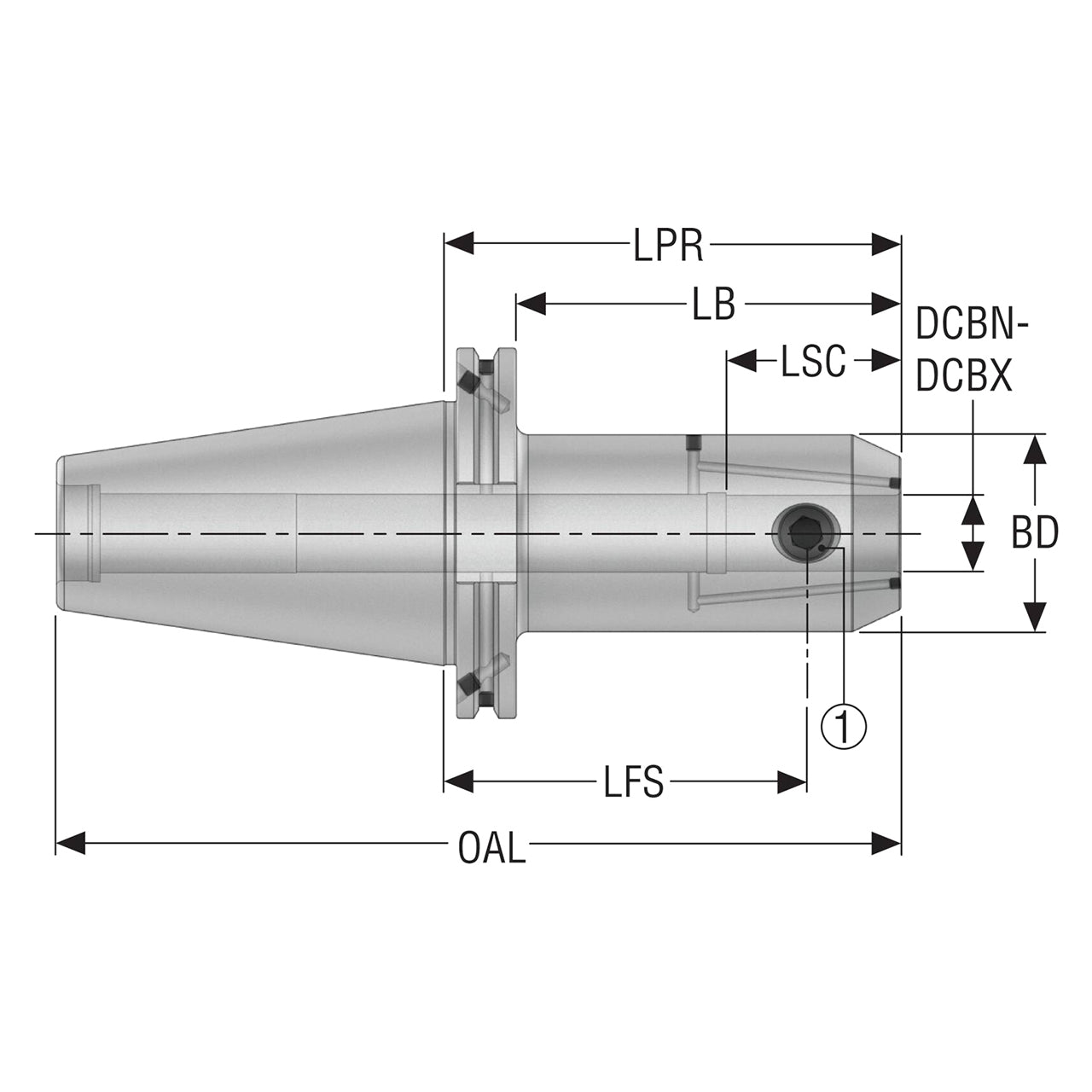

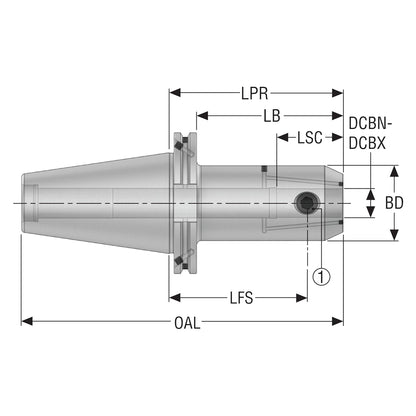

| Manufacturer Part Number | 10007256 |
| Body Diameter (Decimal Inch) | 1.102" |
| Body Diameter (mm) | 28.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Minimum Connection Bore Diameter (mm) | 8.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Maximum Connection Bore Diameter (mm) | 8.00mm |
| Body Length (Decimal Inch) | 3.972" |
| Body Length (mm) | 100.90mm |
| Functional Length Secondary (Decimal Inch) | 4.016" |
| Functional Length Secondary (mm) | 102.00mm |
| Protruding Length (Decimal Inch) | 4.724" |
| Protruding Length (mm) | 120.00mm |
| Clamping Length (Decimal Inch) | 1.378" |
| Clamping Length (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 8.730" |
| Overall Length (mm) | 221.75mm |
| Data Chip Provision | 1 |

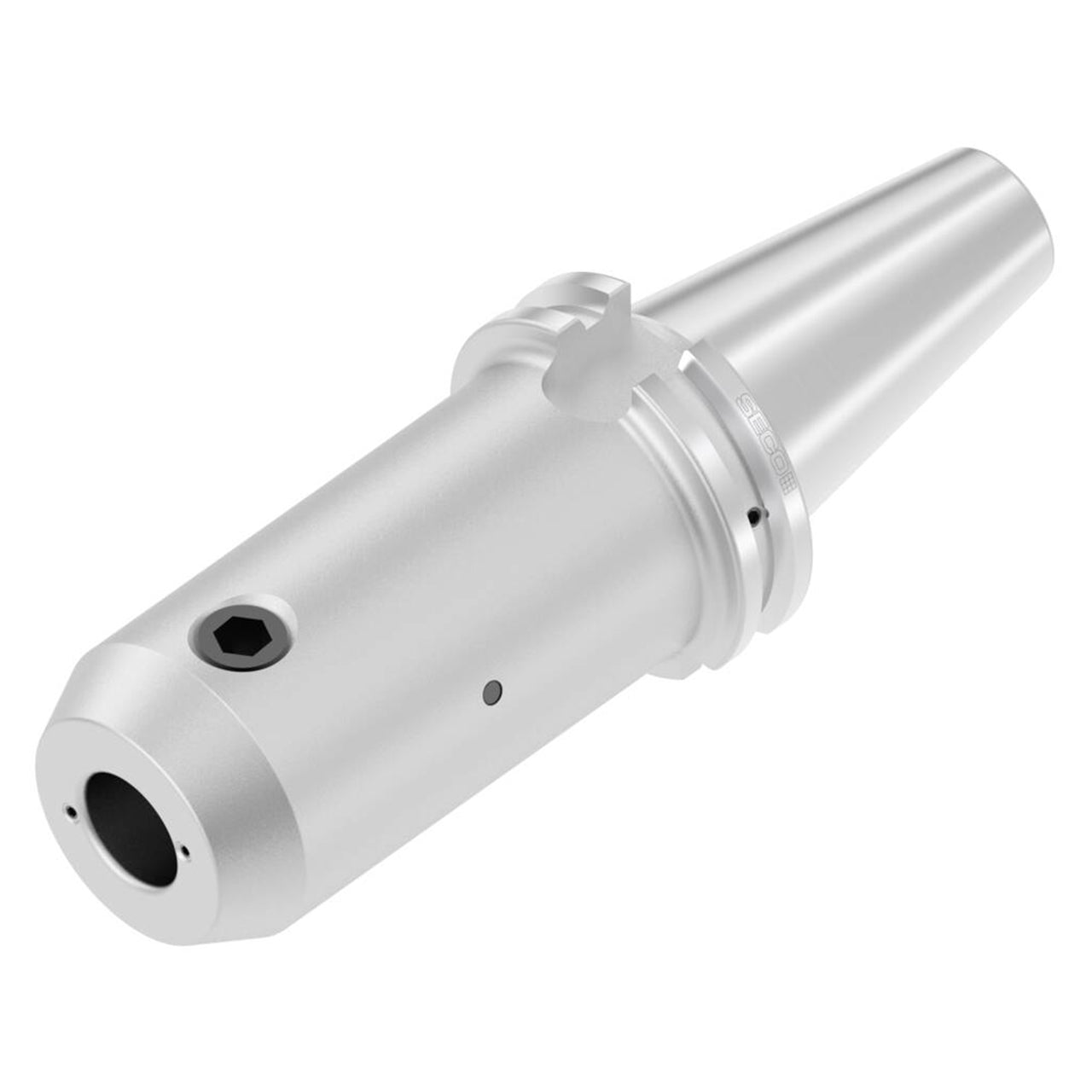

| Product Type | End Mill Holder |
