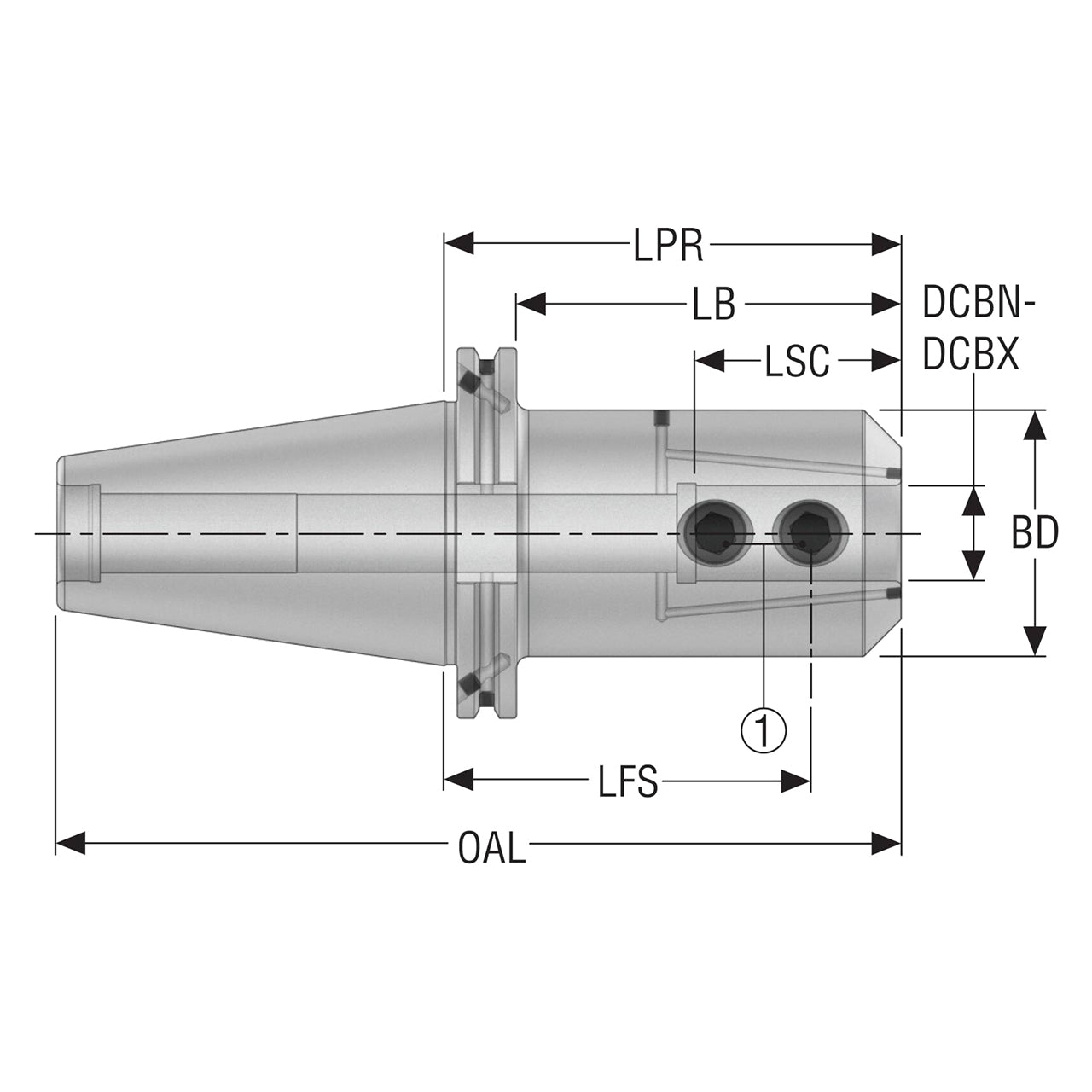

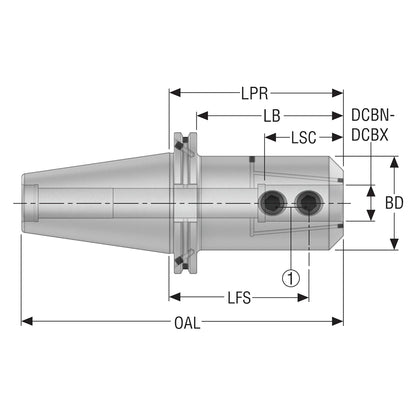

Product Specifications
| Manufacturer Part Number | 10007251 |
| Body Diameter (Decimal Inch) | 2.480" |
| Body Diameter (mm) | 63.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Minimum Connection Bore Diameter (mm) | 25.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Maximum Connection Bore Diameter (mm) | 25.00mm |
| Body Length (Decimal Inch) | 3.185" |
| Body Length (mm) | 80.90mm |
| Functional Length Secondary (Decimal Inch) | 2.992" |
| Functional Length Secondary (mm) | 76.00mm |
| Protruding Length (Decimal Inch) | 3.937" |
| Protruding Length (mm) | 100.00mm |
| Clamping Length (Decimal Inch) | 2.126" |
| Clamping Length (mm) | 54.00mm |
| Overall Length (Decimal Inch) | 6.630" |
| Overall Length (mm) | 168.40mm |
| Data Chip Provision | 1 |

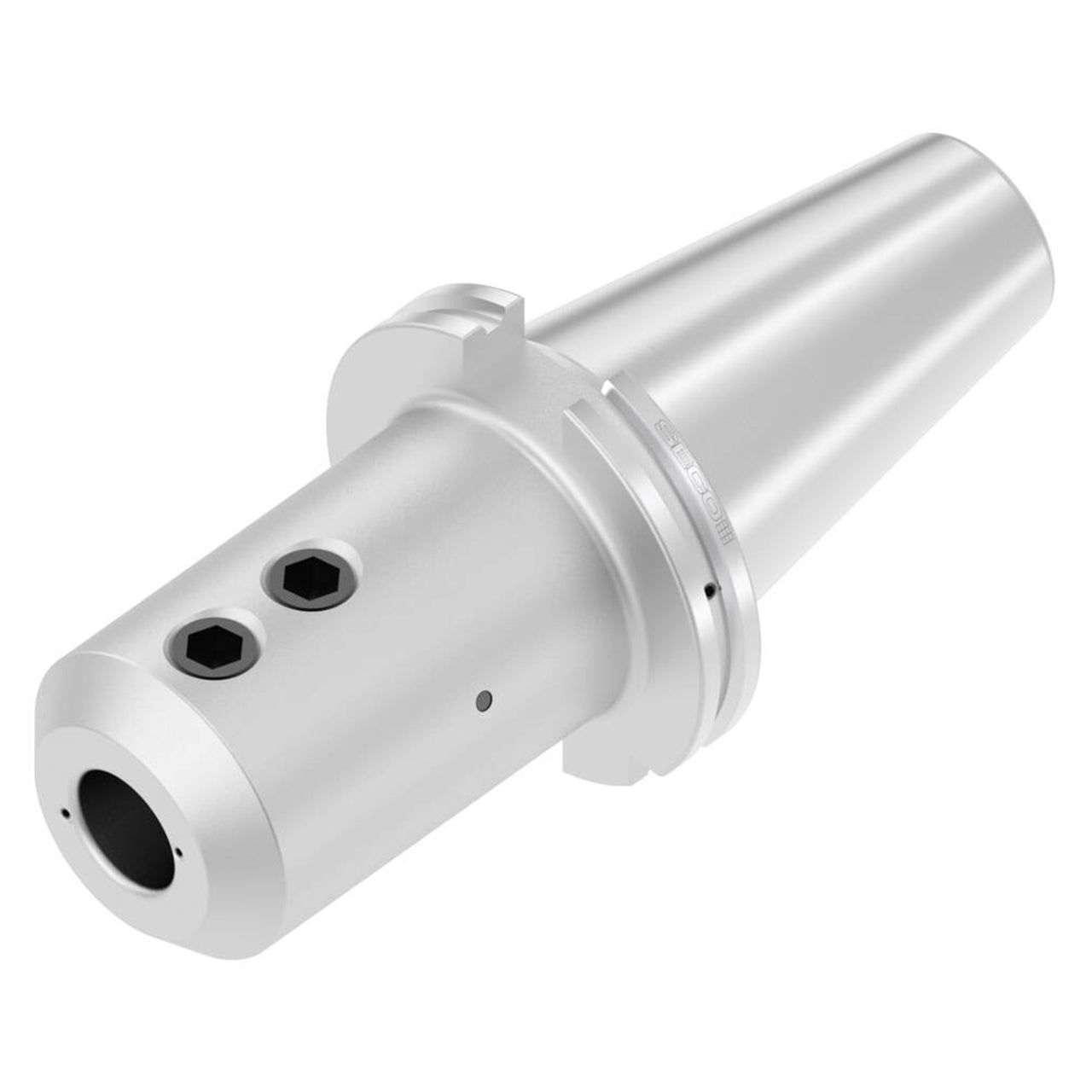

| Product Type | End Mill Holder |
