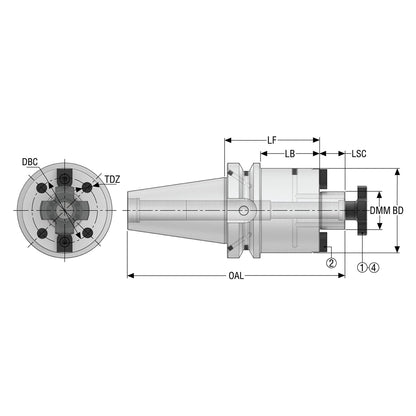

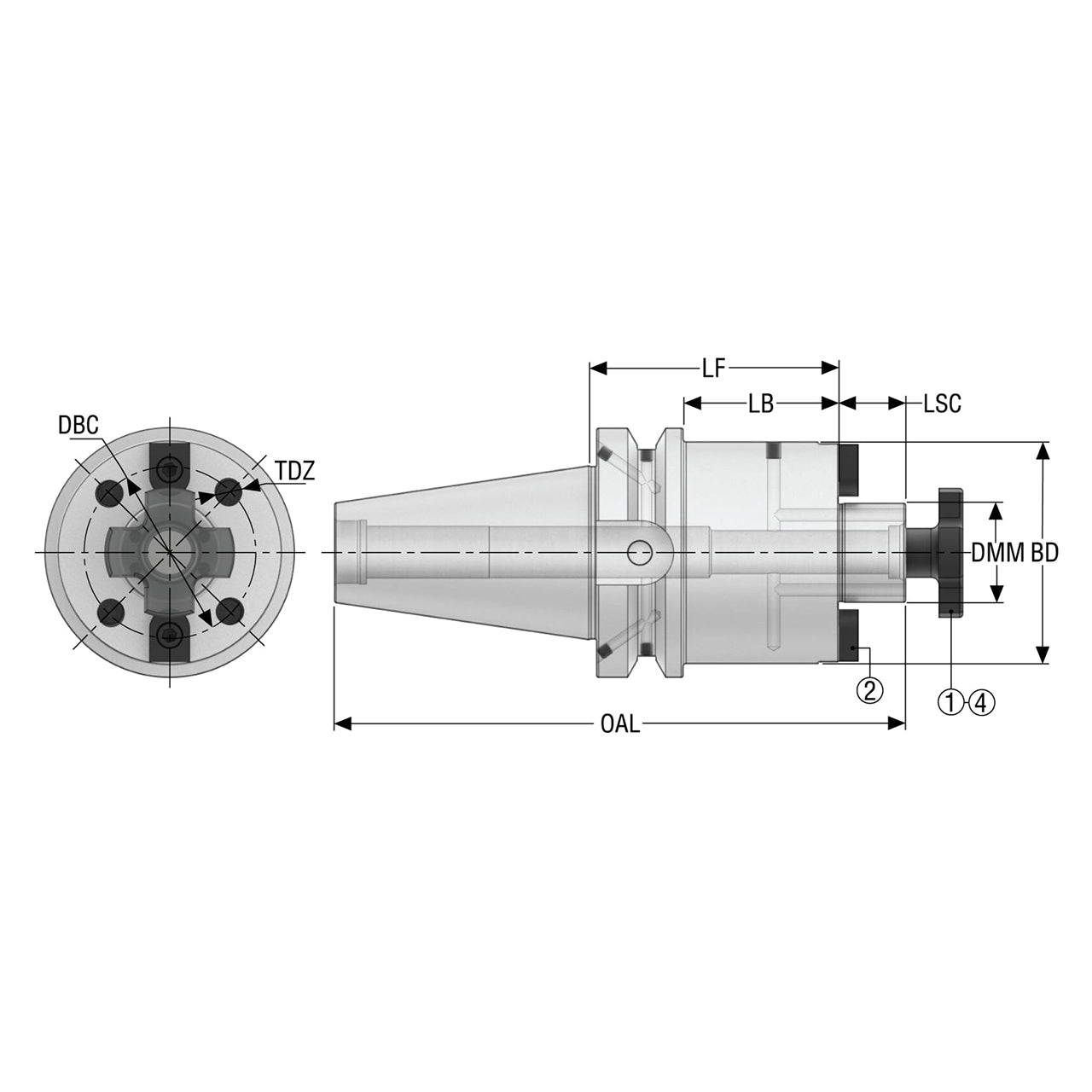

Product Specifications
| Manufacturer Part Number | 10007160 |
| Body Diameter (Decimal Inch) | 3.504" |
| Body Diameter (mm) | 89.00mm |
| Diameter Bolt Circle (Decimal Inch) | 2.626" |
| Diameter Bolt Circle (mm) | 66.70mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.575" |
| Connection Diameter Workpiece Side (mm) | 40.00mm |
| Shank Diameter (Decimal Inch) | 1.575" |
| Shank Diameter (mm) | 40.00mm |
| Thread Diameter Size | M12 |
| Body Length (Decimal Inch) | 4.803" |
| Body Length (mm) | 122.00mm |
| Functional Length (Decimal Inch) | 6.299" |
| Functional Length (mm) | 160.00mm |
| Clamping Length (Decimal Inch) | 1.063" |
| Clamping Length (mm) | 27.00mm |
| Overall Length (Decimal Inch) | 11.370" |
| Overall Length (mm) | 288.80mm |
| Data Chip Provision | 1 |

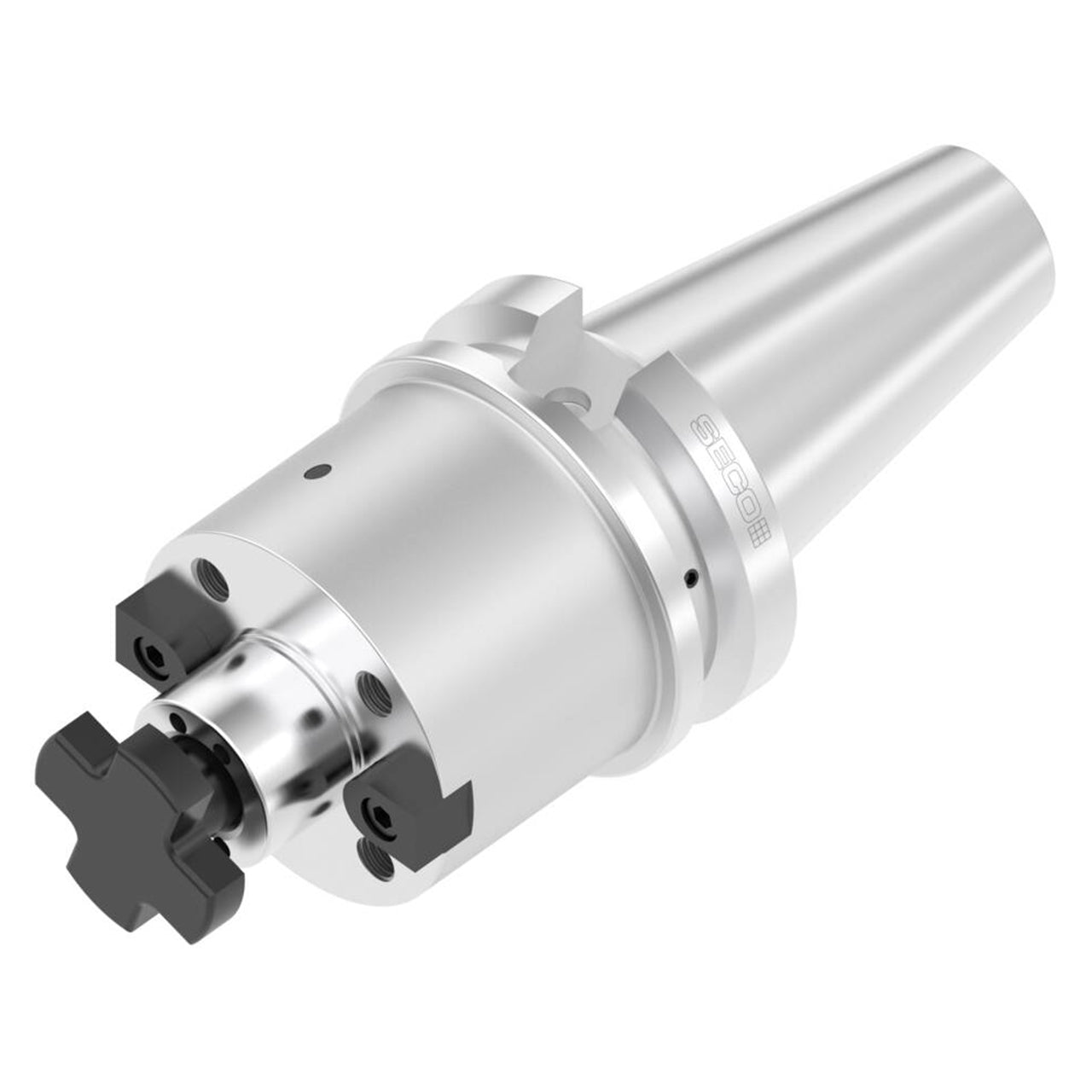

| Product Type | Shell Mill Holder |
