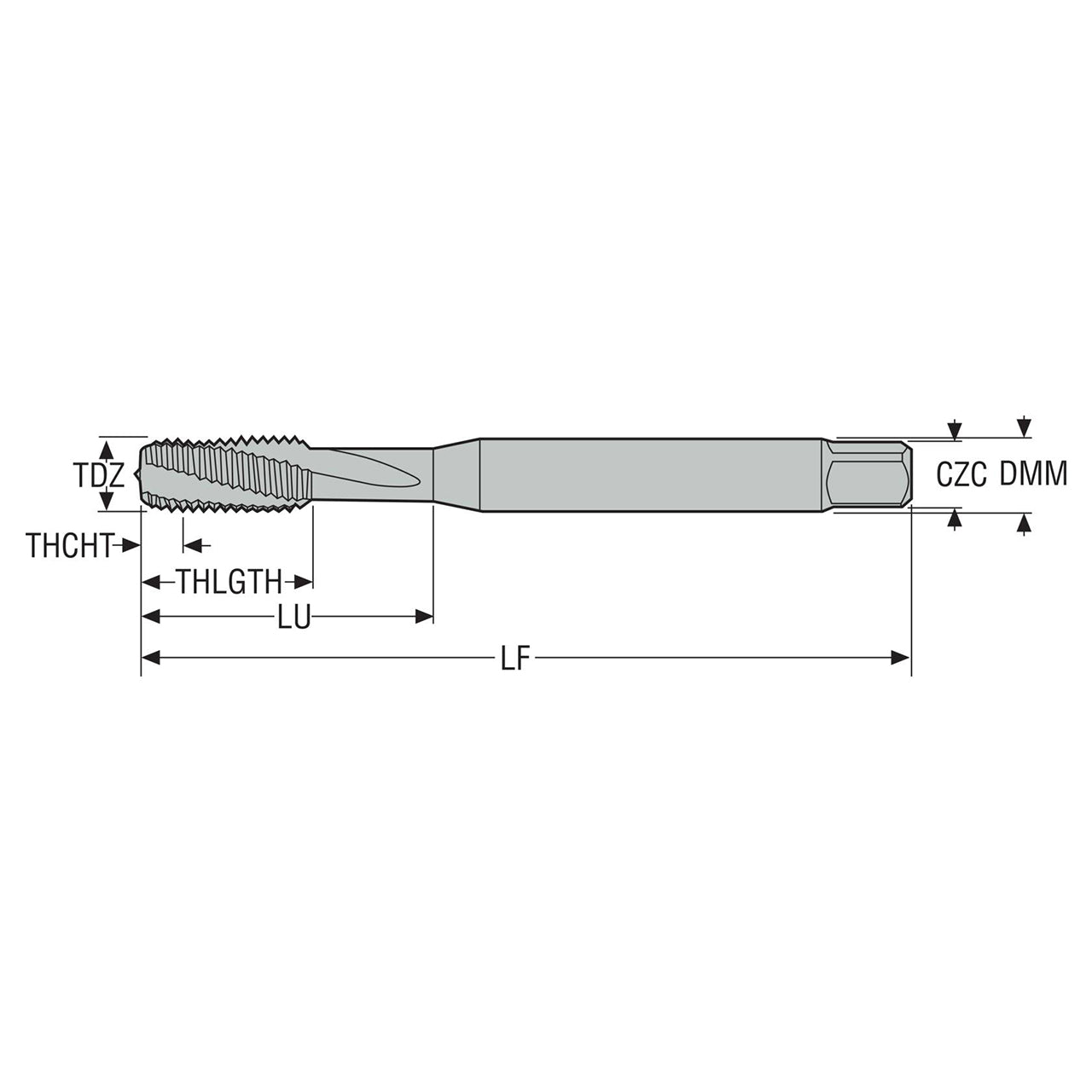

Product Specifications
| Manufacturer Part Number | 10001127 |
| Thread Diameter (Decimal Inch) | 0.193" |
| Thread Diameter (mm) | 4.89mm |
| Threading Chamfer Length (Decimal Inch) | 0.078" |
| Threading Chamfer Length (mm) | 1.98mm |
| Tap Chamfer Length (Decimal Inch) | 0.078" |
| Tap Chamfer Length (mm) | 1.98mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 2.678" |
| Functional Length (mm) | 68.02mm |
| Usable Length (Decimal Inch) | 0.630" |
| Usable Length (mm) | 16.00mm |
| Overall Length (Decimal Inch) | 2.835" |
| Overall Length (mm) | 72.00mm |
| Thread Length (Decimal Inch) | 0.630" |
| Thread Length (mm) | 16.00mm |
| Thread Diameter Size | UNF10-32 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.161" |
| Recommended Premachined Hole Diameter (mm) | 4.10mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.164" |
| Maximum Premachined Hole Diameter (mm) | 4.17mm |
| Minimum Threads Per Inch (mm) | 32.00mm |
| Maximum Threads Per Inch (mm) | 32.00mm |
| Flute Helix Angle (Degree) | 25 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 3B |
| Threading Chamfer Type | C |
| Thread Form Type | UNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | Uncoated |

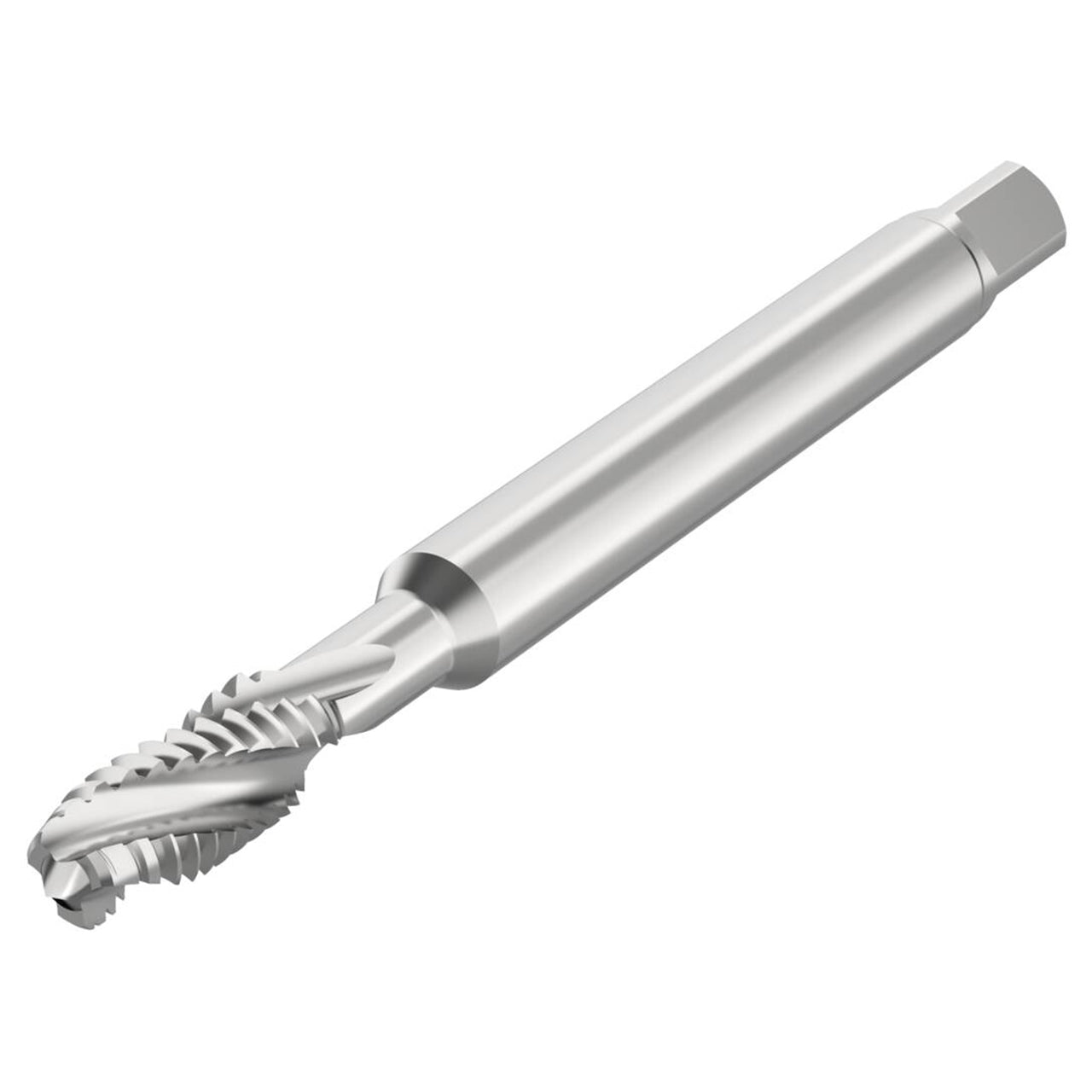

| Product Type | Spiral Flute Tap |
