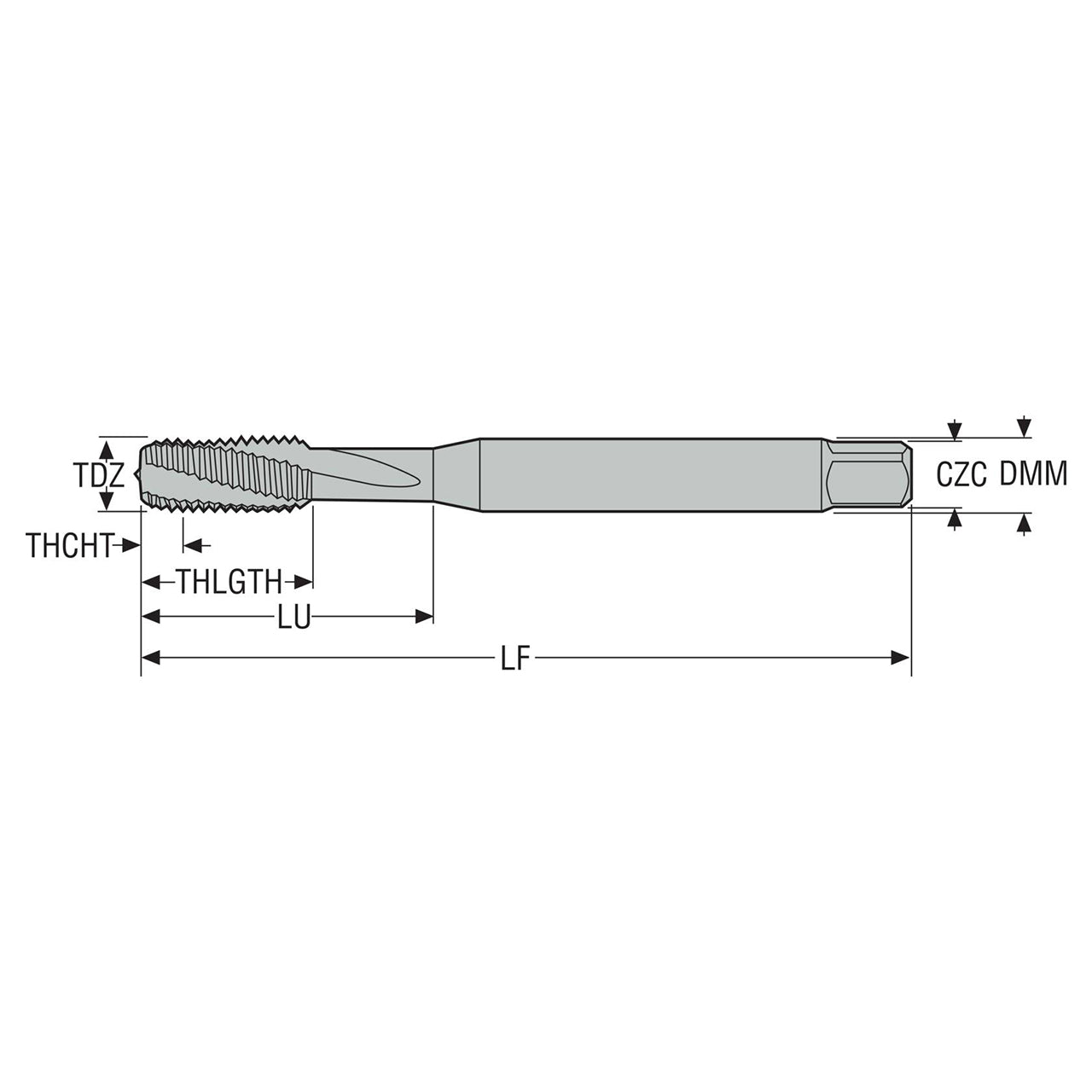

Product Specifications
| Manufacturer Part Number | 10001090 |
| Thread Diameter (Decimal Inch) | 0.194" |
| Thread Diameter (mm) | 4.94mm |
| Threading Chamfer Length (Decimal Inch) | 0.104" |
| Threading Chamfer Length (mm) | 2.65mm |
| Tap Chamfer Length (Decimal Inch) | 0.104" |
| Tap Chamfer Length (mm) | 2.65mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 2.652" |
| Functional Length (mm) | 67.35mm |
| Usable Length (Decimal Inch) | 0.532" |
| Usable Length (mm) | 13.50mm |
| Overall Length (Decimal Inch) | 2.829" |
| Overall Length (mm) | 71.86mm |
| Thread Length (Decimal Inch) | 0.532" |
| Thread Length (mm) | 13.50mm |
| Thread Diameter Size | UNJC10-24 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.154" |
| Recommended Premachined Hole Diameter (mm) | 3.90mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.160" |
| Maximum Premachined Hole Diameter (mm) | 4.06mm |
| Minimum Threads Per Inch (mm) | 24.00mm |
| Maximum Threads Per Inch (mm) | 24.00mm |
| Flute Helix Angle (Degree) | 10 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 3B |
| Threading Chamfer Type | C |
| Thread Form Type | UNJC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | Uncoated |

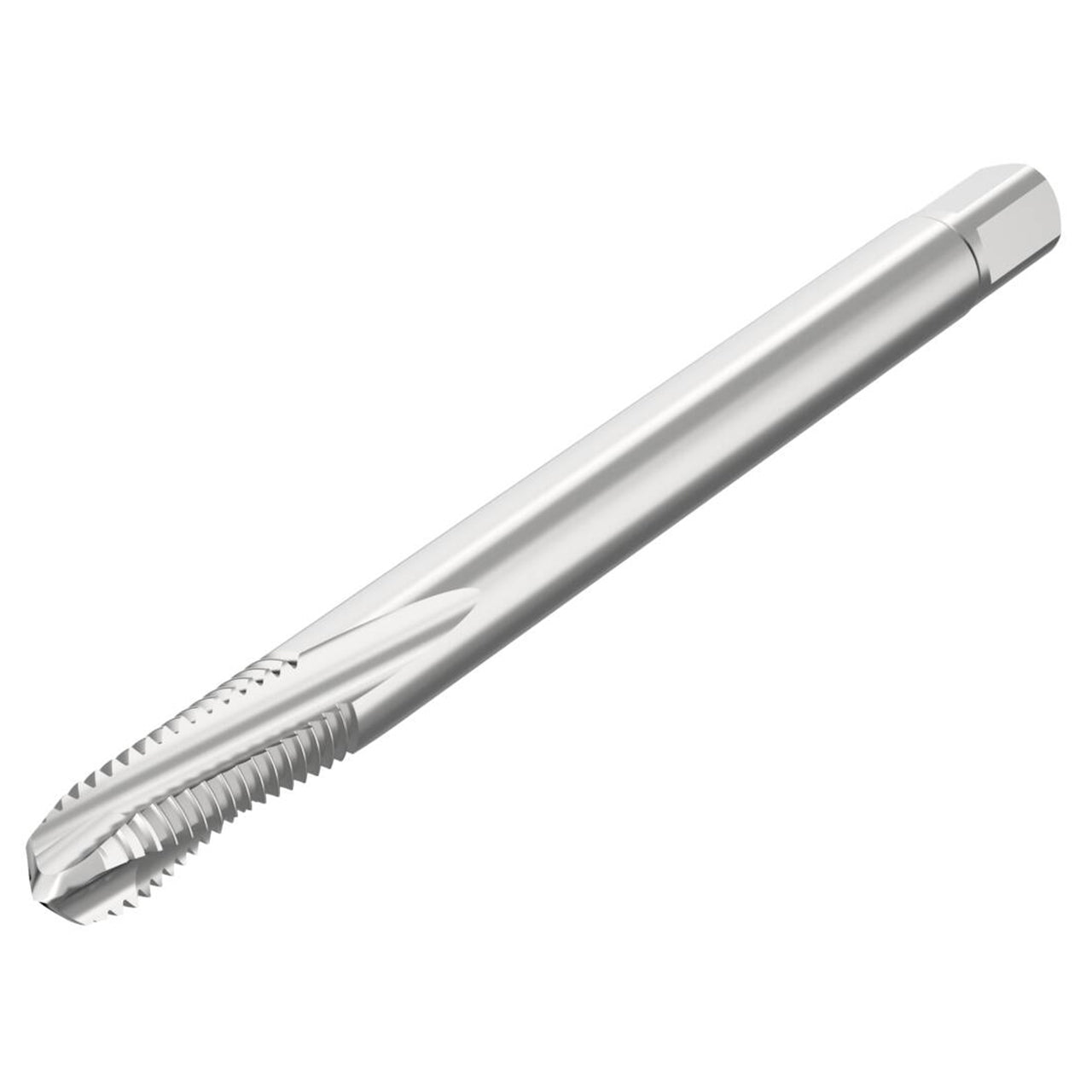

| Product Type | Spiral Flute Tap |
