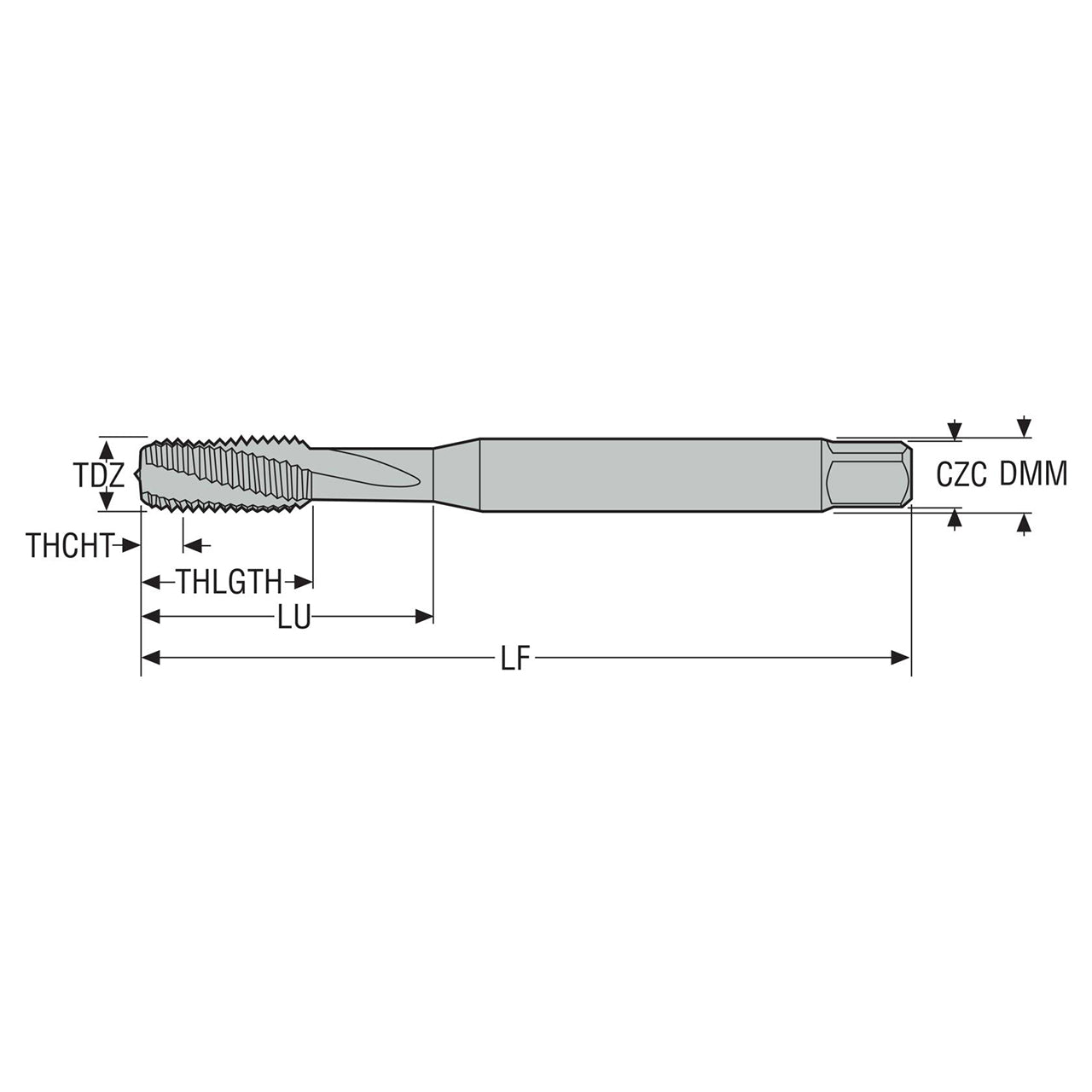

Product Specifications
| Manufacturer Part Number | 10001084 |
| Thread Diameter (Decimal Inch) | 0.399" |
| Thread Diameter (mm) | 10.14mm |
| Threading Chamfer Length (Decimal Inch) | 0.123" |
| Threading Chamfer Length (mm) | 3.13mm |
| Tap Chamfer Length (Decimal Inch) | 0.123" |
| Tap Chamfer Length (mm) | 3.13mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.394" |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Functional Length (Decimal Inch) | 3.814" |
| Functional Length (mm) | 96.87mm |
| Usable Length (Decimal Inch) | 0.965" |
| Usable Length (mm) | 24.50mm |
| Overall Length (Decimal Inch) | 4.108" |
| Overall Length (mm) | 104.35mm |
| Thread Length (Decimal Inch) | 0.965" |
| Thread Length (mm) | 24.50mm |
| Thread Diameter Size | MF10X1.25 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.345" |
| Recommended Premachined Hole Diameter (mm) | 8.75mm |
| Connection Size Code | 10.00X8.00 |
| Connection Size Code Machine Side | 10.00X8.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.351" |
| Maximum Premachined Hole Diameter (mm) | 8.91mm |
| Minimum Thread Pitch (Decimal Inch) | 0.049" |
| Minimum Thread Pitch (mm) | 1.25mm |
| Maximum Thread Pitch (Decimal Inch) | 0.049" |
| Maximum Thread Pitch (mm) | 1.25mm |
| Flute Helix Angle (Degree) | 10 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | Uncoated |

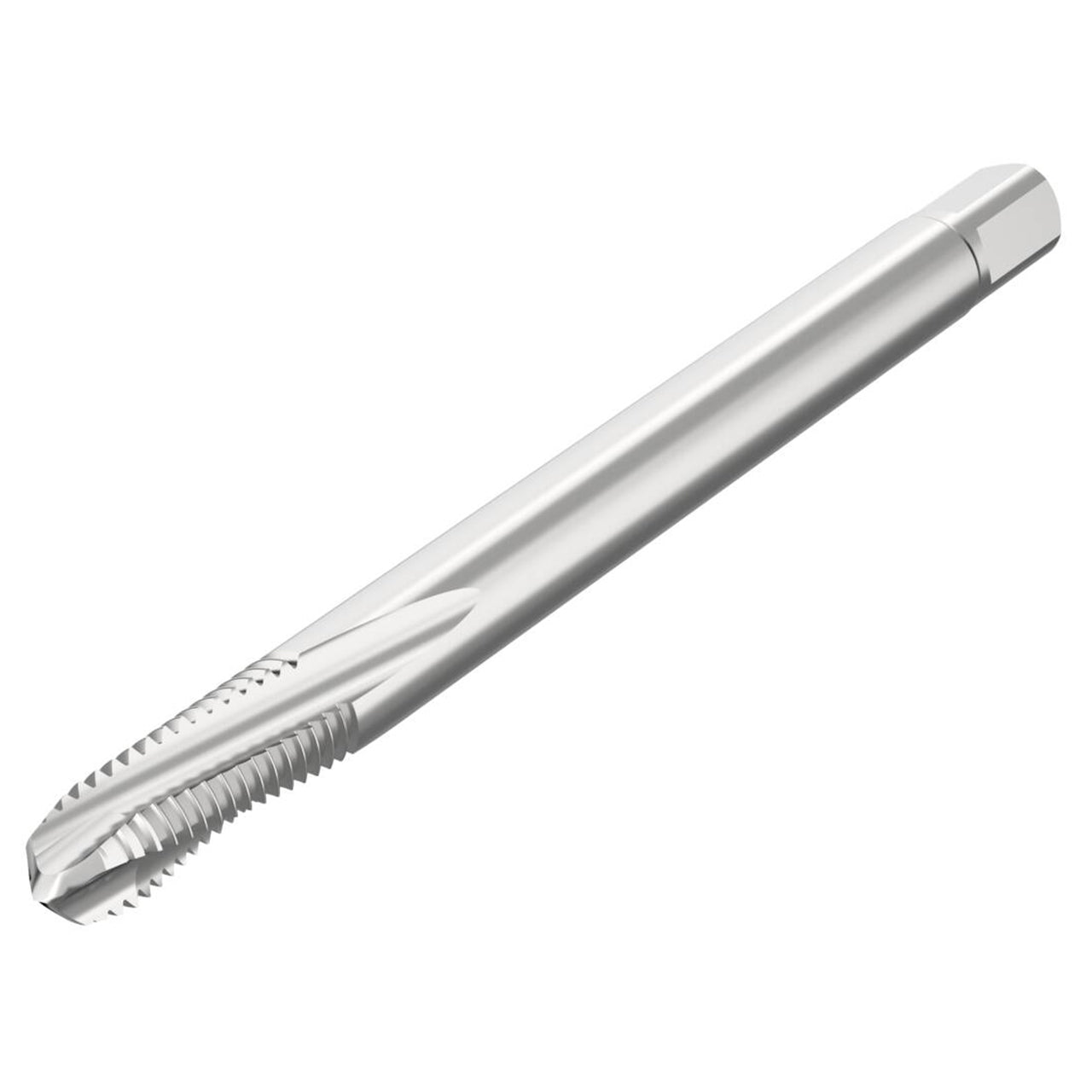

| Product Type | Spiral Flute Tap |
