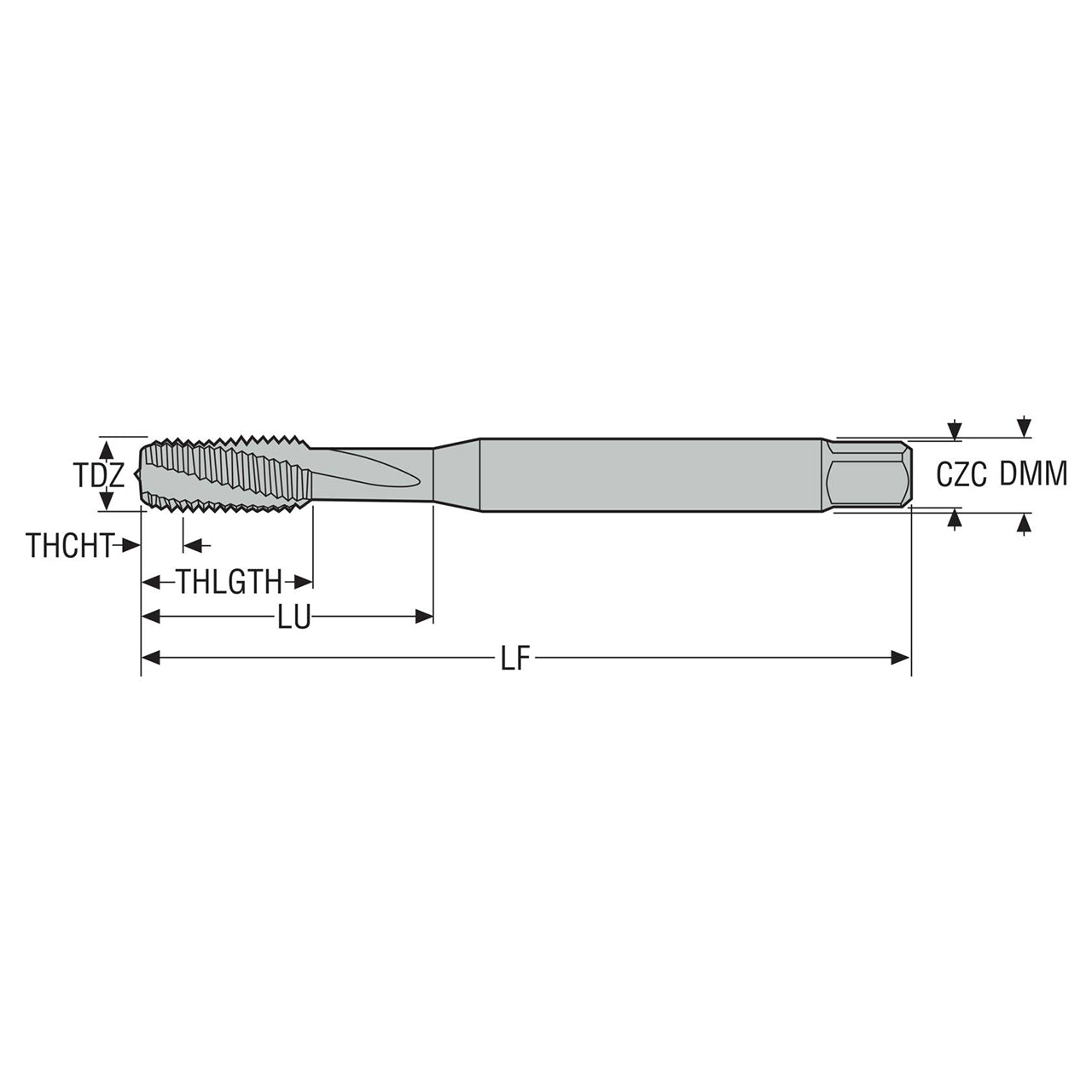

Product Specifications
| Manufacturer Part Number | 10001075 |
| Thread Diameter (Decimal Inch) | 0.201" |
| Thread Diameter (mm) | 5.11mm |
| Threading Chamfer Length (Decimal Inch) | 0.079" |
| Threading Chamfer Length (mm) | 2.00mm |
| Tap Chamfer Length (Decimal Inch) | 0.079" |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 2.677" |
| Functional Length (mm) | 68.00mm |
| Usable Length (Decimal Inch) | 0.512" |
| Usable Length (mm) | 13.00mm |
| Overall Length (Decimal Inch) | 2.838" |
| Overall Length (mm) | 72.08mm |
| Thread Length (Decimal Inch) | 0.512" |
| Thread Length (mm) | 13.00mm |
| Thread Diameter Size | M5 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.169" |
| Recommended Premachined Hole Diameter (mm) | 4.30mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.171" |
| Maximum Premachined Hole Diameter (mm) | 4.33mm |
| Minimum Thread Pitch (Decimal Inch) | 0.032" |
| Minimum Thread Pitch (mm) | 0.80mm |
| Maximum Thread Pitch (Decimal Inch) | 0.032" |
| Maximum Thread Pitch (mm) | 0.80mm |
| Flute Helix Angle (Degree) | 10 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiN |

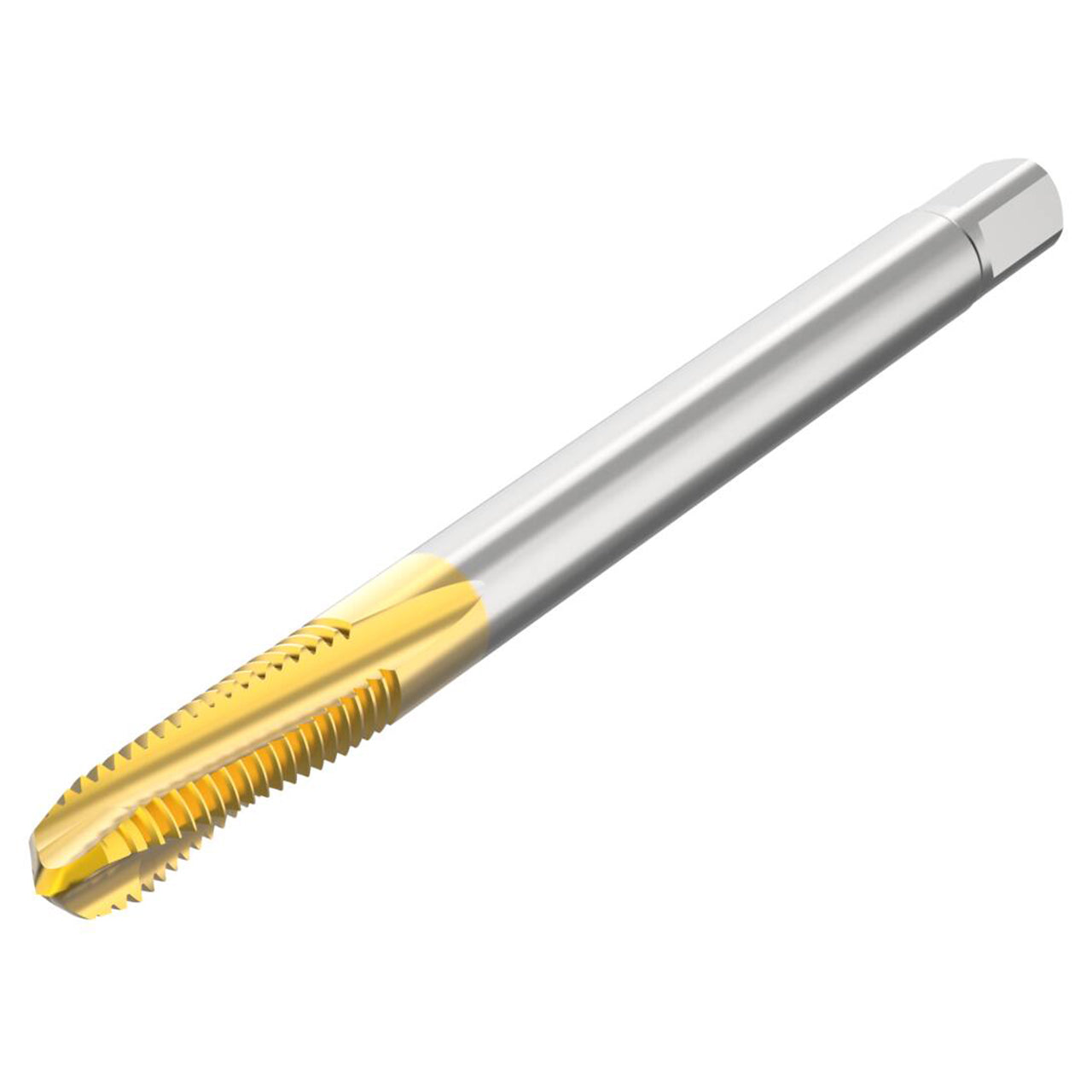

| Product Type | Spiral Flute Tap |
