Product Specifications
| Manufacturer Part Number | 10000967 |
| Cutting Diameter (Decimal Inch) | 6.000" |
| Cutting Diameter (mm) | 152.40mm |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (mm) | 50.80mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 4.331" |
| Contact Surface Diameter Machine Side (mm) | 110.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 11.89" |
| Maximum Helical Interpolation Hole Diameter (mm) | 302.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 11.378" |
| Minimum Helical Interpolation Hole Diameter (mm) | 289.00mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Depth of Key Way (Decimal Inch) | 0.445" |
| Depth of Key Way (mm) | 11.30mm |
| Keyway Width (Decimal Inch) | 0.756" |
| Keyway Width (mm) | 19.20mm |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | bar |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3.78 Degree |
| Rake Radial Angle (Degree) | -3.78 Degree |
| Rake Orthogonal Angle (Degree) | -3.78 Degree |
| Axial Rake Angle (Degree) | 9 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.7 Degree |
| Maximum Rotational Speed (rpm) | 6700 rpm |
| Shank Type | Arbor |

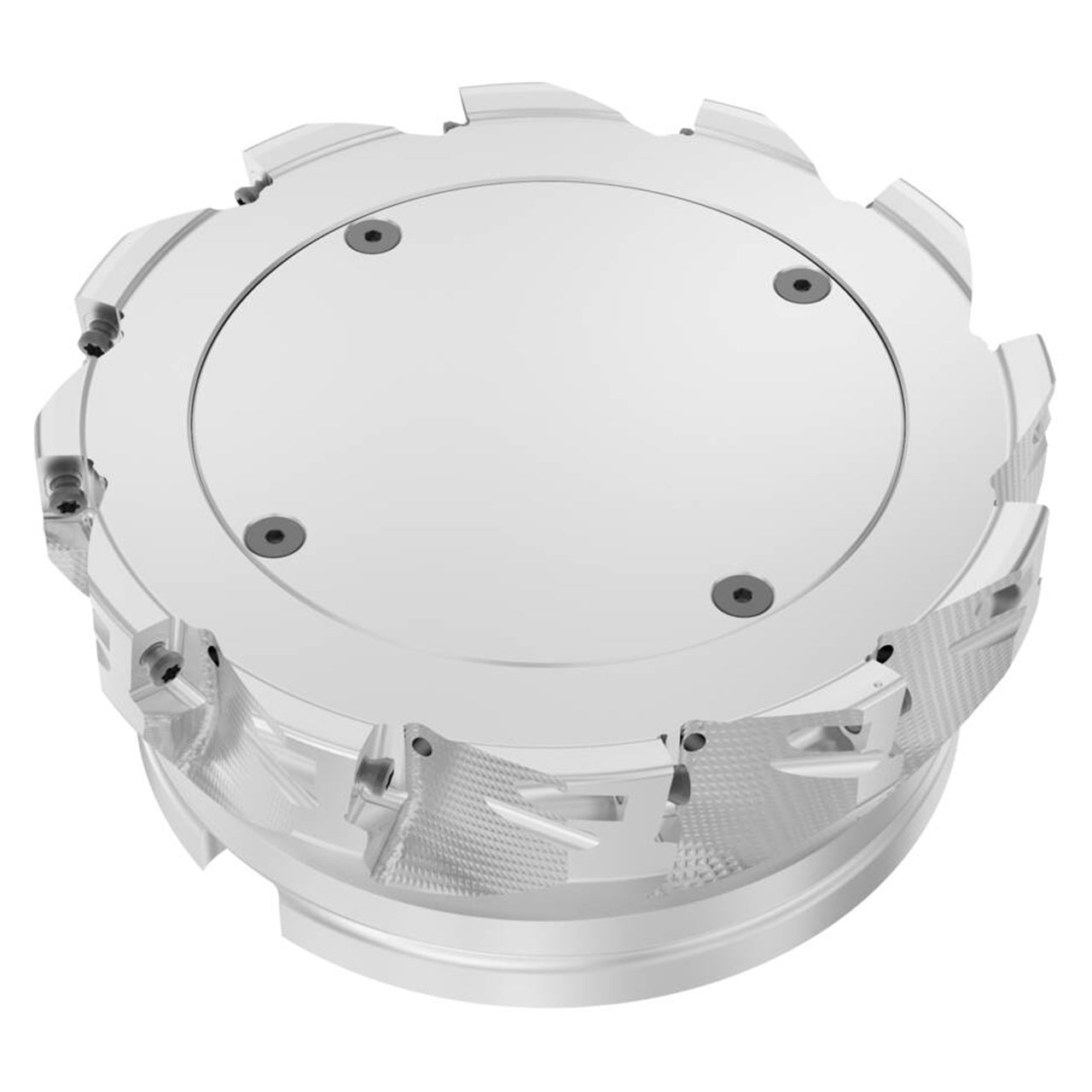

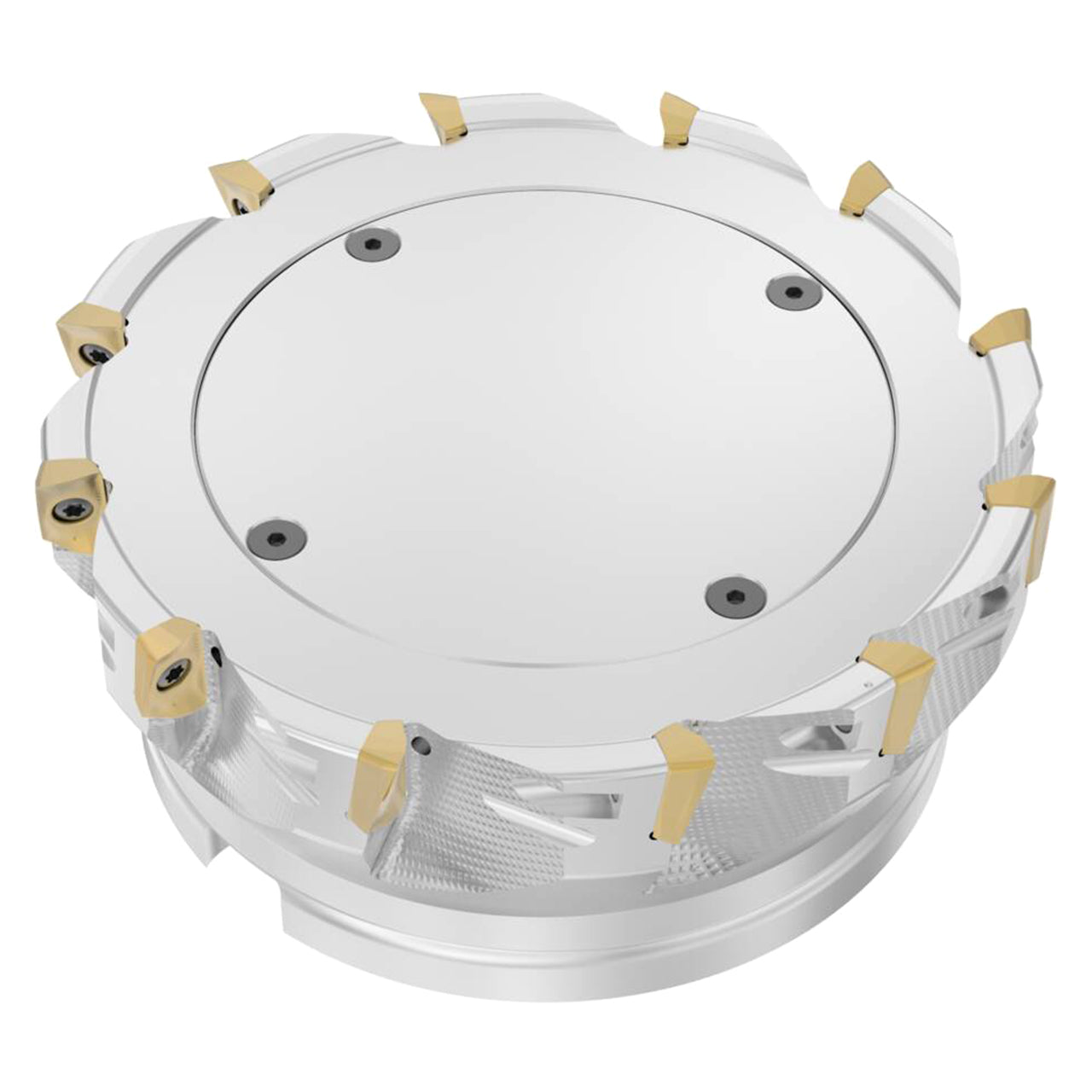

| Product Type | Indexable Square-Shoulder Face Mill |
