Product Specifications
| Manufacturer Part Number | 03336141 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Connection Bore Diameter (Decimal Inch) | 0.500" |
| Connection Bore Diameter (mm) | 12.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.378" |
| Contact Surface Diameter Machine Side (mm) | 35.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.909" |
| Maximum Helical Interpolation Hole Diameter (mm) | 73.90mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.350" |
| Minimum Helical Interpolation Hole Diameter (mm) | 59.70mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Depth of Key Way (Decimal Inch) | 0.165" |
| Depth of Key Way (mm) | 4.20mm |
| Keyway Width (Decimal Inch) | 0.260" |
| Keyway Width (mm) | 6.60mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -7.3 Degree |
| Rake Radial Angle (Degree) | -7.3 Degree |
| Rake Orthogonal Angle (Degree) | -7.3 Degree |
| Axial Rake Angle (Degree) | 9 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 4 Degree |
| Maximum Rotational Speed (rpm) | 13500 rpm |
| Shank Type | Arbor |

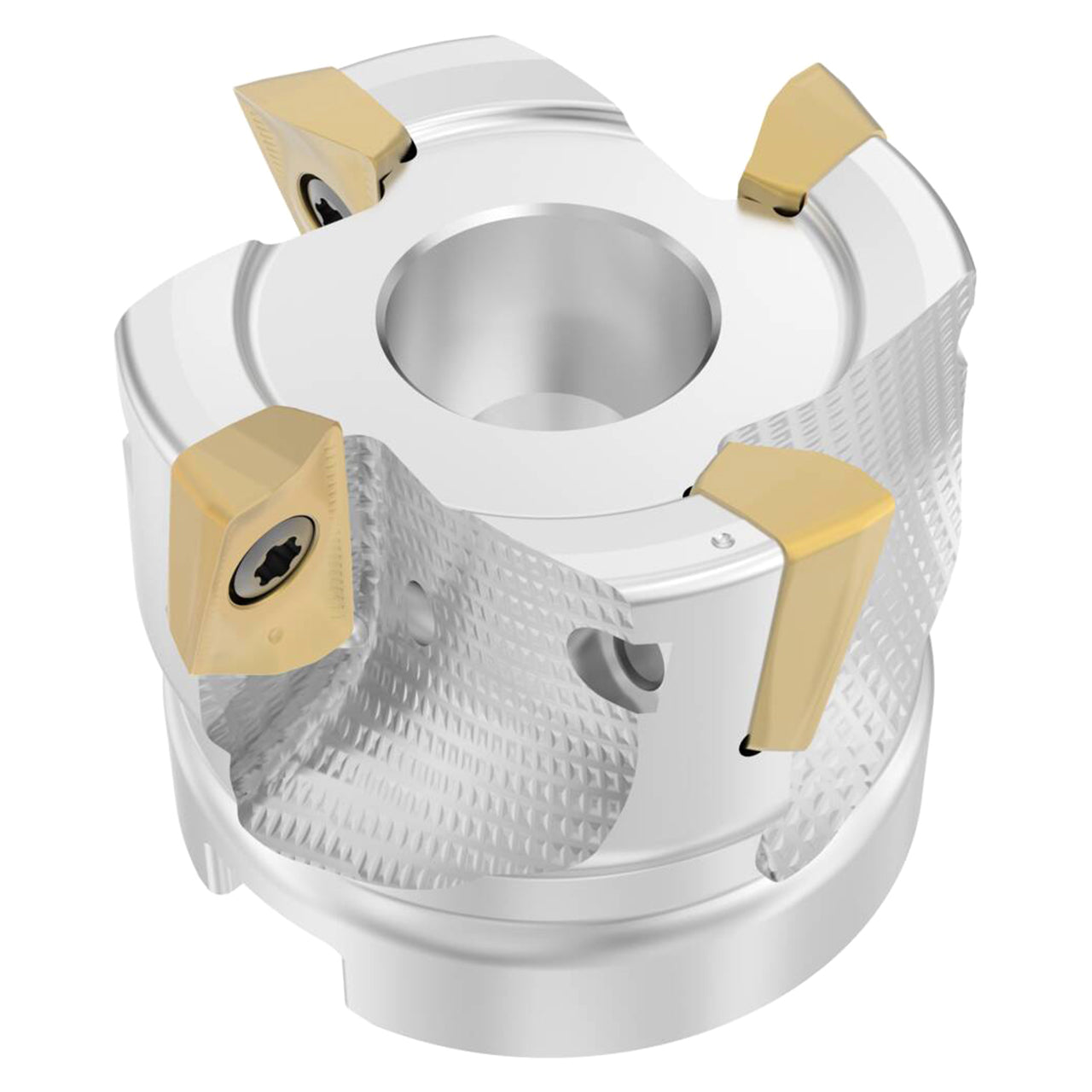

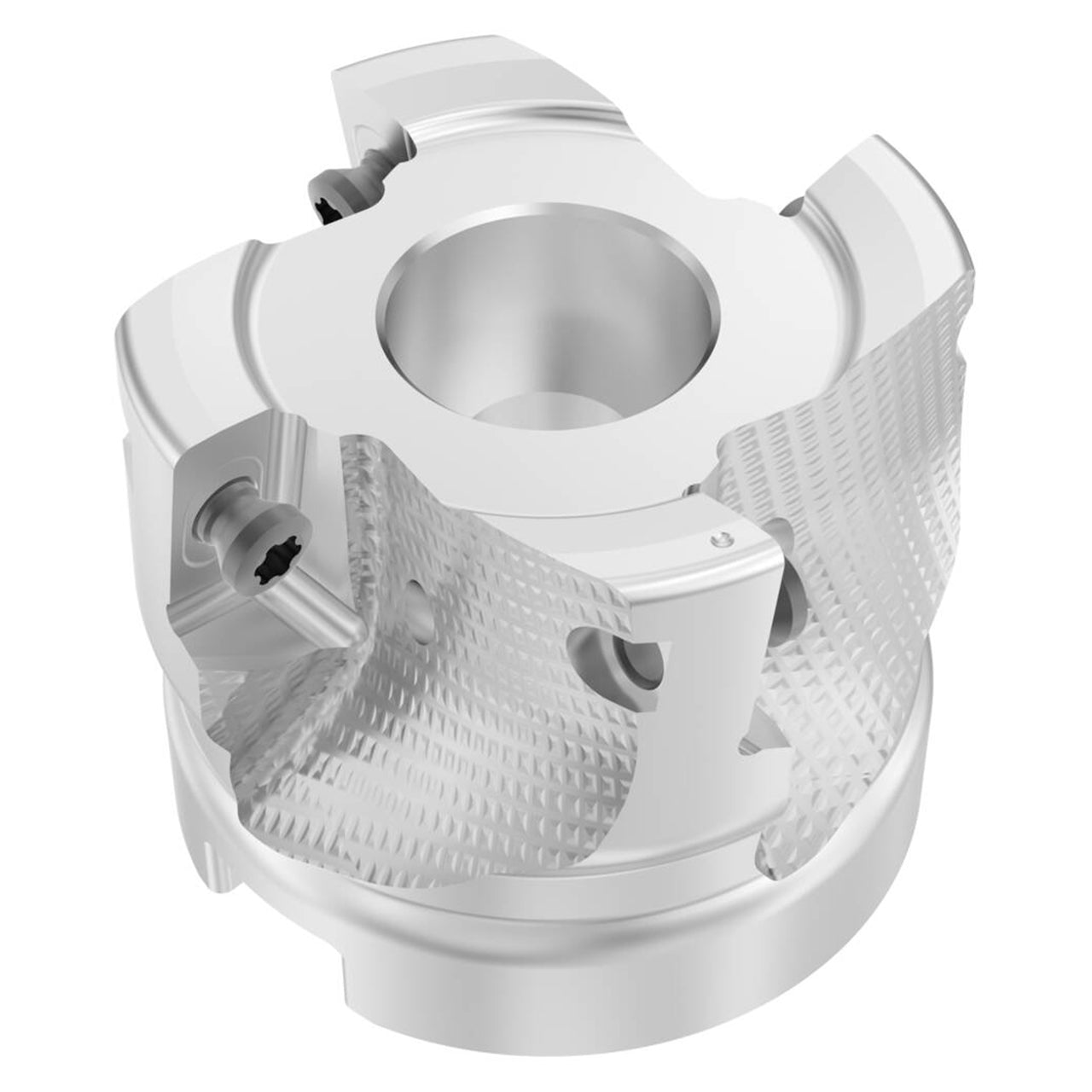

| Product Type | Indexable Square-Shoulder Face Mill |
