Product Specifications
| Manufacturer Part Number | 03336102 |
| Cutting Diameter (mm) | 32.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Shank Diameter (mm) | 32.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 61.70mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 47.50mm |
| Protruding Length (mm) | 135.00mm |
| Shank Length (mm) | 155.00mm |
| Overall Length (mm) | 195.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -7.39 Degree |
| Rake Radial Angle (Degree) | -7.39 Degree |
| Rake Orthogonal Angle (Degree) | -7.39 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 6 Degree |
| Maximum Rotational Speed (rpm) | 14800 rpm |
| Shank Type | Cylindrical |

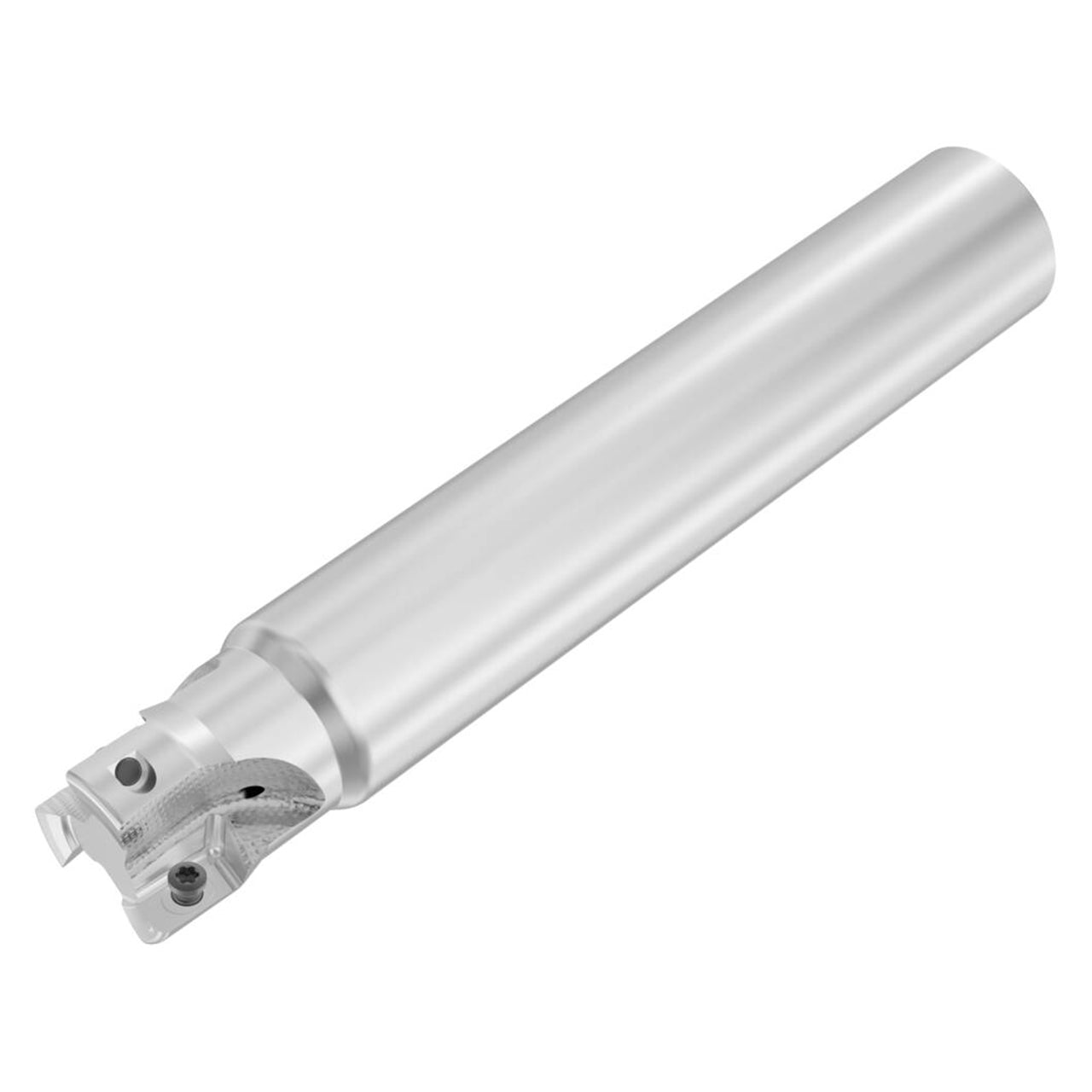

| Product Type | Indexable Square-Shoulder End Mill |
