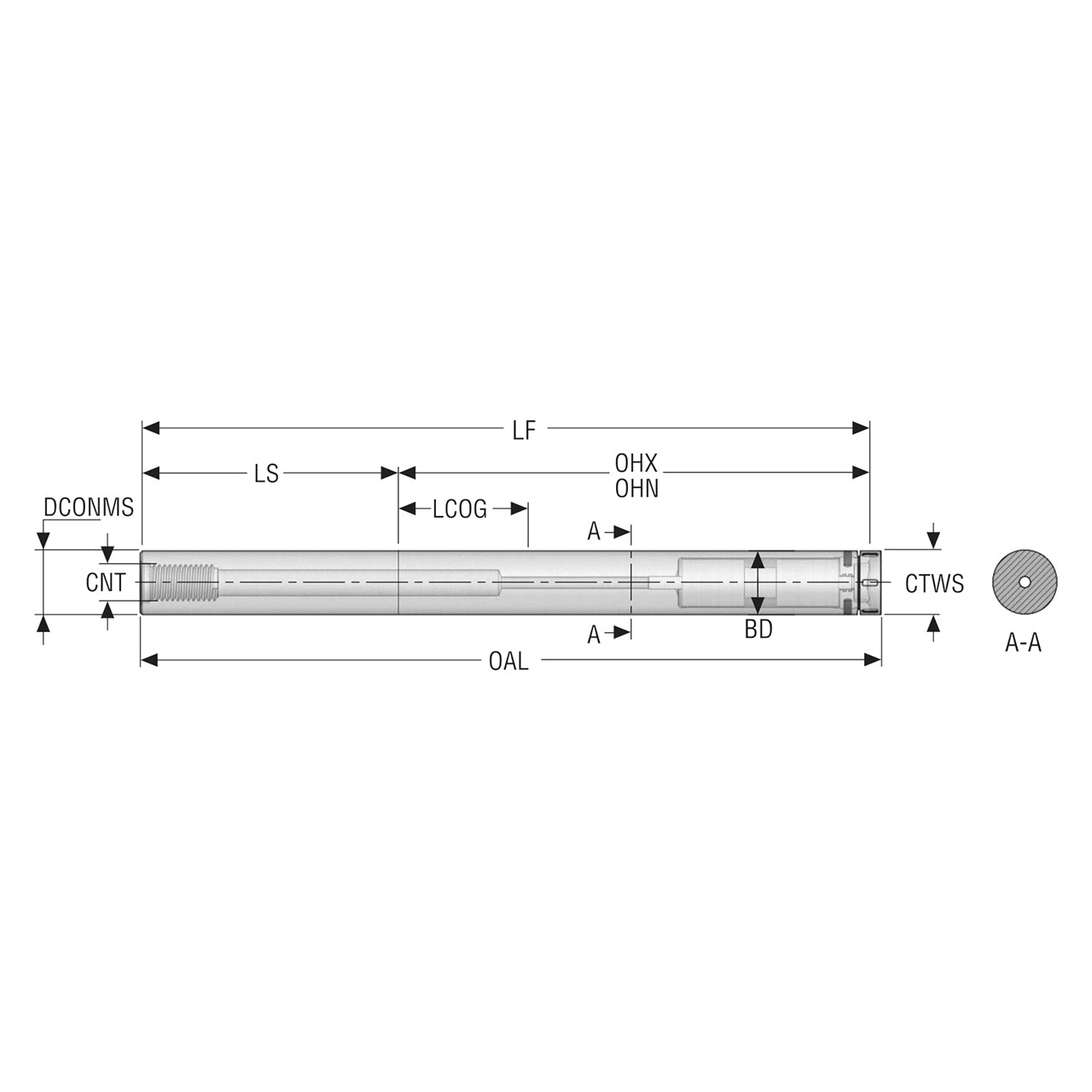

Product Specifications
| Manufacturer Part Number | 03334787 |
| Body Diameter (Decimal Inch) | 1.250" |
| Body Diameter (mm) | 31.75mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Thread Diameter Size | M8x1 |
| Body Length (Decimal Inch) | 11.500" |
| Body Length (mm) | 292.10mm |
| Functional Length (Decimal Inch) | 15.25" |
| Functional Length (mm) | 387.35mm |
| Shank Length (Decimal Inch) | 3.750" |
| Shank Length (mm) | 95.25mm |
| Overall Length (Decimal Inch) | 15.463" |
| Overall Length (mm) | 392.75mm |
| Coolant Entry Thread Size | M8x1 |

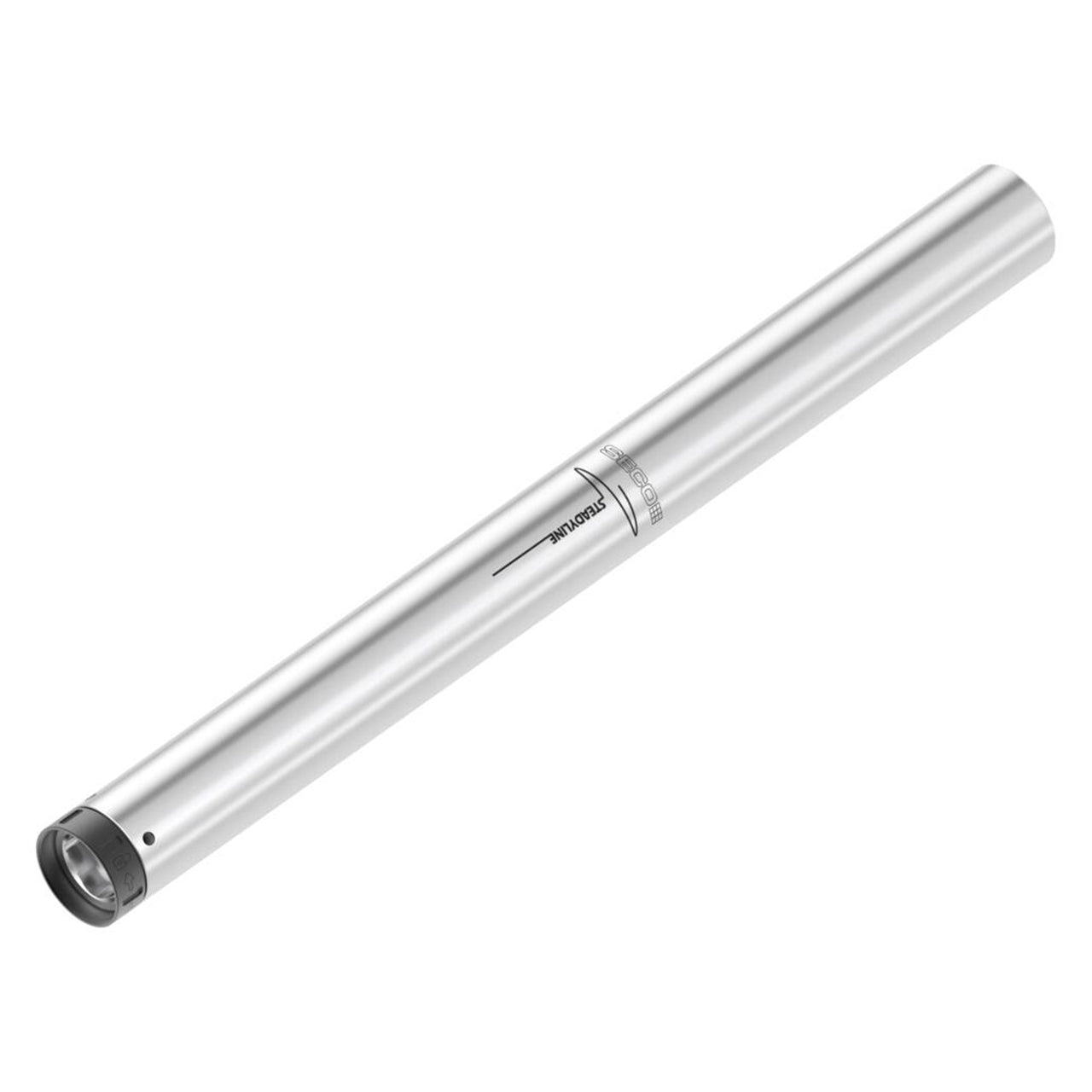

| Product Type | Collet Chuck Extension |
