Product Specifications
| Manufacturer Part Number | 03331395 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 7.677" |
| Minimum Cutting Diameter Internal 3 (mm) | 195.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (Decimal Inch) | 2.953" |
| Functional Length (mm) | 75.00mm |
| Cutting Width (Decimal Inch) | 0.236" |
| Cutting Width (mm) | 6.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.709" |
| Maximum Cutting Depth (mm) | 18.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Left Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Data Chip Provision | 1 |
| Insert Clamping System | C |
| Shank Type | Seco-Capto |

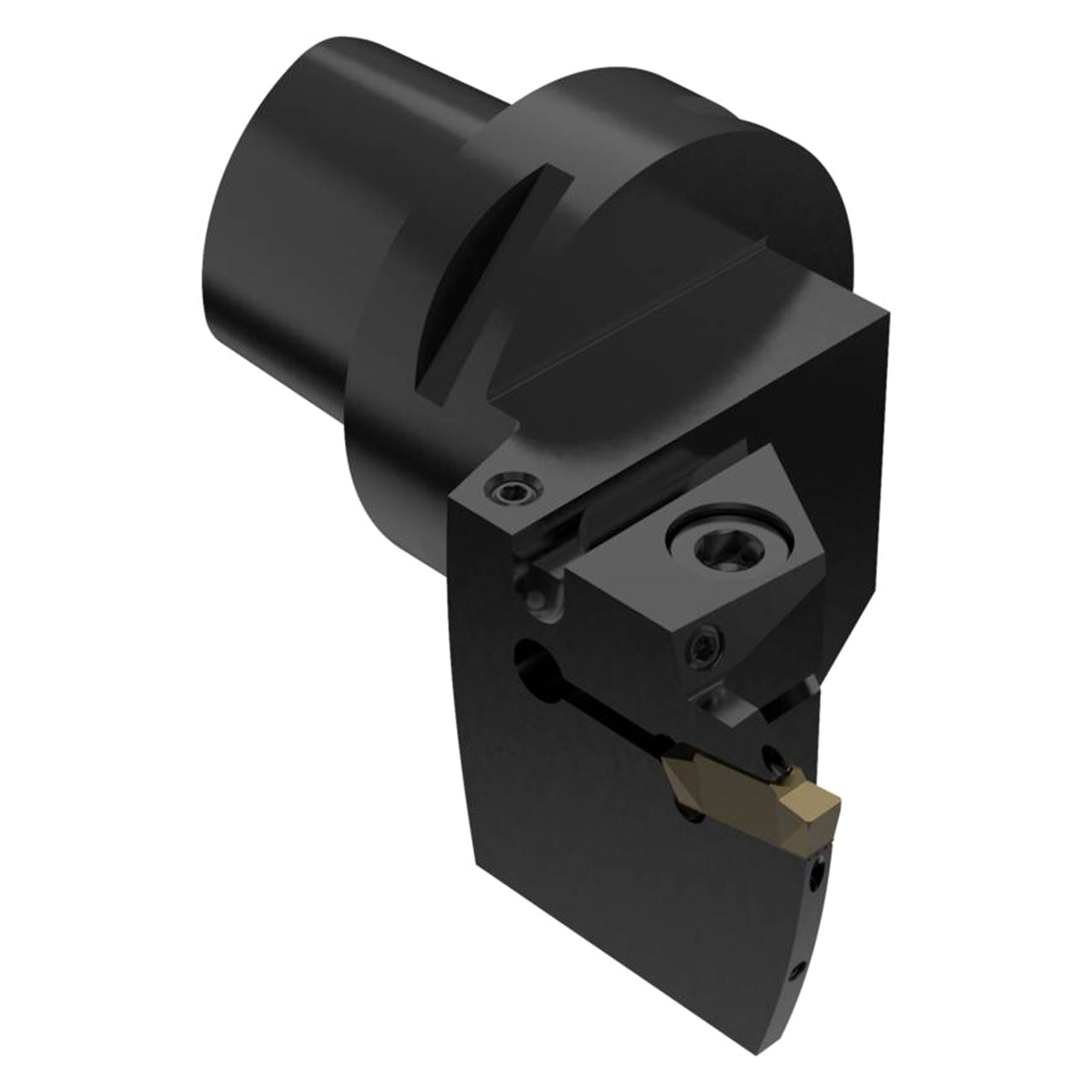

| Product Type | Modular Grooving Head |
