Product Specifications
| Manufacturer Part Number | 03310397 |

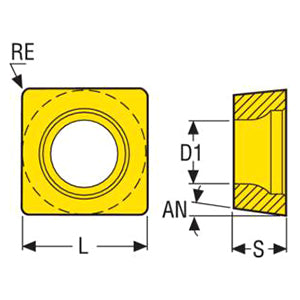

| Fixing Hole Diameter (Decimal Inch) | 0.343" |
| Fixing Hole Diameter (mm) | 8.70mm |
| Inscribed Circle Diameter (Decimal Inch) | 1.500" |
| Inscribed Circle Diameter (mm) | 38.10mm |
| Cutting Edge Effective Length (Decimal Inch) | 1.374" |
| Cutting Edge Effective Length (mm) | 34.90mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 1.500" |
| Theoretical Cutting Edge Length (mm) | 38.10mm |
| Corner Radius (Decimal Inch) | 0.126" |
| Corner Radius (mm) | 3.20mm |
| Insert Thickness (Decimal Inch) | 0.375" |
| Insert Thickness (mm) | 9.52mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Included Angle (Degree) | 90 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | SC3809 |
| Insert Shape Code | S |
| Material | Carbide |

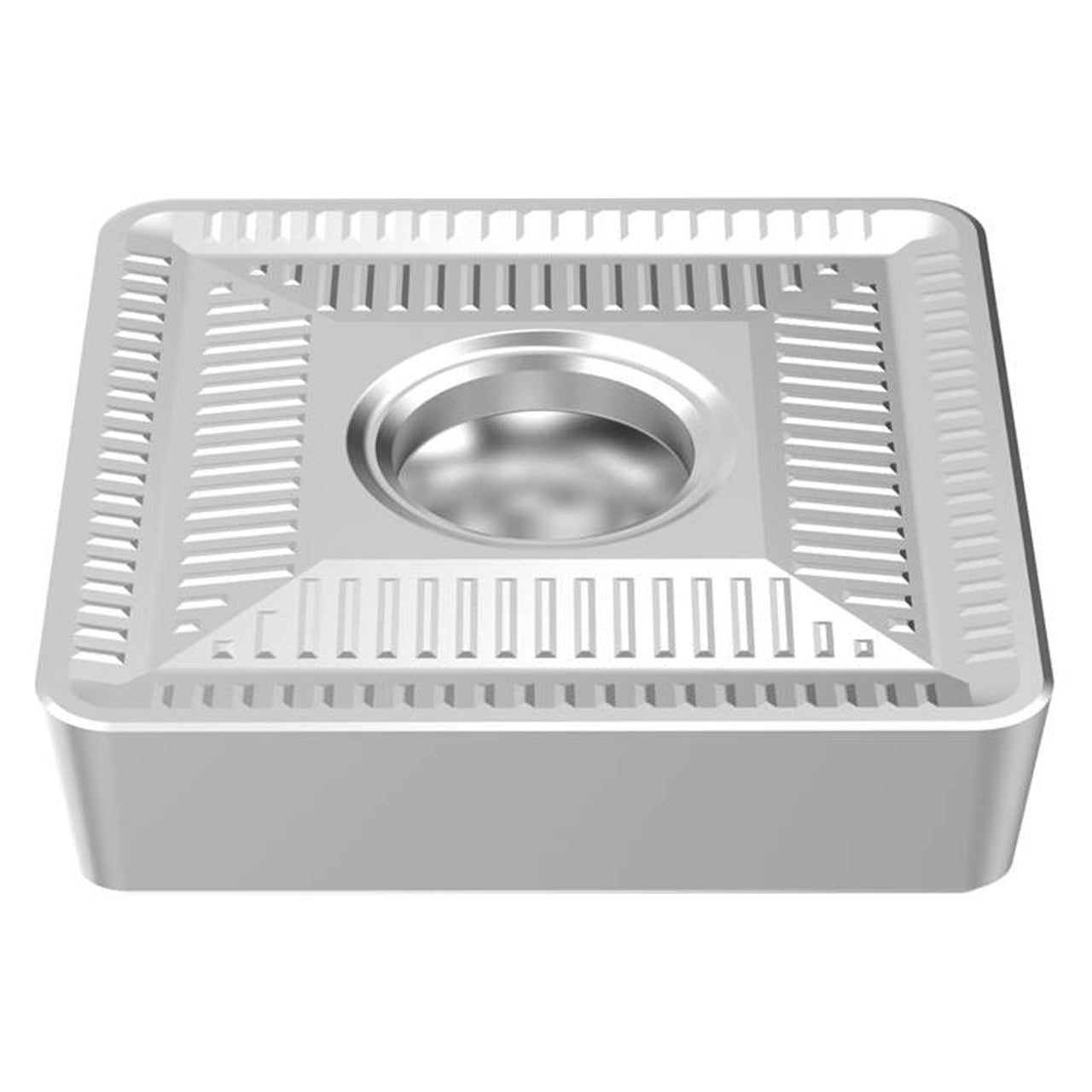

| Product Type | Turning Insert |
