Product Specifications
| Manufacturer Part Number | 03310340 |

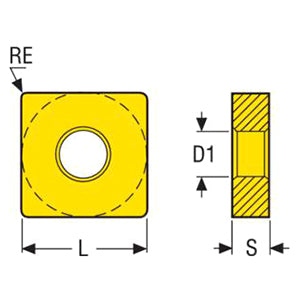

| Fixing Hole Diameter (Decimal Inch) | 0.250" |
| Fixing Hole Diameter (mm) | 6.35mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.625" |
| Inscribed Circle Diameter (mm) | 15.88mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.563" |
| Cutting Edge Effective Length (mm) | 14.30mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.625" |
| Theoretical Cutting Edge Length (mm) | 15.88mm |
| Corner Radius (Decimal Inch) | 0.063" |
| Corner Radius (mm) | 1.60mm |
| Insert Thickness (Decimal Inch) | 0.250" |
| Insert Thickness (mm) | 6.35mm |
| Cutting Edge Count | 8 |
| Insert Included Angle (Degree) | 90 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | SN1506 |
| Insert Shape Code | S |
| Material | Carbide |

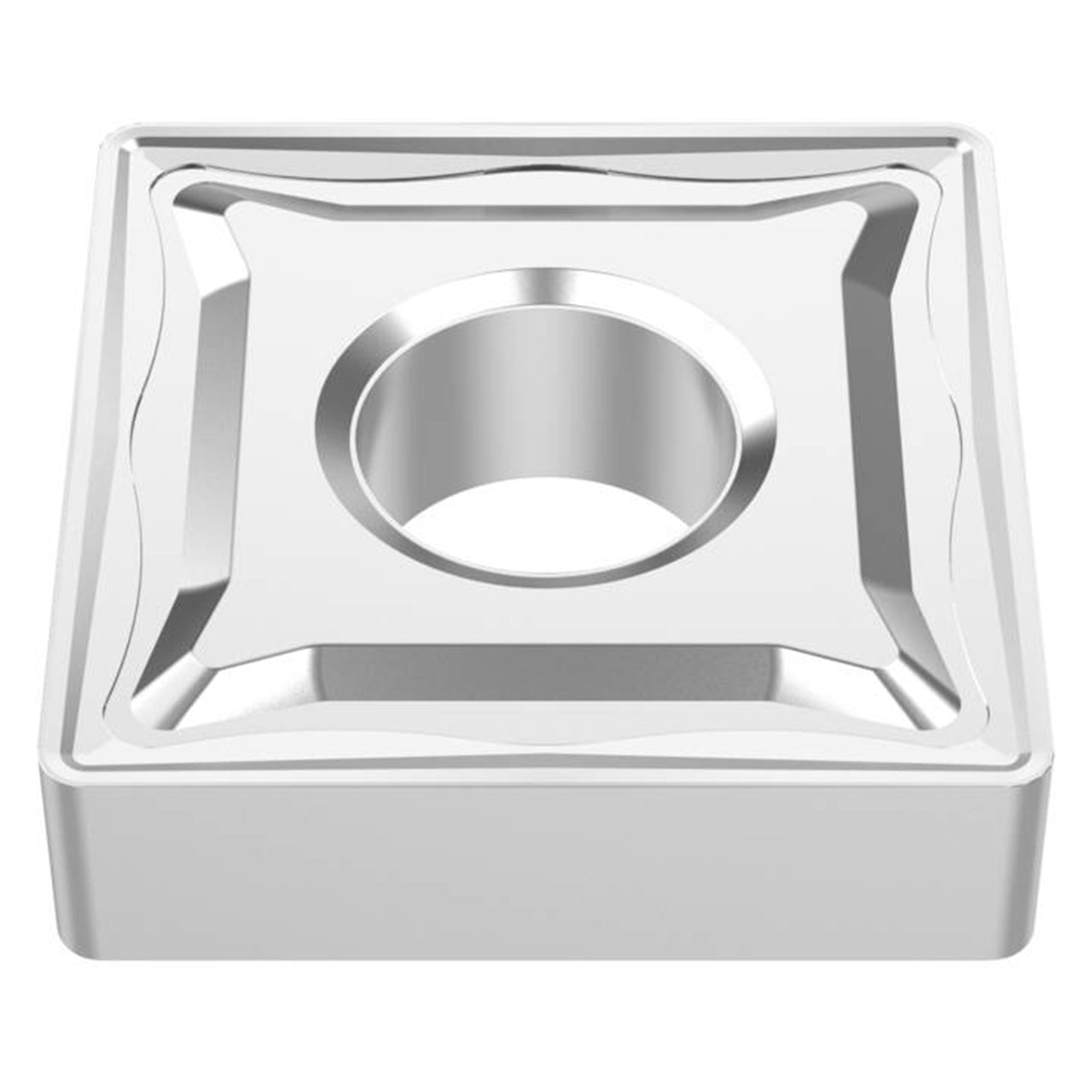

| Product Type | Turning Insert |
