Product Specifications

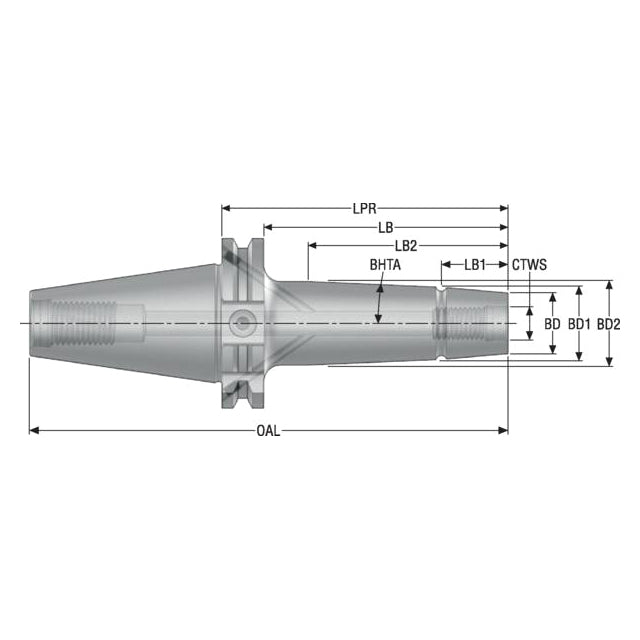

| Manufacturer Part Number | 03308046 |
| Body Diameter (Decimal Inch) | 1.437" |
| Body Diameter (mm) | 36.50mm |
| Body Diameter 1 (Decimal Inch) | 1.457" |
| Body Diameter 1 (mm) | 37.00mm |
| Body Diameter 2 (Decimal Inch) | 2.677" |
| Body Diameter 2 (mm) | 68.00mm |
| Body Length (Decimal Inch) | 10.862" |
| Body Length (mm) | 275.90mm |
| Body Length 1 (Decimal Inch) | 1.378" |
| Body Length 1 (mm) | 35.00mm |
| Body Length 2 (Decimal Inch) | 9.843" |
| Body Length 2 (mm) | 250.00mm |
| Protruding Length (Decimal Inch) | 11.614" |
| Protruding Length (mm) | 295.00mm |
| Overall Length (Decimal Inch) | 15.620" |
| Overall Length (mm) | 396.75mm |
| Body Half Taper Angle Degree) | 46 Degree |
| Data Chip Provision | 1 |

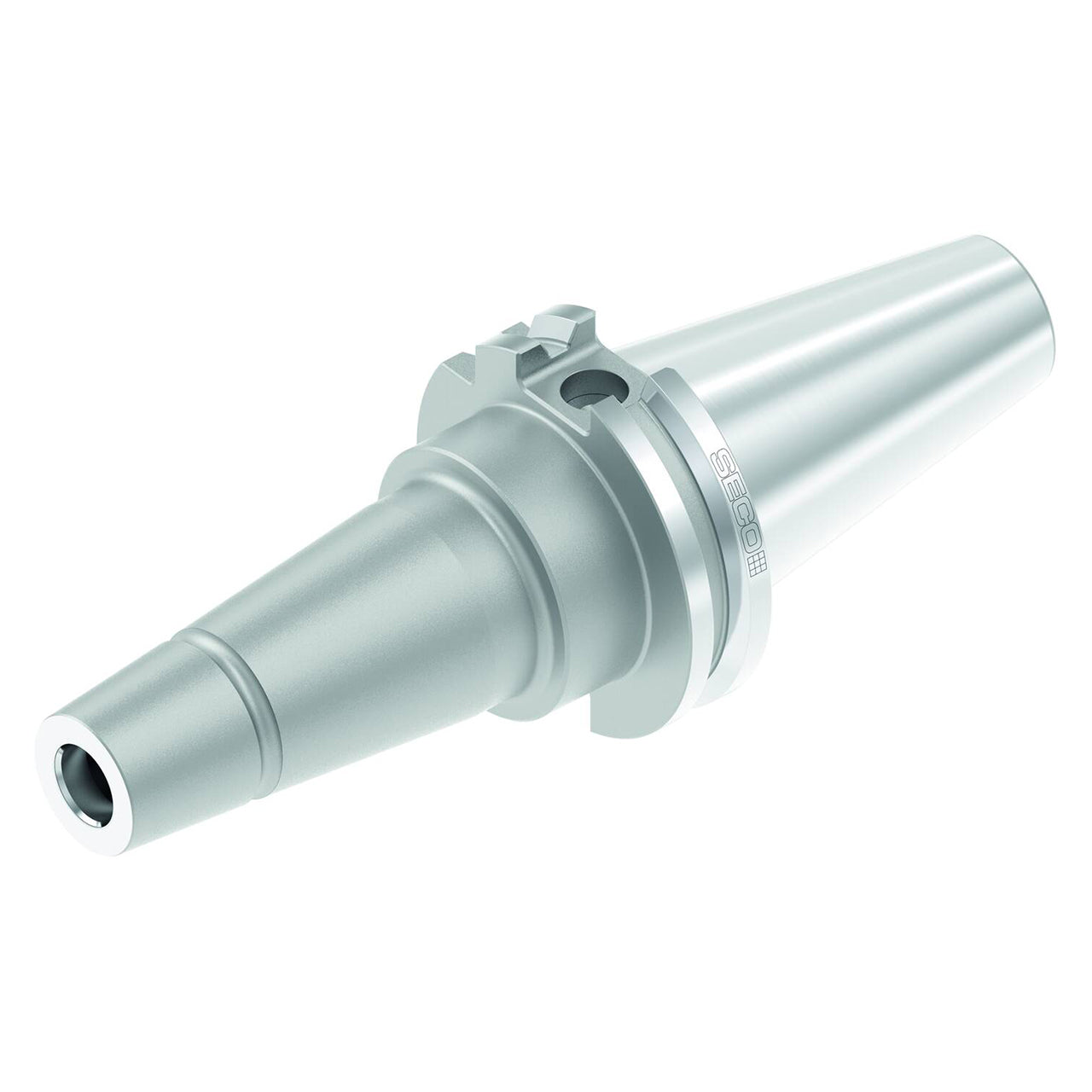

| Product Type | End Mill Adapter |
