Product Specifications

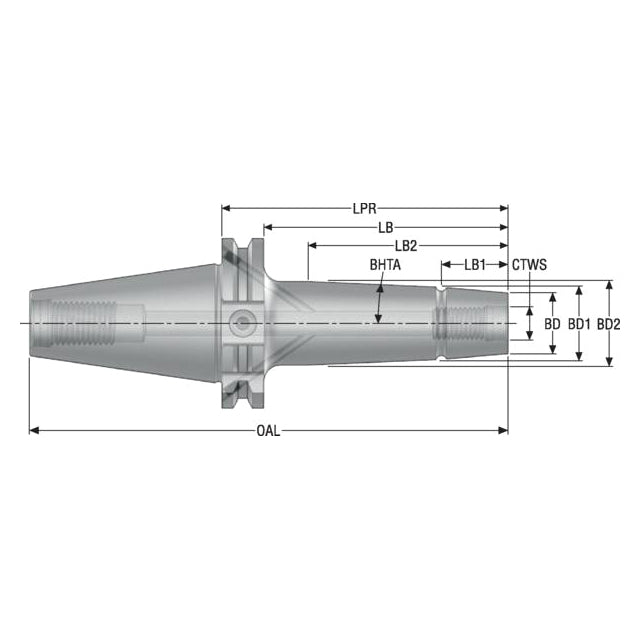

| Manufacturer Part Number | 03308039 |
| Body Diameter (Decimal Inch) | 1.437" |
| Body Diameter (mm) | 36.50mm |
| Body Diameter 1 (Decimal Inch) | 1.457" |
| Body Diameter 1 (mm) | 37.00mm |
| Body Diameter 2 (Decimal Inch) | 1.732" |
| Body Diameter 2 (mm) | 44.00mm |
| Body Length (Decimal Inch) | 1.610" |
| Body Length (mm) | 40.90mm |
| Body Length 1 (Decimal Inch) | 0.394" |
| Body Length 1 (mm) | 10.00mm |
| Body Length 2 (Decimal Inch) | 0.984" |
| Body Length 2 (mm) | 25.00mm |
| Protruding Length (Decimal Inch) | 2.362" |
| Protruding Length (mm) | 60.00mm |
| Overall Length (Decimal Inch) | 5.055" |
| Overall Length (mm) | 128.40mm |
| Body Half Taper Angle Degree) | 12.23 Degree |
| Data Chip Provision | 1 |

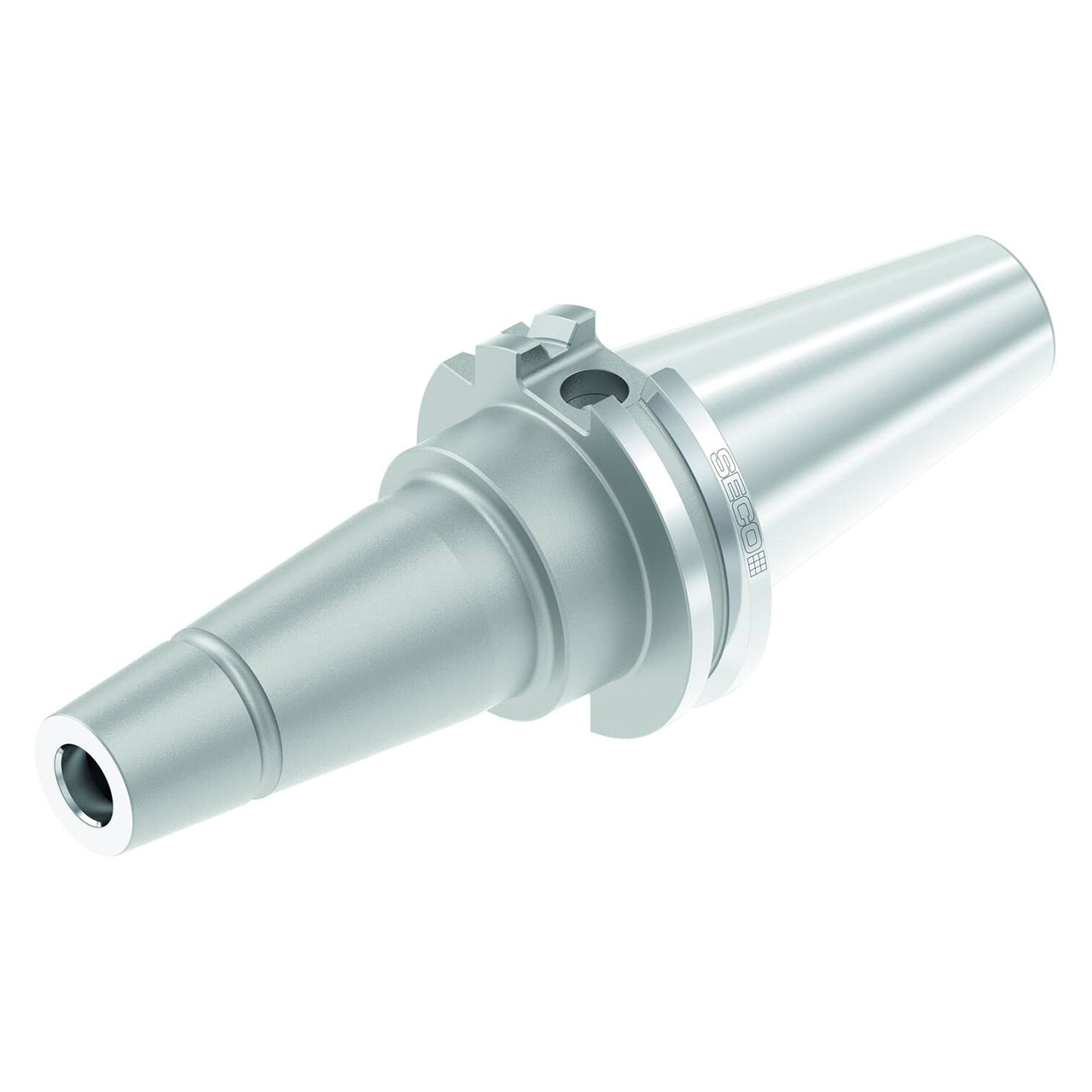

| Product Type | End Mill Adapter |
