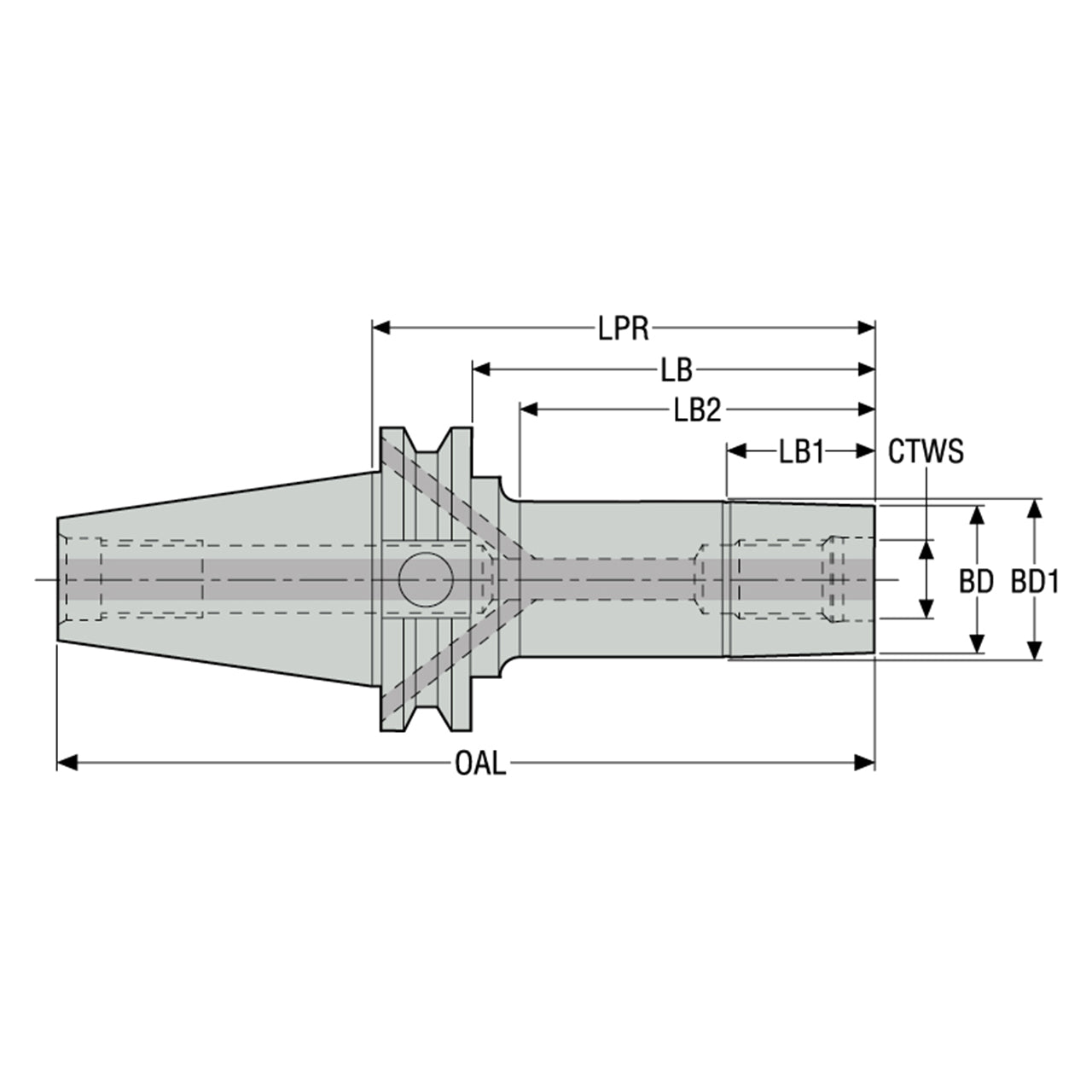

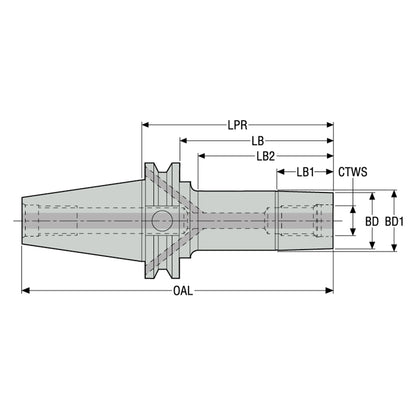

Product Specifications
| Manufacturer Part Number | 03308034 |
| Body Diameter (Decimal Inch) | 1.437" |
| Body Diameter (mm) | 36.50mm |
| Body Diameter 1 (Decimal Inch) | 1.457" |
| Body Diameter 1 (mm) | 37.00mm |
| Body Length (Decimal Inch) | 4.957" |
| Body Length (mm) | 125.90mm |
| Body Length 1 (Decimal Inch) | 1.181" |
| Body Length 1 (mm) | 30.00mm |
| Body Length 2 (Decimal Inch) | 3.937" |
| Body Length 2 (mm) | 100.00mm |
| Protruding Length (Decimal Inch) | 5.709" |
| Protruding Length (mm) | 145.00mm |
| Overall Length (Decimal Inch) | 9.705" |
| Overall Length (mm) | 246.50mm |
| Data Chip Provision | 1 |

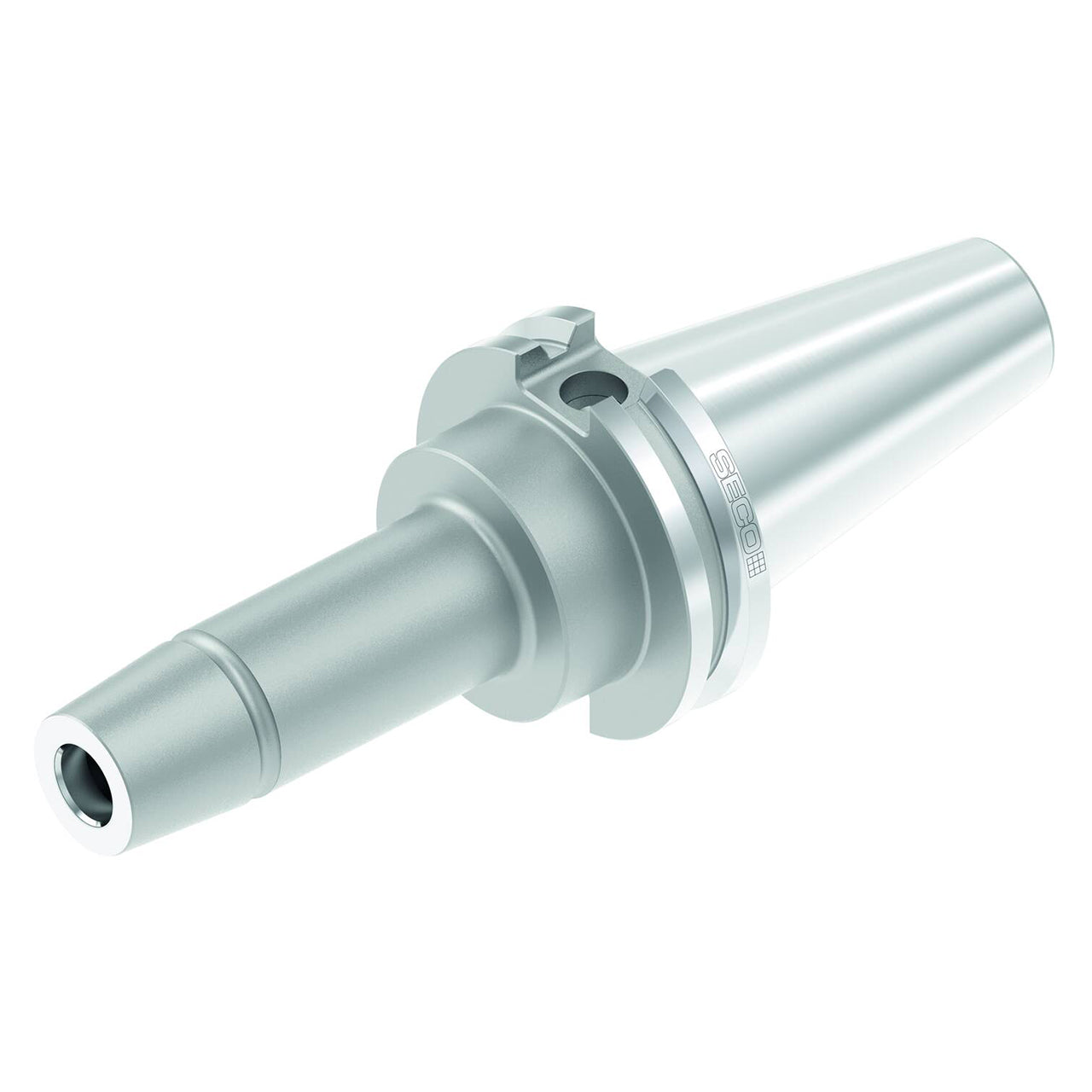

| Product Type | End Mill Holder |
