Product Specifications

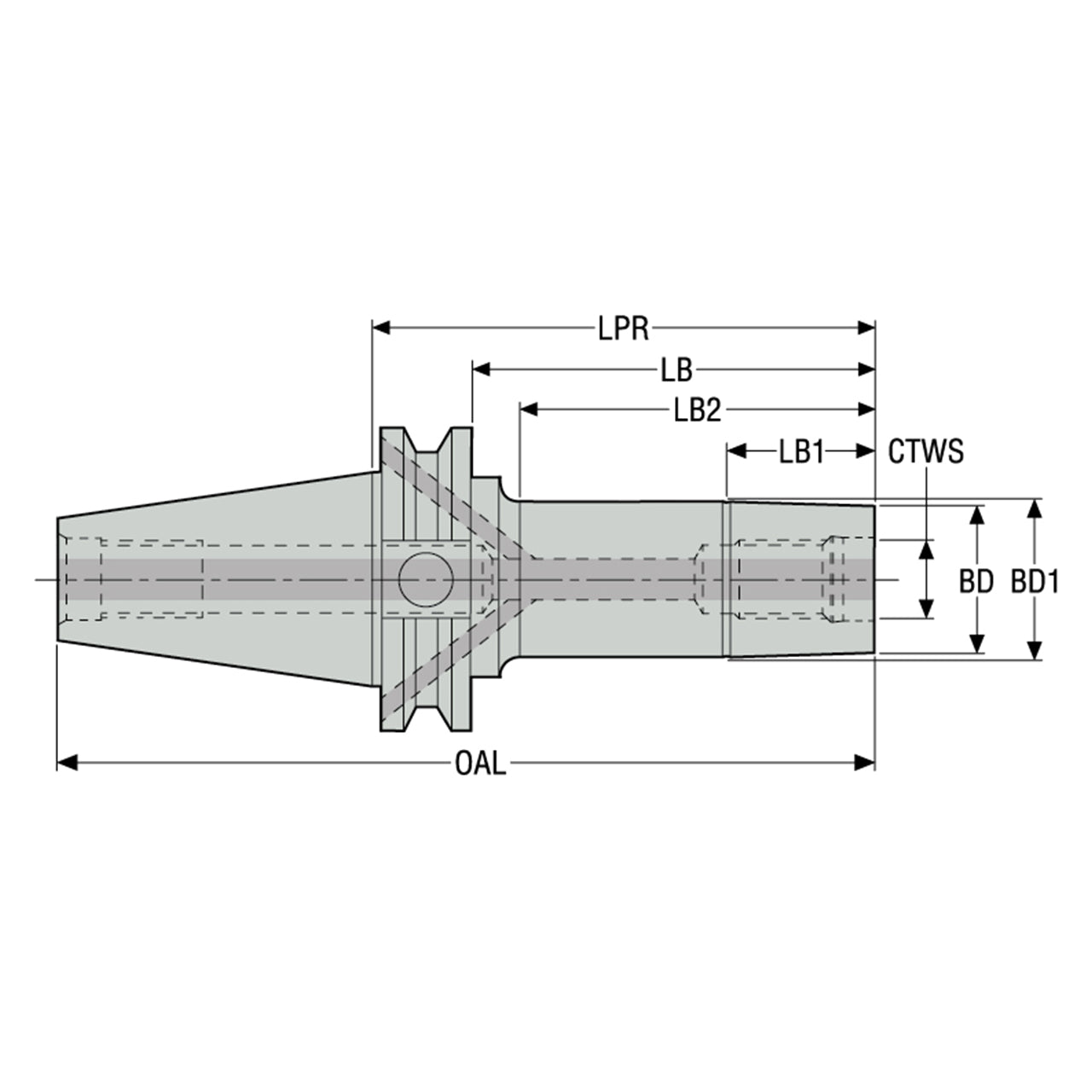

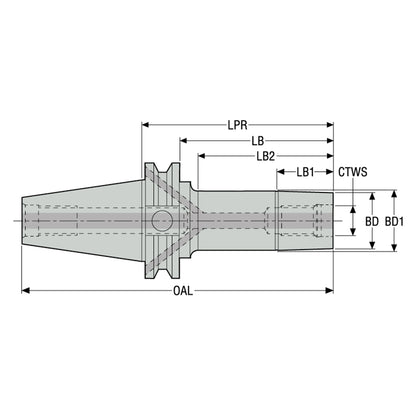

| Manufacturer Part Number | 03308033 |
| Body Diameter (Decimal Inch) | 1.437" |
| Body Diameter (mm) | 36.50mm |
| Body Diameter 1 (Decimal Inch) | 1.457" |
| Body Diameter 1 (mm) | 37.00mm |
| Body Length (Decimal Inch) | 2.988" |
| Body Length (mm) | 75.89mm |
| Body Length 1 (Decimal Inch) | 0.787" |
| Body Length 1 (mm) | 20.00mm |
| Body Length 2 (Decimal Inch) | 1.969" |
| Body Length 2 (mm) | 50.00mm |
| Protruding Length (Decimal Inch) | 3.740" |
| Protruding Length (mm) | 95.00mm |
| Overall Length (Decimal Inch) | 7.746" |
| Overall Length (mm) | 196.75mm |
| Data Chip Provision | 1 |

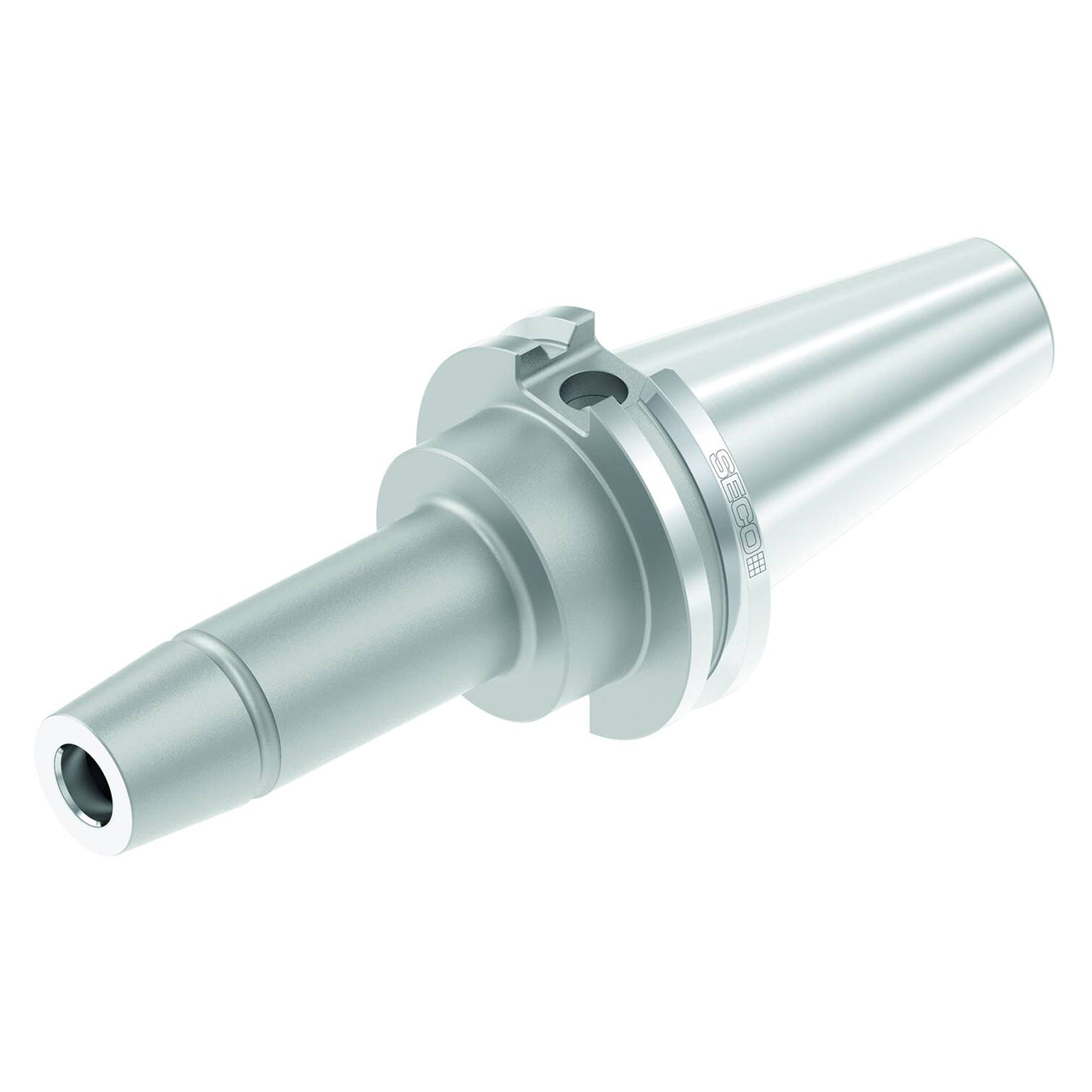

| Product Type | End Mill Holder |
