Product Specifications

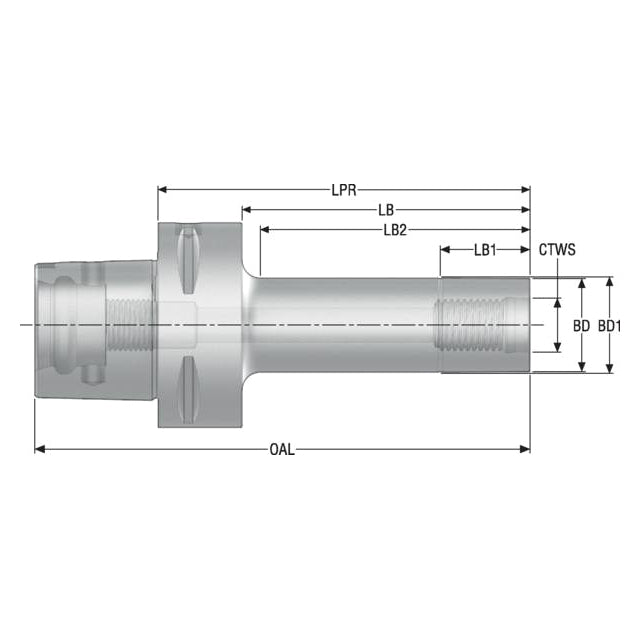

| Manufacturer Part Number | 03308023 |
| Body Diameter (Decimal Inch) | 1.181" |
| Body Diameter (mm) | 30.00mm |
| Body Diameter 1 (Decimal Inch) | 1.201" |
| Body Diameter 1 (mm) | 30.50mm |
| Body Length (Decimal Inch) | 3.347" |
| Body Length (mm) | 85.00mm |
| Body Length 1 (Decimal Inch) | 0.984" |
| Body Length 1 (mm) | 25.00mm |
| Body Length 2 (Decimal Inch) | 3.150" |
| Body Length 2 (mm) | 80.00mm |
| Protruding Length (Decimal Inch) | 4.331" |
| Protruding Length (mm) | 110.00mm |
| Overall Length (Decimal Inch) | 5.827" |
| Overall Length (mm) | 148.00mm |
| Data Chip Provision | 1 |

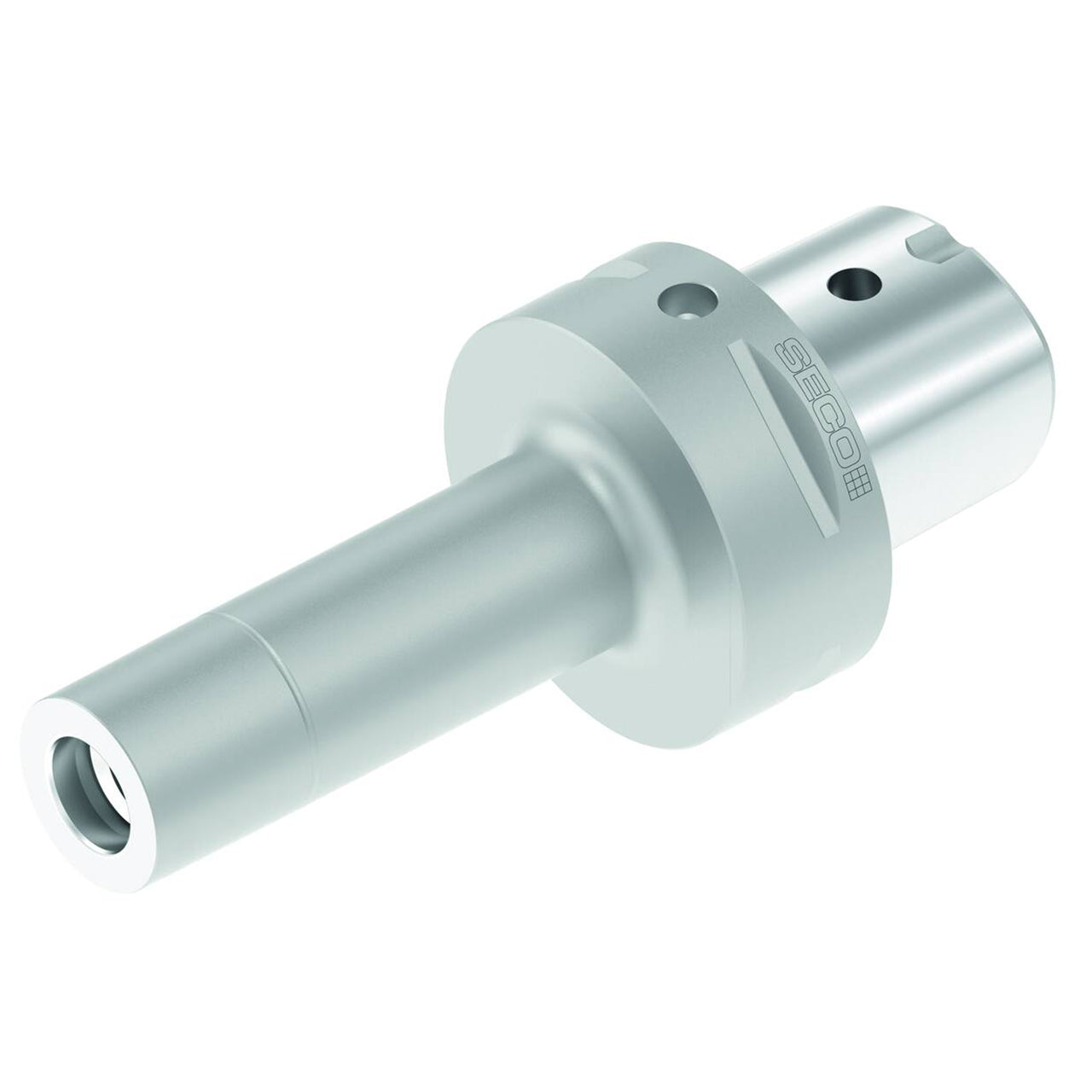

| Product Type | End Mill Adapter |
