Product Specifications
| Manufacturer Part Number | 03308018 |
| Body Diameter (Decimal Inch) | 1.437" |
| Body Diameter (mm) | 36.50mm |
| Body Diameter 1 (Decimal Inch) | 1.457" |
| Body Diameter 1 (mm) | 37.00mm |
| Body Length (Decimal Inch) | 5.787" |
| Body Length (mm) | 147.00mm |
| Body Length 1 (Decimal Inch) | 1.221" |
| Body Length 1 (mm) | 31.00mm |
| Body Length 2 (Decimal Inch) | 5.591" |
| Body Length 2 (mm) | 142.00mm |
| Protruding Length (Decimal Inch) | 7.284" |
| Protruding Length (mm) | 185.00mm |
| Overall Length (Decimal Inch) | 11.291" |
| Overall Length (mm) | 286.80mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 9000 rpm |

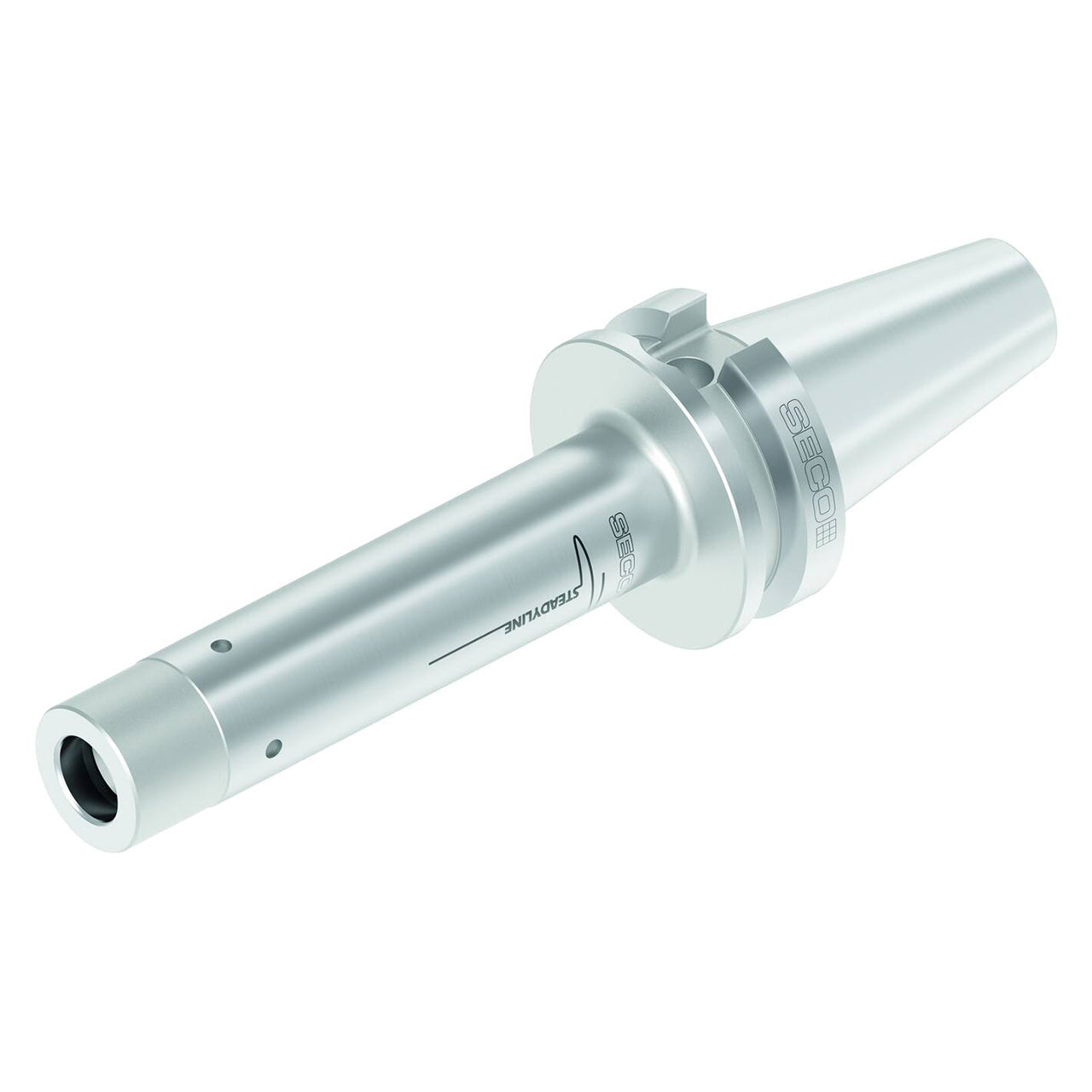

| Product Type | End Mill Adapter |
