Product Specifications

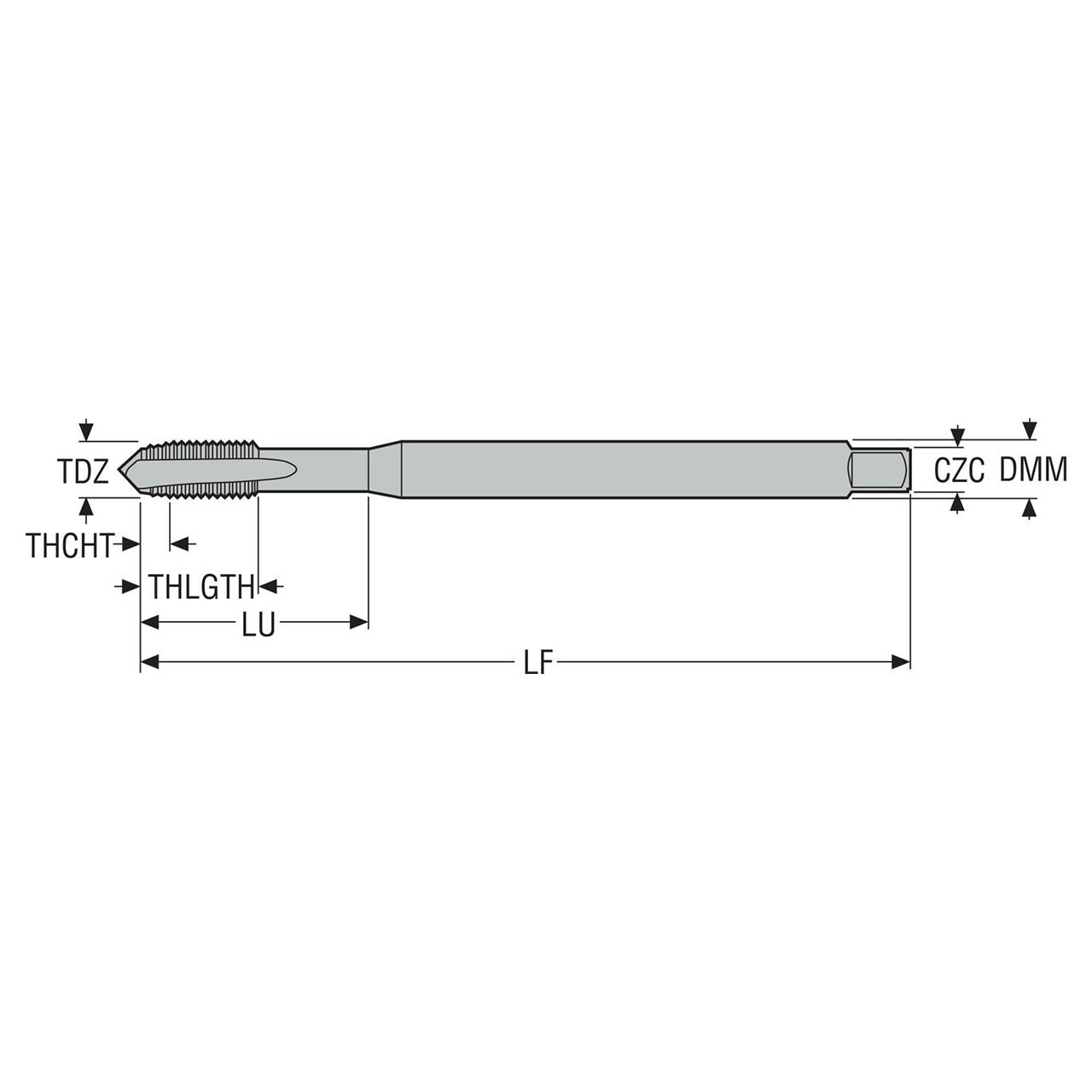

| Manufacturer Part Number | 03305485 |
| Thread Diameter (Decimal Inch) | 0.625" |
| Thread Diameter (mm) | 15.88mm |
| Threading Chamfer Length (Decimal Inch) | 0.250" |
| Threading Chamfer Length (mm) | 6.35mm |
| Tap Chamfer Length (Decimal Inch) | 0.250" |
| Tap Chamfer Length (mm) | 6.35mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.472" |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Functional Length (Decimal Inch) | 4.081" |
| Functional Length (mm) | 103.65mm |
| Usable Length (Decimal Inch) | 2.587" |
| Usable Length (mm) | 65.70mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.906" |
| Thread Length (mm) | 23.00mm |
| Thread Diameter Size | UNC5/8-11 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.532" |
| Recommended Premachined Hole Diameter (mm) | 13.50mm |
| Connection Size Code | 12.25X9.00 |
| Connection Size Code Machine Side | 12.25X9.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.546" |
| Maximum Premachined Hole Diameter (mm) | 13.87mm |
| Minimum Threads Per Inch (mm) | 11.00mm |
| Maximum Threads Per Inch (mm) | 11.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-K |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E-PM |
| Coating | TIALN |

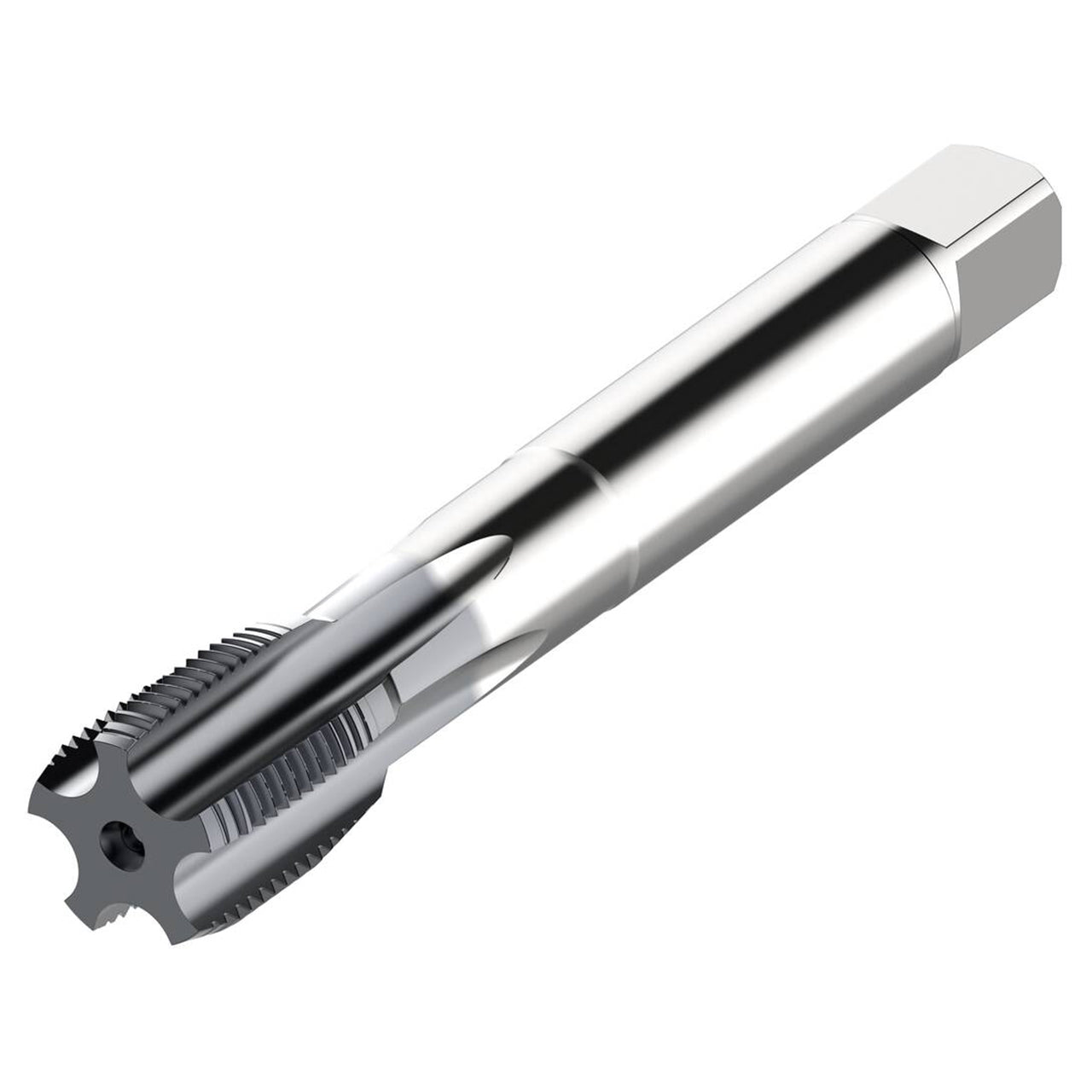

| Product Type | Straight Flute Tap |
