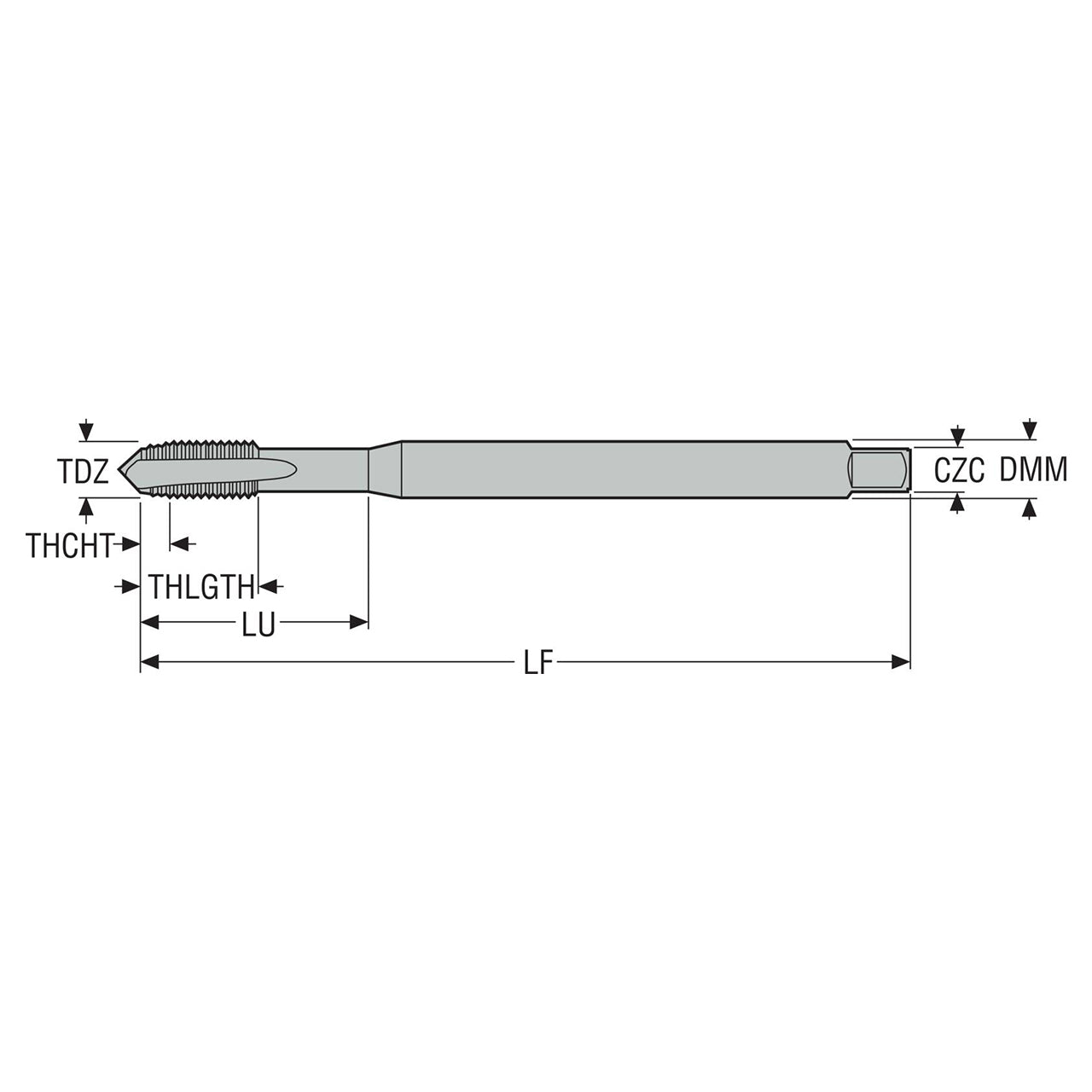

Product Specifications
| Manufacturer Part Number | 03305482 |
| Thread Diameter (Decimal Inch) | 0.375" |
| Thread Diameter (mm) | 9.53mm |
| Threading Chamfer Length (Decimal Inch) | 0.172" |
| Threading Chamfer Length (mm) | 4.37mm |
| Tap Chamfer Length (Decimal Inch) | 0.172" |
| Tap Chamfer Length (mm) | 4.37mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.394" |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Functional Length (Decimal Inch) | 3.765" |
| Functional Length (mm) | 95.63mm |
| Usable Length (Decimal Inch) | 1.496" |
| Usable Length (mm) | 38.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.811" |
| Thread Length (mm) | 20.60mm |
| Thread Diameter Size | UNC3/8-16 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.315" |
| Recommended Premachined Hole Diameter (mm) | 8.00mm |
| Connection Size Code | 11.25X8.00 |
| Connection Size Code Machine Side | 11.25X8.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.321" |
| Maximum Premachined Hole Diameter (mm) | 8.16mm |
| Minimum Threads Per Inch (mm) | 16.00mm |
| Maximum Threads Per Inch (mm) | 16.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-K |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E-PM |
| Coating | TIALN |

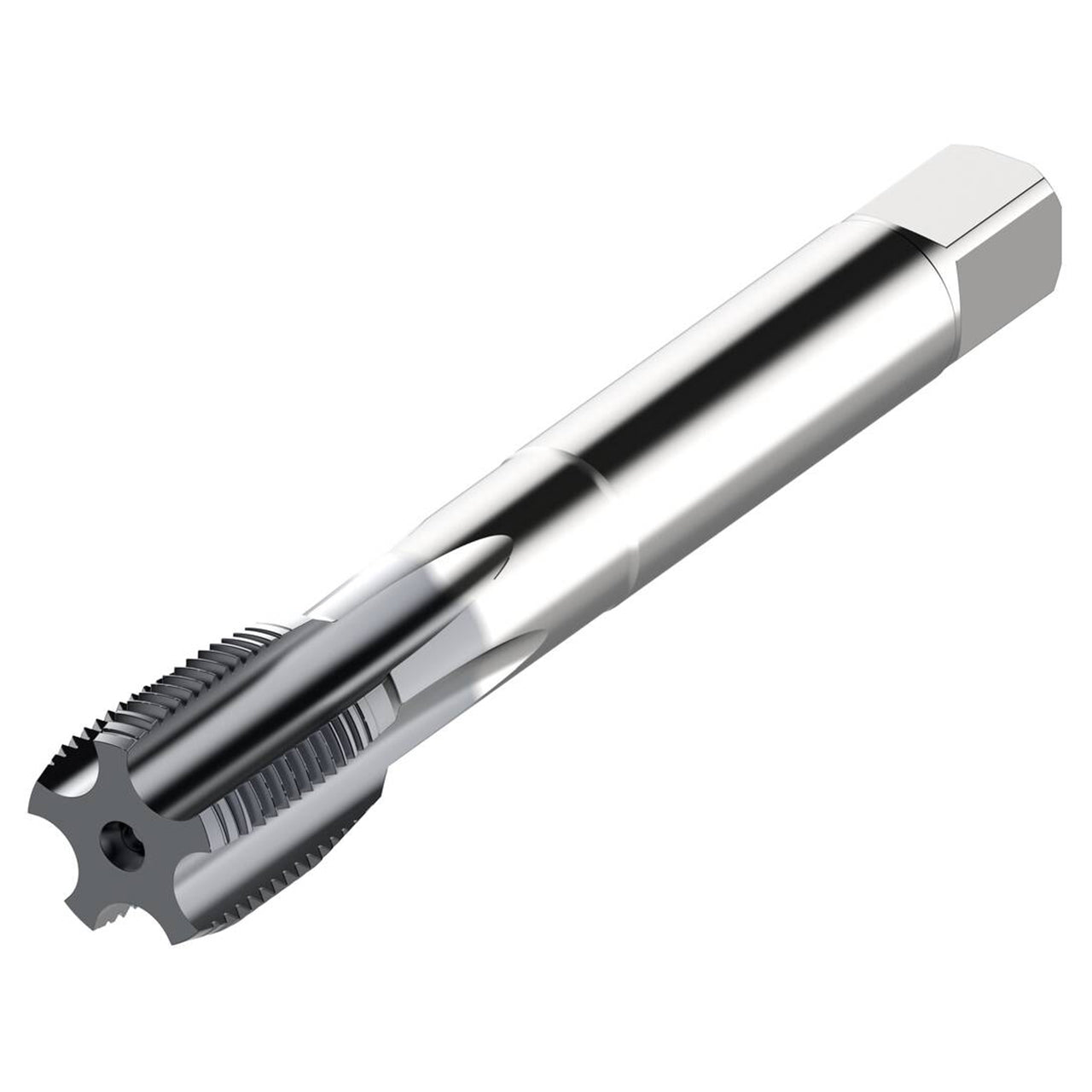

| Product Type | Straight Flute Tap |
