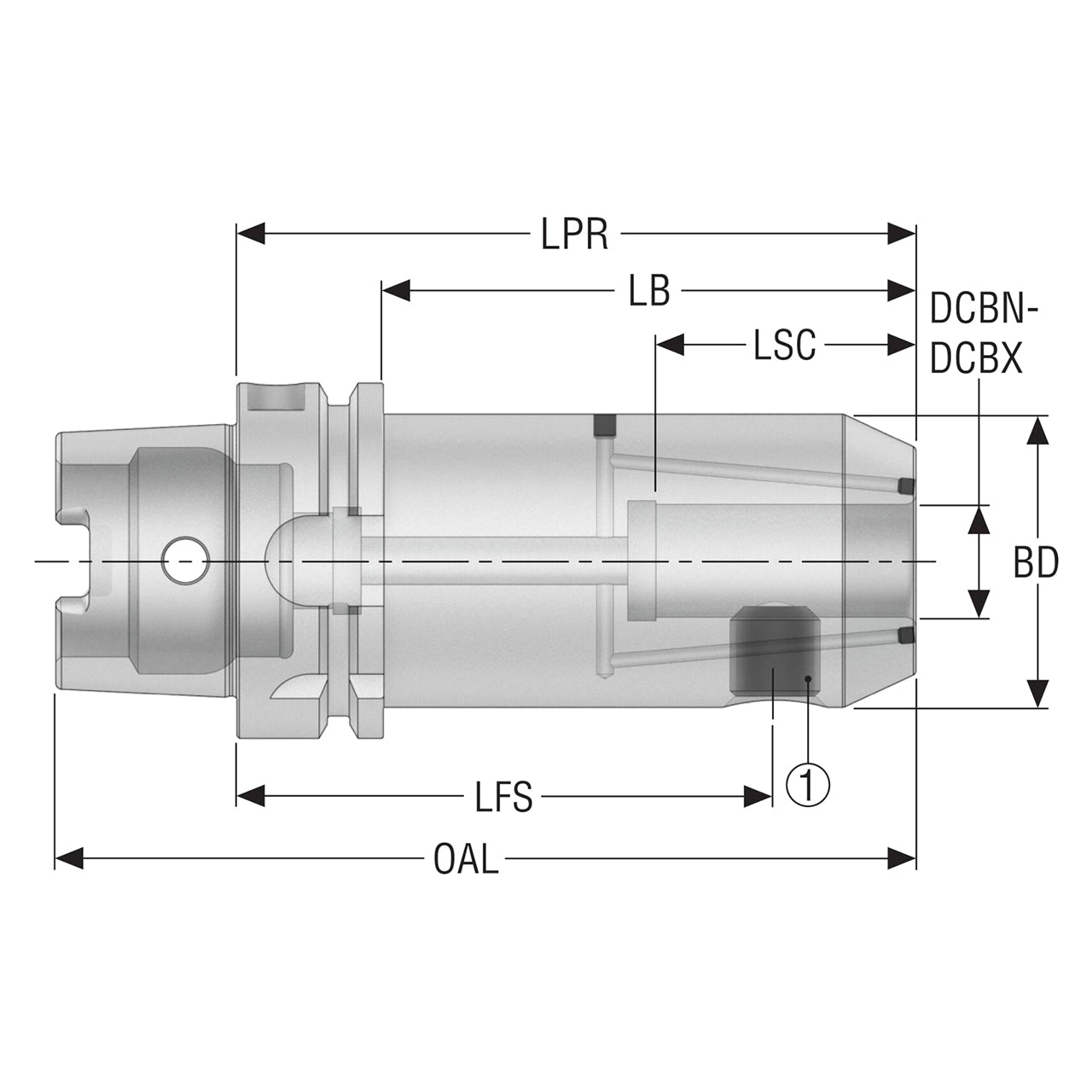

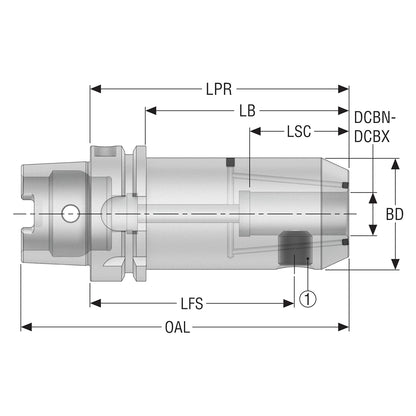

Product Specifications
| Manufacturer Part Number | 03301735 |
| Body Diameter (Decimal Inch) | 1.250" |
| Body Diameter (mm) | 31.75mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Minimum Connection Bore Diameter (mm) | 12.70mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Maximum Connection Bore Diameter (mm) | 12.70mm |
| Body Length (Decimal Inch) | 2.226" |
| Body Length (mm) | 56.55mm |
| Functional Length Secondary (Decimal Inch) | 2.380" |
| Functional Length Secondary (mm) | 60.45mm |
| Protruding Length (Decimal Inch) | 3.250" |
| Protruding Length (mm) | 82.55mm |
| Clamping Length (Decimal Inch) | 1.620" |
| Clamping Length (mm) | 41.15mm |
| Overall Length (Decimal Inch) | 4.510" |
| Overall Length (mm) | 114.55mm |
| Data Chip Provision | 1 |

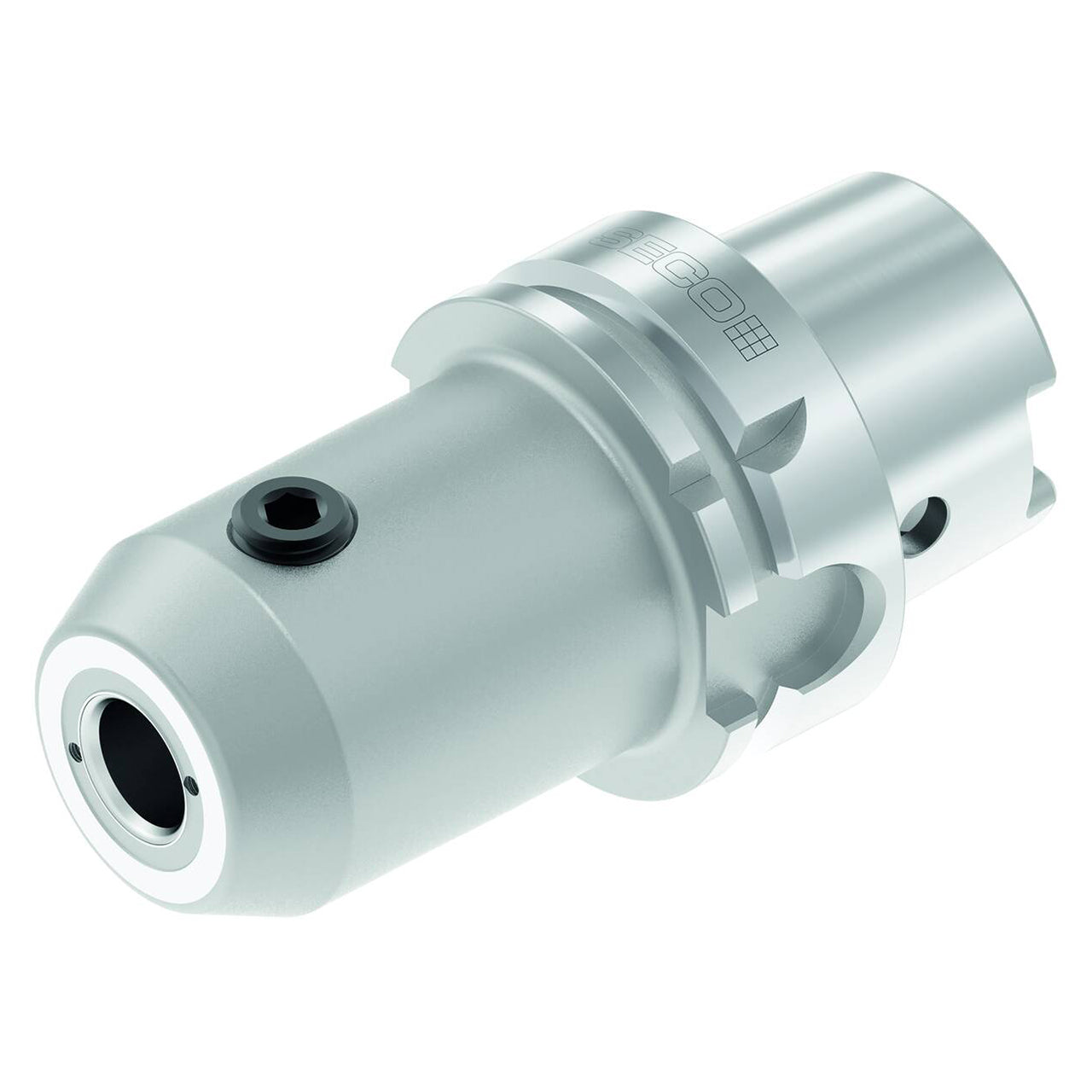

| Product Type | End Mill Holder |
