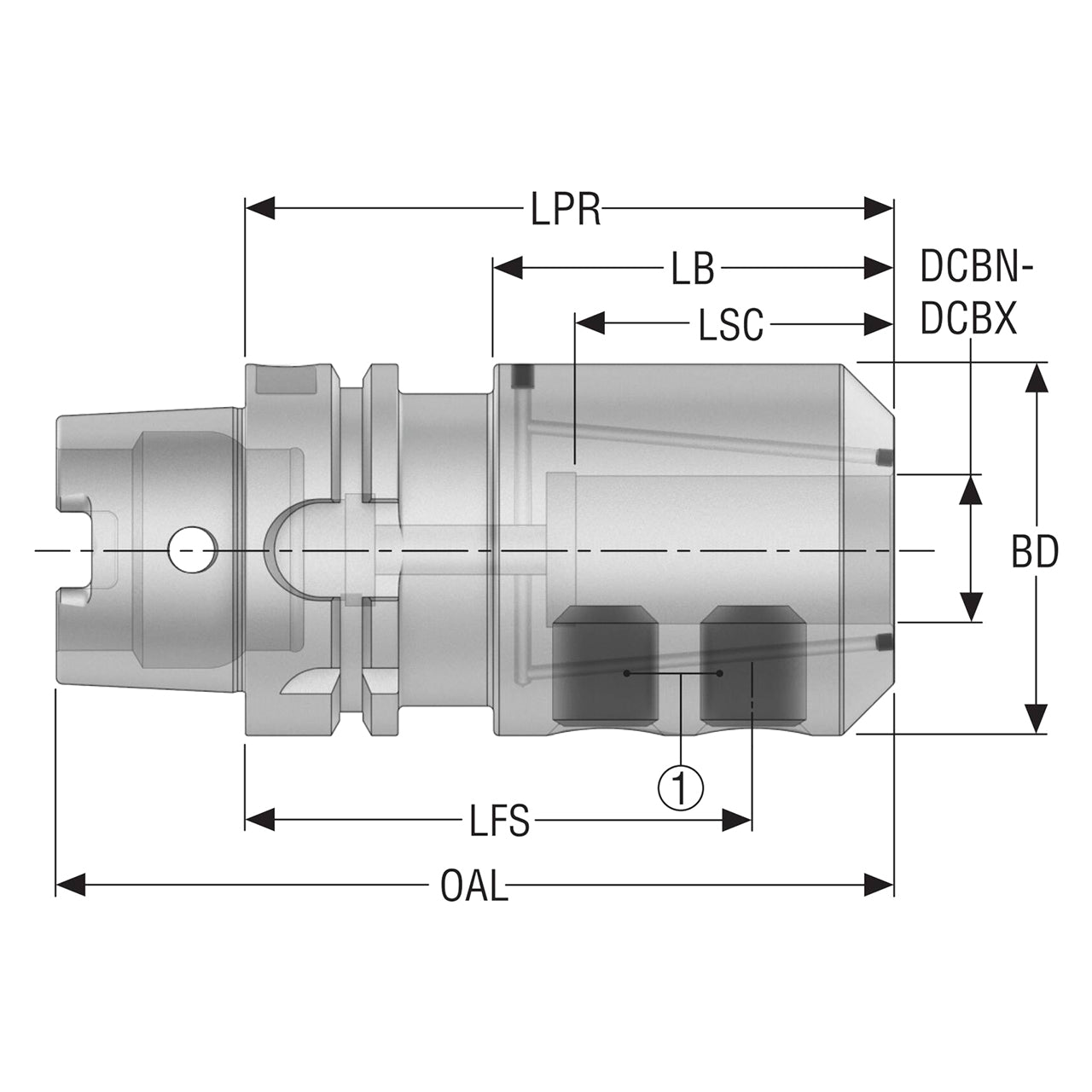

Product Specifications
| Manufacturer Part Number | 03301715 |
| Body Diameter (Decimal Inch) | 3.937" |
| Body Diameter (mm) | 100.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.969" |
| Minimum Connection Bore Diameter (mm) | 50.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.969" |
| Maximum Connection Bore Diameter (mm) | 50.00mm |
| Body Length (Decimal Inch) | 3.976" |
| Body Length (mm) | 101.00mm |
| Functional Length Secondary (Decimal Inch) | 3.740" |
| Functional Length Secondary (mm) | 95.00mm |
| Protruding Length (Decimal Inch) | 5.118" |
| Protruding Length (mm) | 130.00mm |
| Clamping Length (Decimal Inch) | 3.071" |
| Clamping Length (mm) | 78.00mm |
| Overall Length (Decimal Inch) | 7.087" |
| Overall Length (mm) | 180.00mm |
| Data Chip Provision | 1 |

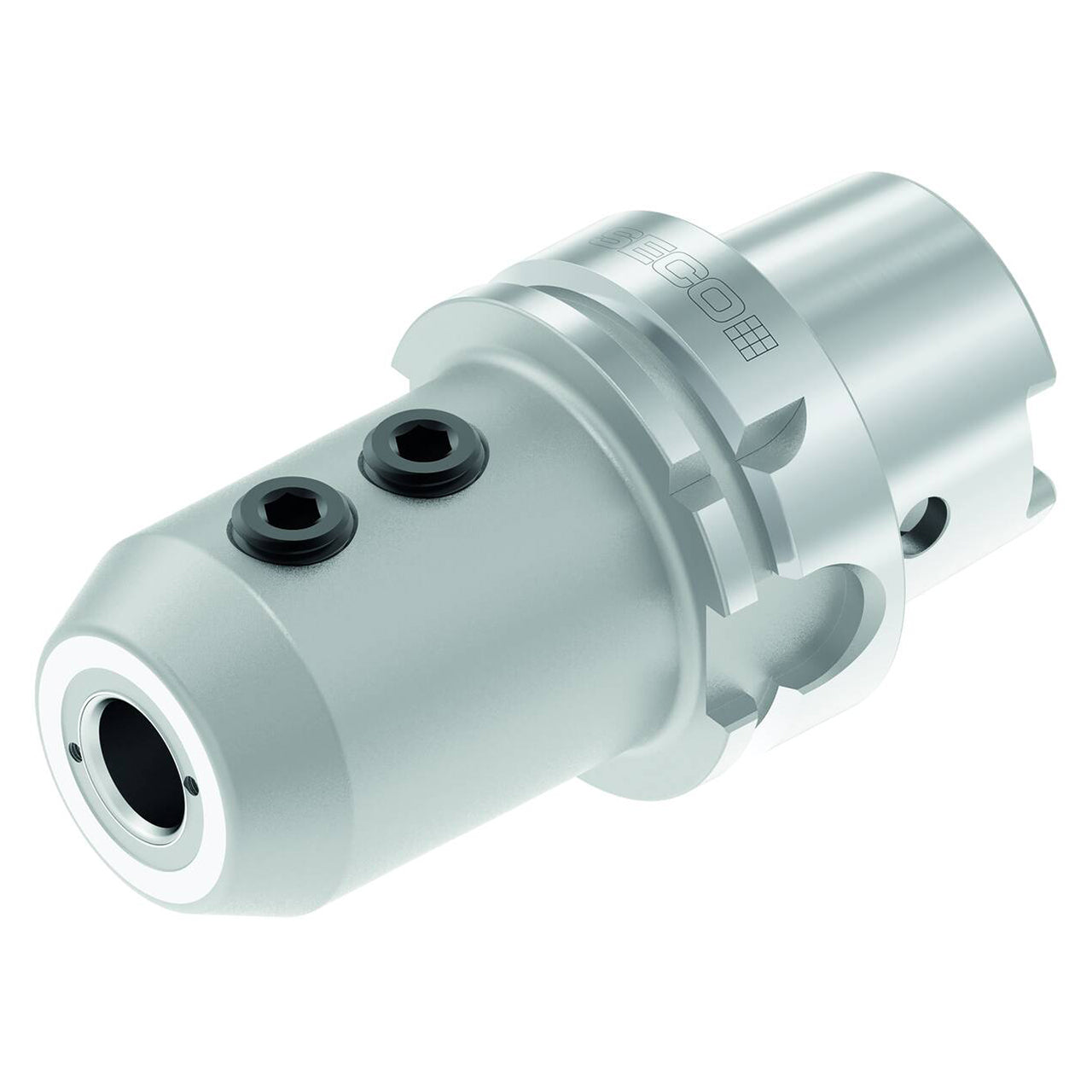

| Product Type | End Mill Holder |
