Product Specifications
| Manufacturer Part Number | 03301669 |
| Body Diameter (Decimal Inch) | 1.750" |
| Body Diameter (mm) | 44.45mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.750" |
| Connection Diameter Workpiece Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 0.976" |
| Body Length (mm) | 24.80mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Clamping Length (Decimal Inch) | 0.688" |
| Clamping Length (mm) | 17.48mm |
| Overall Length (Decimal Inch) | 3.948" |
| Overall Length (mm) | 100.28mm |
| Data Chip Provision | 1 |

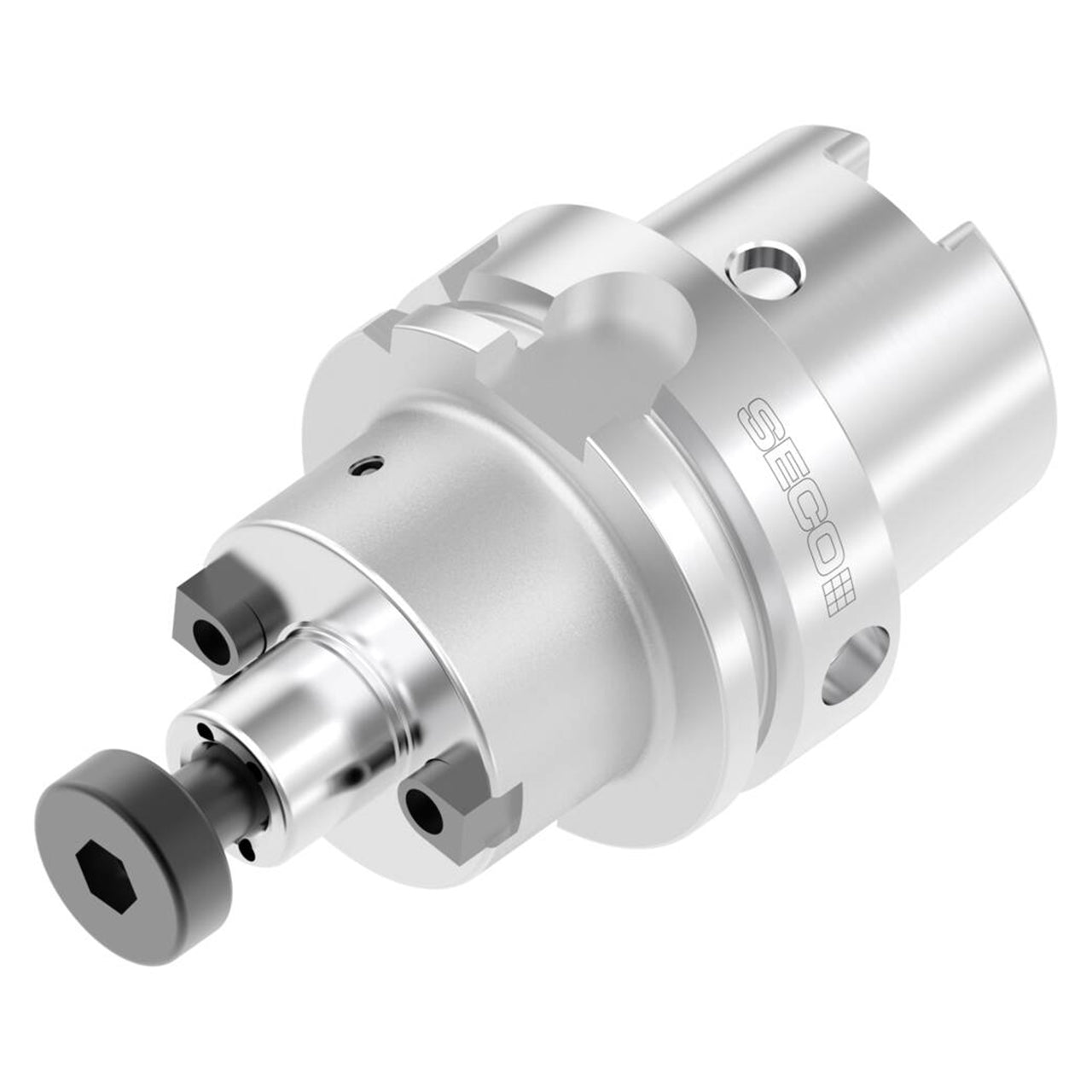

| Product Type | Shell Mill Holder |
