Product Specifications

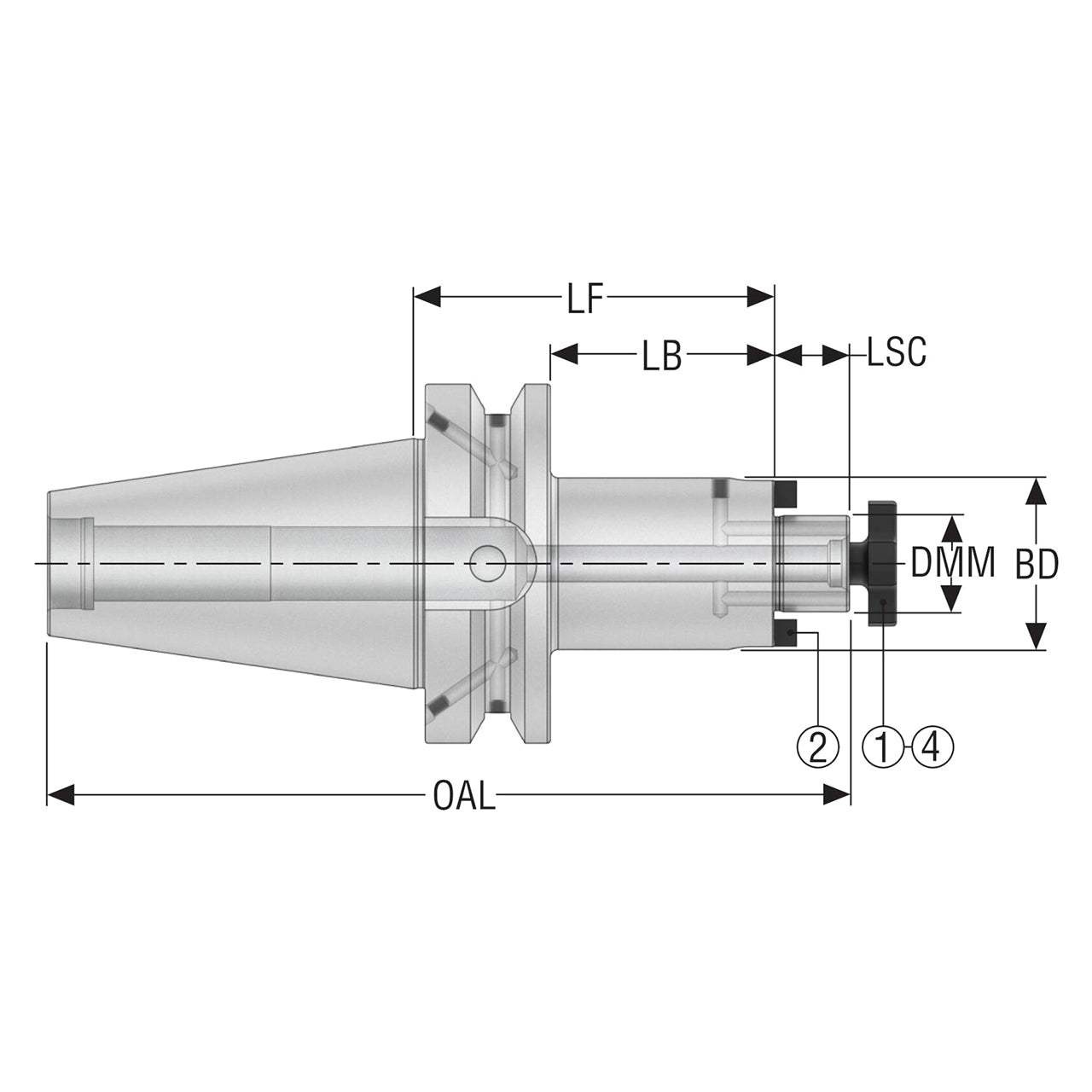

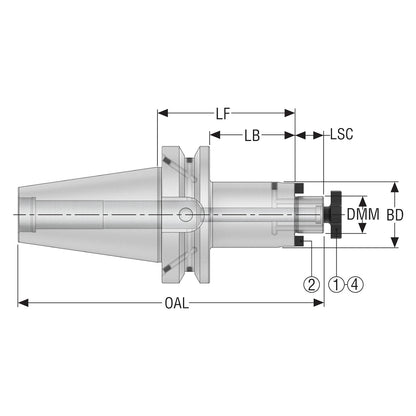

| Manufacturer Part Number | 03301668 |
| Body Diameter (Decimal Inch) | 1.890" |
| Body Diameter (mm) | 48.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.063" |
| Connection Diameter Workpiece Side (mm) | 27.00mm |
| Shank Diameter (Decimal Inch) | 1.063" |
| Shank Diameter (mm) | 27.00mm |
| Body Length (Decimal Inch) | 3.071" |
| Body Length (mm) | 78.00mm |
| Functional Length (Decimal Inch) | 3.937" |
| Functional Length (mm) | 100.00mm |
| Clamping Length (Decimal Inch) | 0.827" |
| Clamping Length (mm) | 21.00mm |
| Overall Length (Decimal Inch) | 6.669" |
| Overall Length (mm) | 169.40mm |

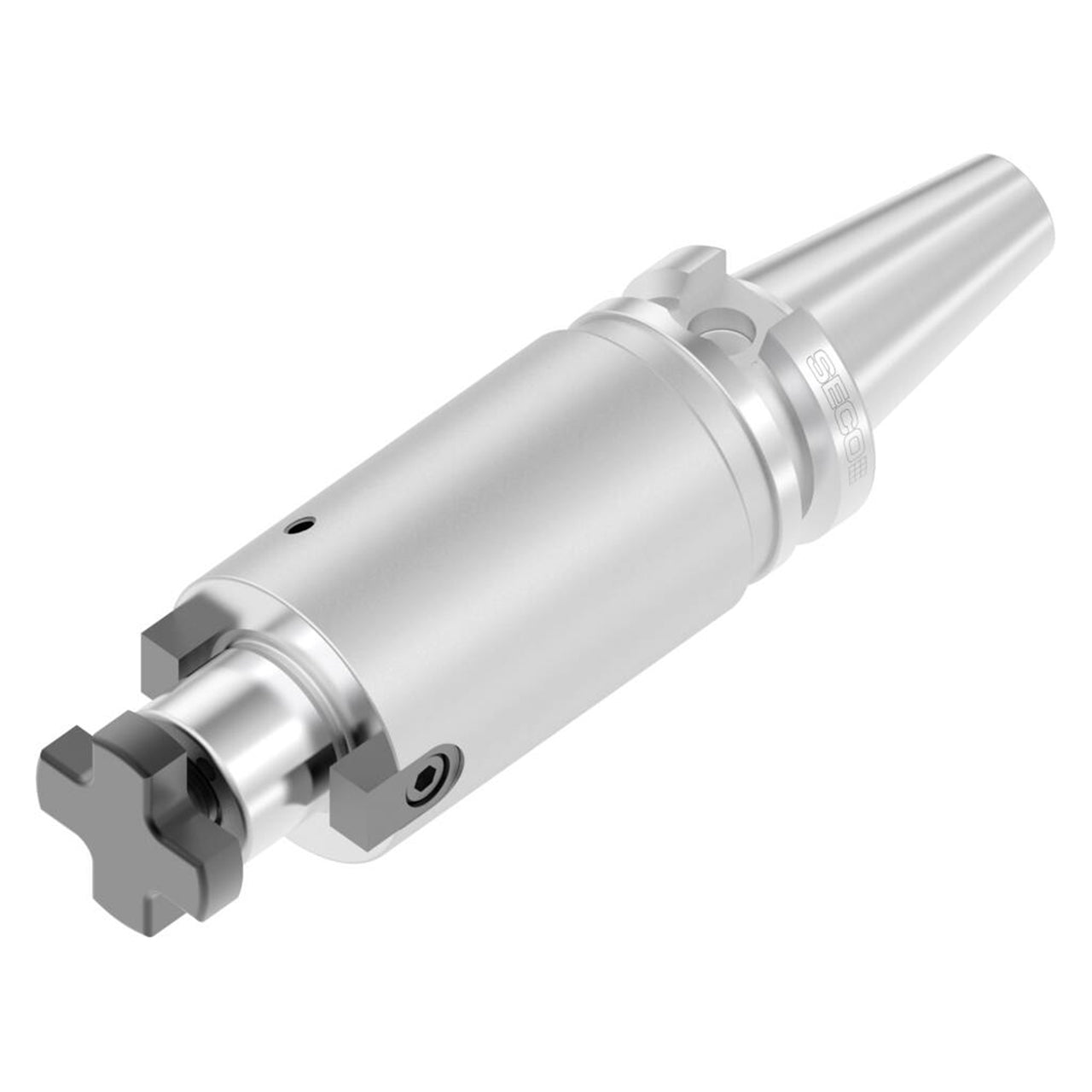

| Product Type | Shell Mill Holder |
