Product Specifications

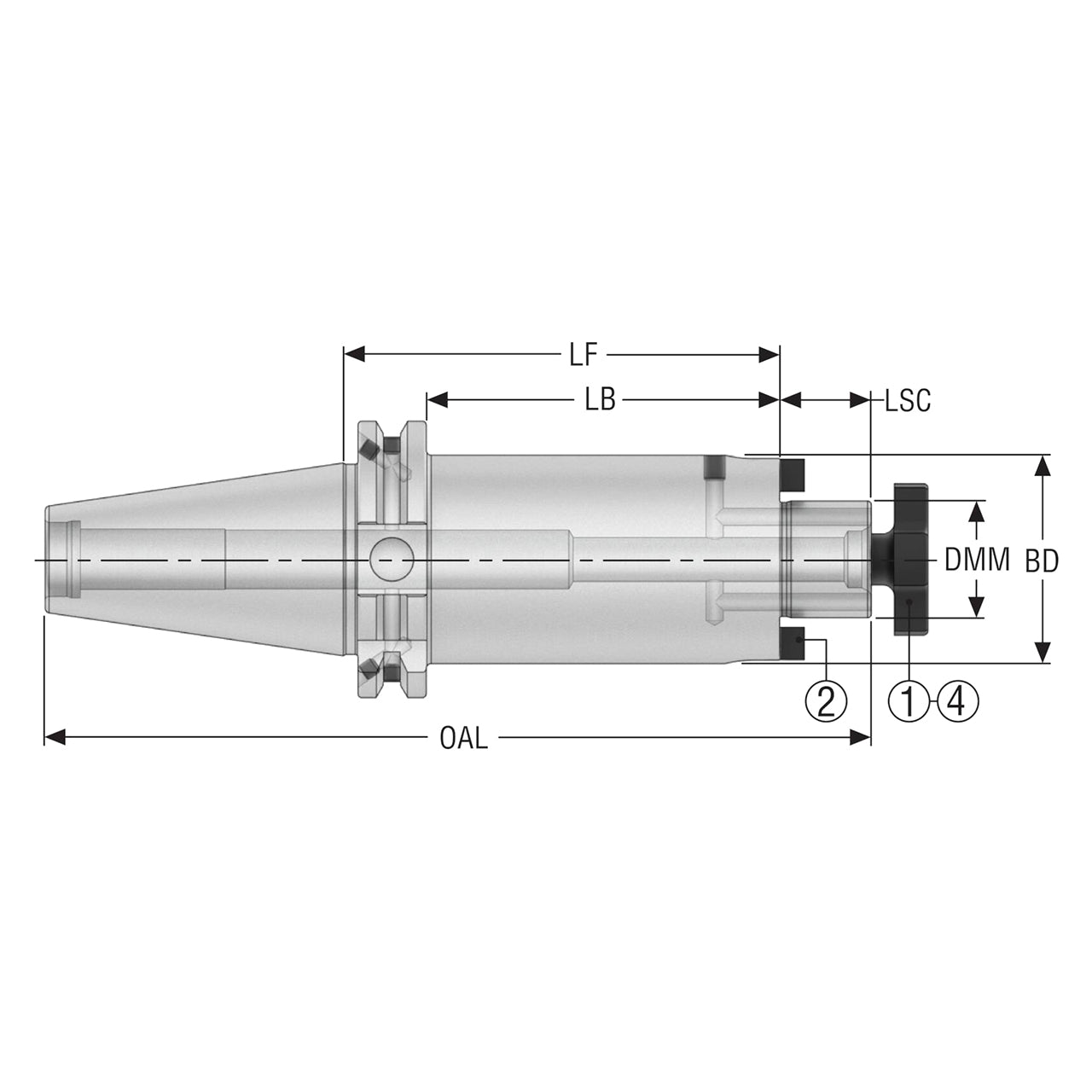

| Manufacturer Part Number | 03301605 |
| Body Diameter (Decimal Inch) | 2.284" |
| Body Diameter (mm) | 58.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.260" |
| Connection Diameter Workpiece Side (mm) | 32.00mm |
| Shank Diameter (Decimal Inch) | 1.260" |
| Shank Diameter (mm) | 32.00mm |
| Body Length (Decimal Inch) | 5.547" |
| Body Length (mm) | 140.90mm |
| Functional Length (Decimal Inch) | 6.299" |
| Functional Length (mm) | 160.00mm |
| Clamping Length (Decimal Inch) | 0.945" |
| Clamping Length (mm) | 24.00mm |
| Overall Length (Decimal Inch) | 11.250" |
| Overall Length (mm) | 285.75mm |
| Data Chip Provision | 1 |

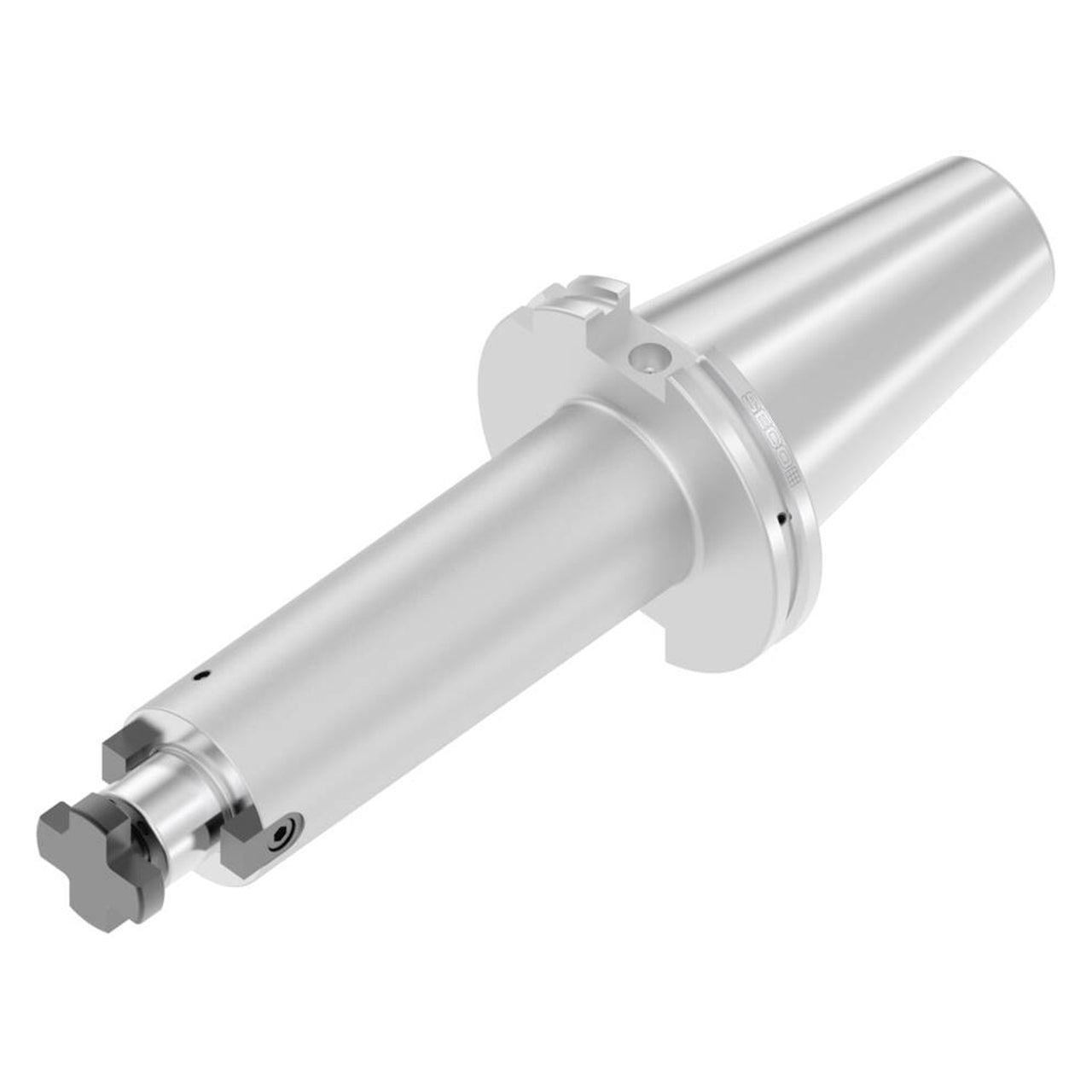

| Product Type | Shell Mill Holder |
