Product Specifications

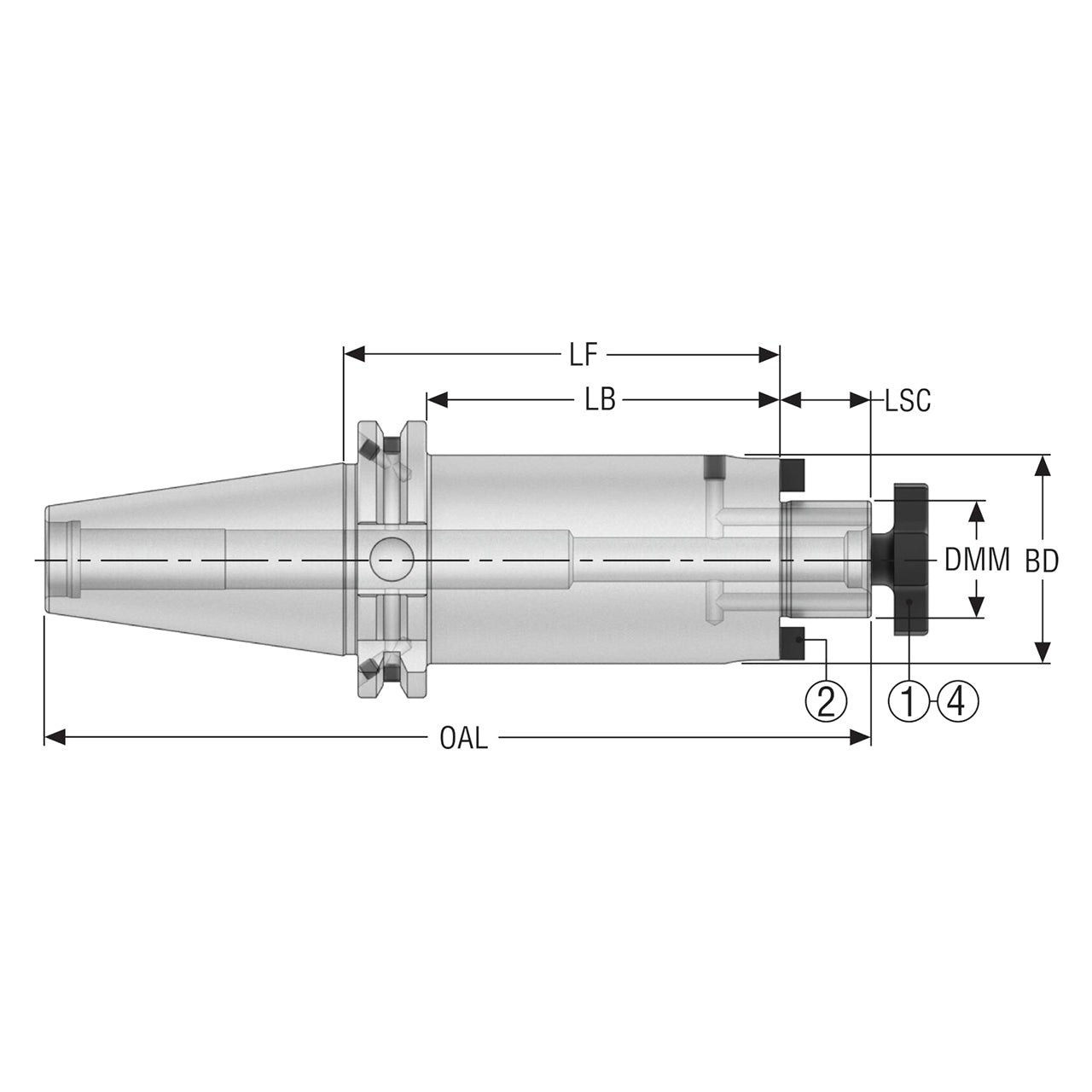

| Manufacturer Part Number | 03301600 |
| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.866" |
| Connection Diameter Workpiece Side (mm) | 22.00mm |
| Shank Diameter (Decimal Inch) | 0.866" |
| Shank Diameter (mm) | 22.00mm |
| Body Length (Decimal Inch) | 3.185" |
| Body Length (mm) | 80.90mm |
| Functional Length (Decimal Inch) | 3.937" |
| Functional Length (mm) | 100.00mm |
| Clamping Length (Decimal Inch) | 0.748" |
| Clamping Length (mm) | 19.00mm |
| Overall Length (Decimal Inch) | 8.691" |
| Overall Length (mm) | 220.75mm |
| Data Chip Provision | 1 |

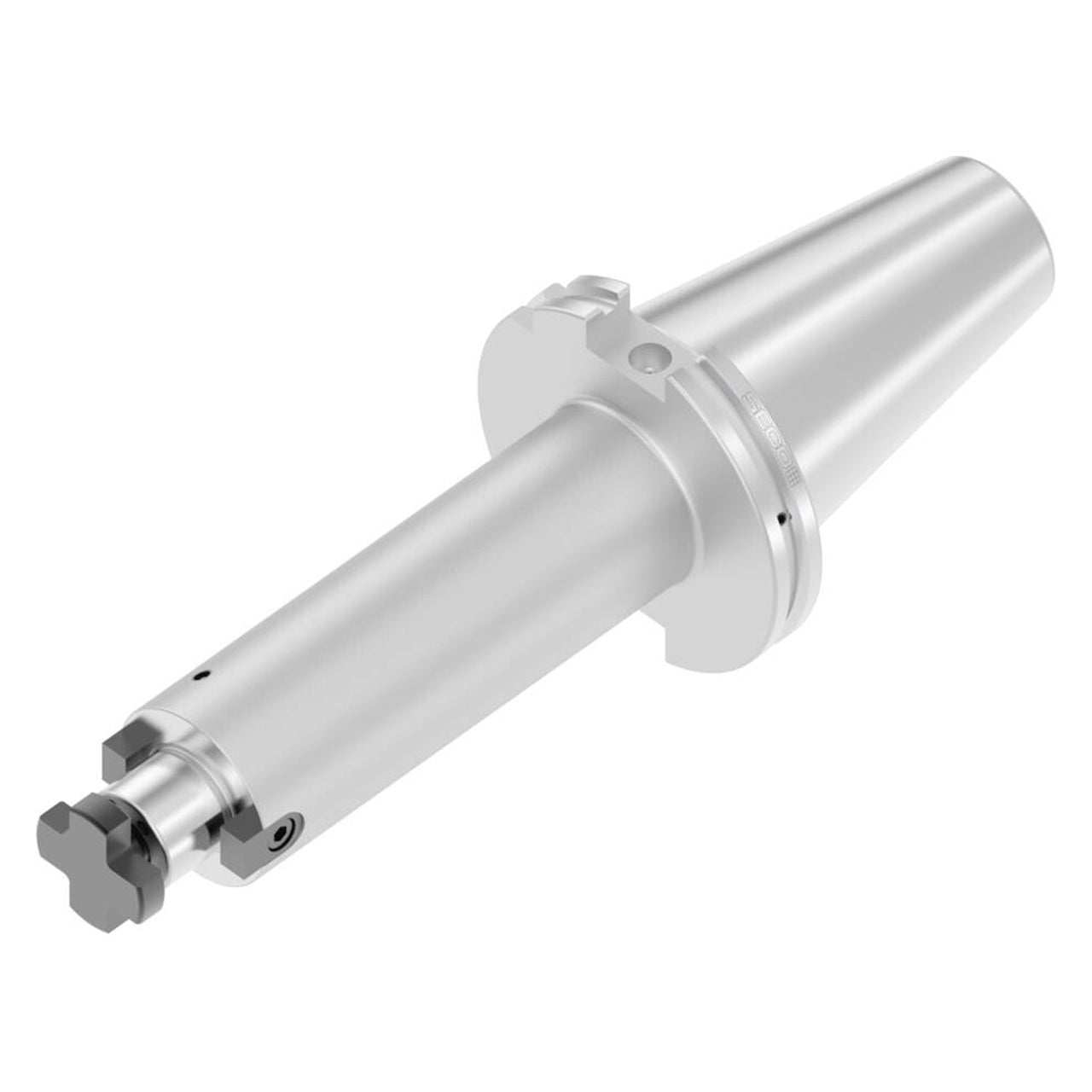

| Product Type | Shell Mill Holder |
