Product Specifications

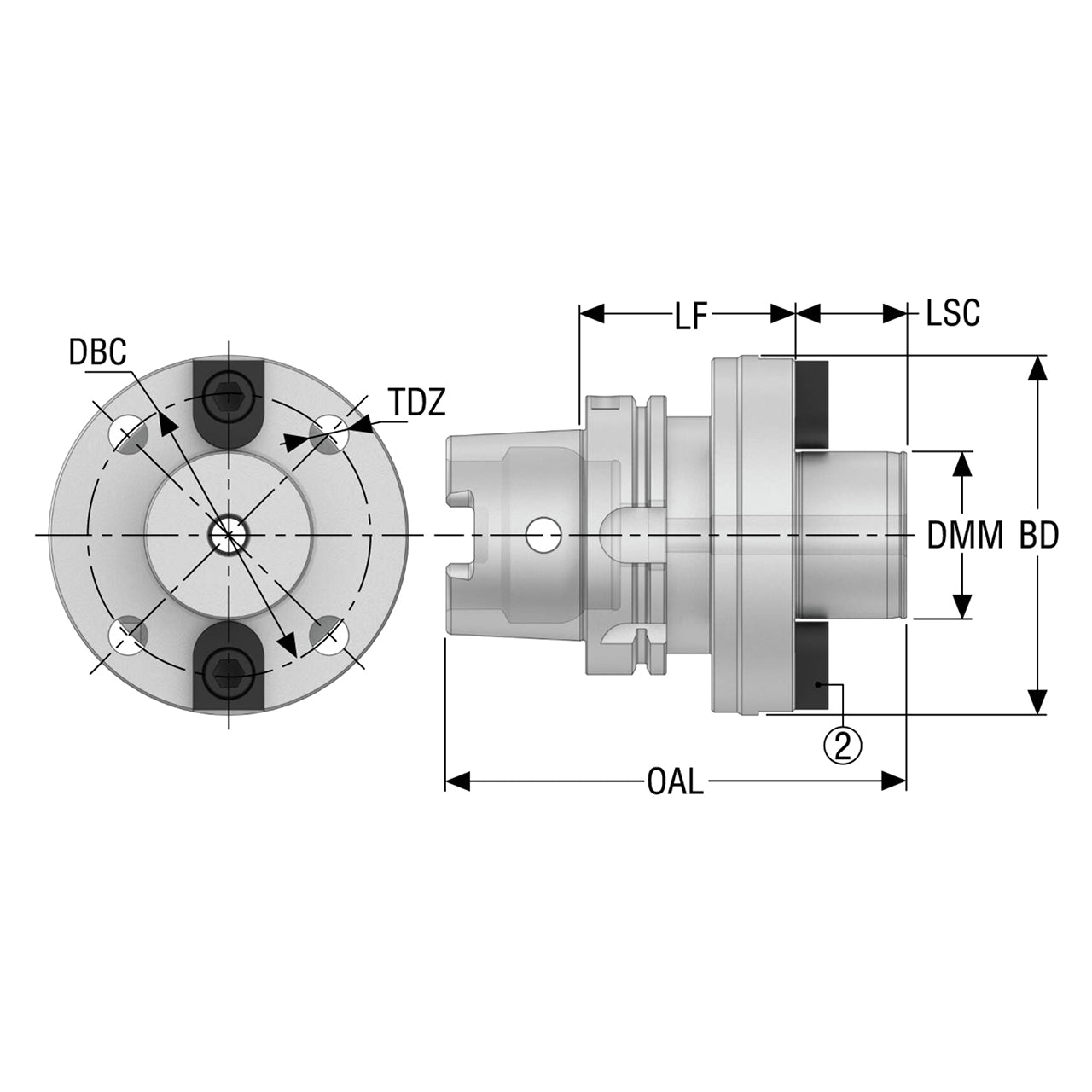

| Manufacturer Part Number | 03301598 |
| Body Diameter (Decimal Inch) | 5.079" |
| Body Diameter (mm) | 129.00mm |
| Diameter Bolt Circle (Decimal Inch) | 4.000" |
| Diameter Bolt Circle (mm) | 101.60mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 2.362" |
| Connection Diameter Workpiece Side (mm) | 60.00mm |
| Shank Diameter (Decimal Inch) | 2.362" |
| Shank Diameter (mm) | 60.00mm |
| Thread Diameter Size | M16x2 |
| Body Length (Decimal Inch) | 1.811" |
| Body Length (mm) | 46.00mm |
| Functional Length (Decimal Inch) | 2.953" |
| Functional Length (mm) | 75.00mm |
| Clamping Length (Decimal Inch) | 1.575" |
| Clamping Length (mm) | 40.00mm |
| Overall Length (Decimal Inch) | 6.496" |
| Overall Length (mm) | 165.00mm |
| Data Chip Provision | 1 |

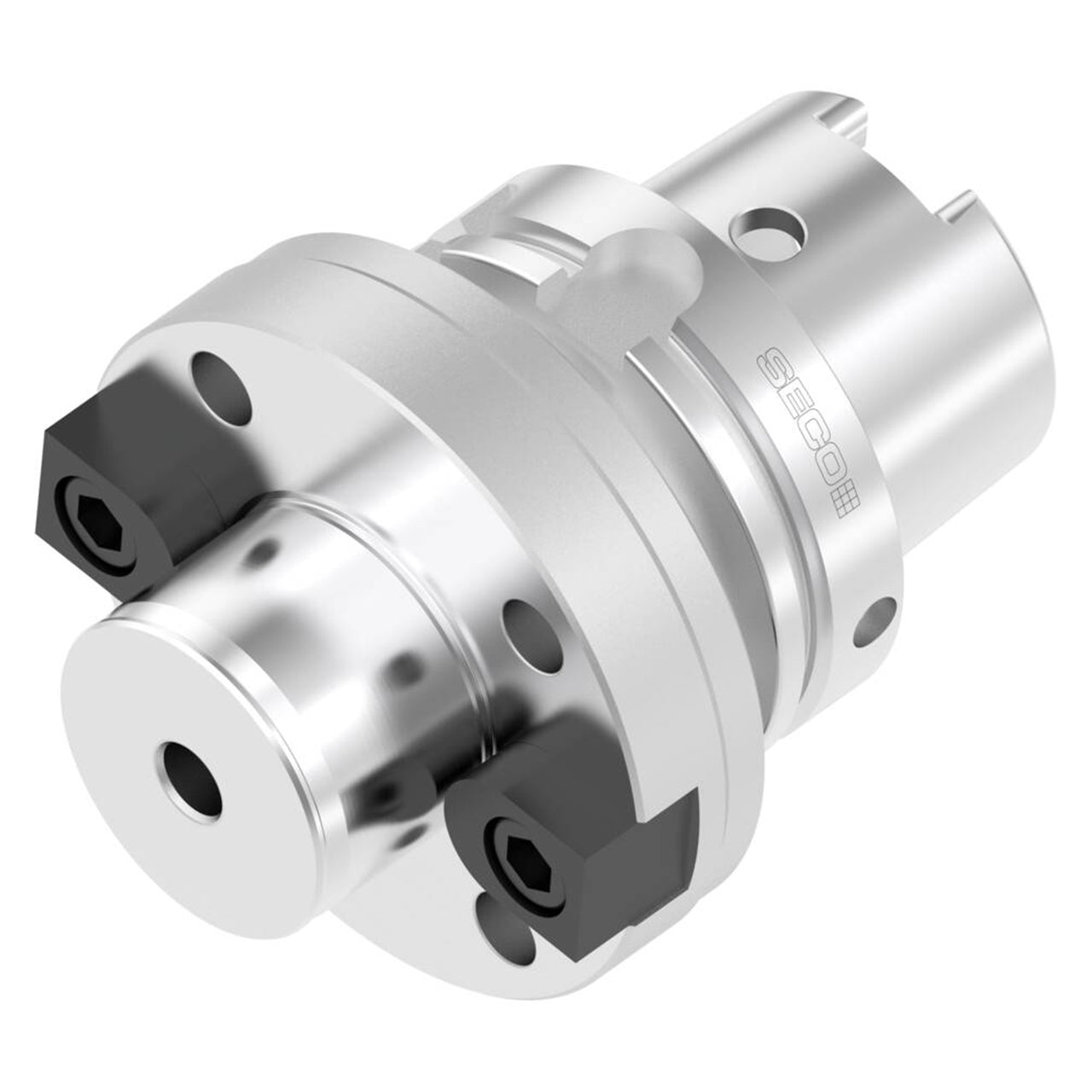

| Product Type | Shell Mill Holder |
