Product Specifications
| Manufacturer Part Number | 03300024 |
| Functional Length (Decimal Inch) | 0.669" |
| Functional Length (mm) | 17.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.055" |
| Maximum Radial Cutting Depth (mm) | 1.40mm |
| Maximum Cutting Depth (Decimal Inch) | 0.055" |
| Maximum Cutting Depth (mm) | 1.40mm |
| Functional Height (Decimal Inch) | 0.611" |
| Functional Height (mm) | 15.53mm |
| Shank Type | Cassettes |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Cutting Direction | Neutral |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |

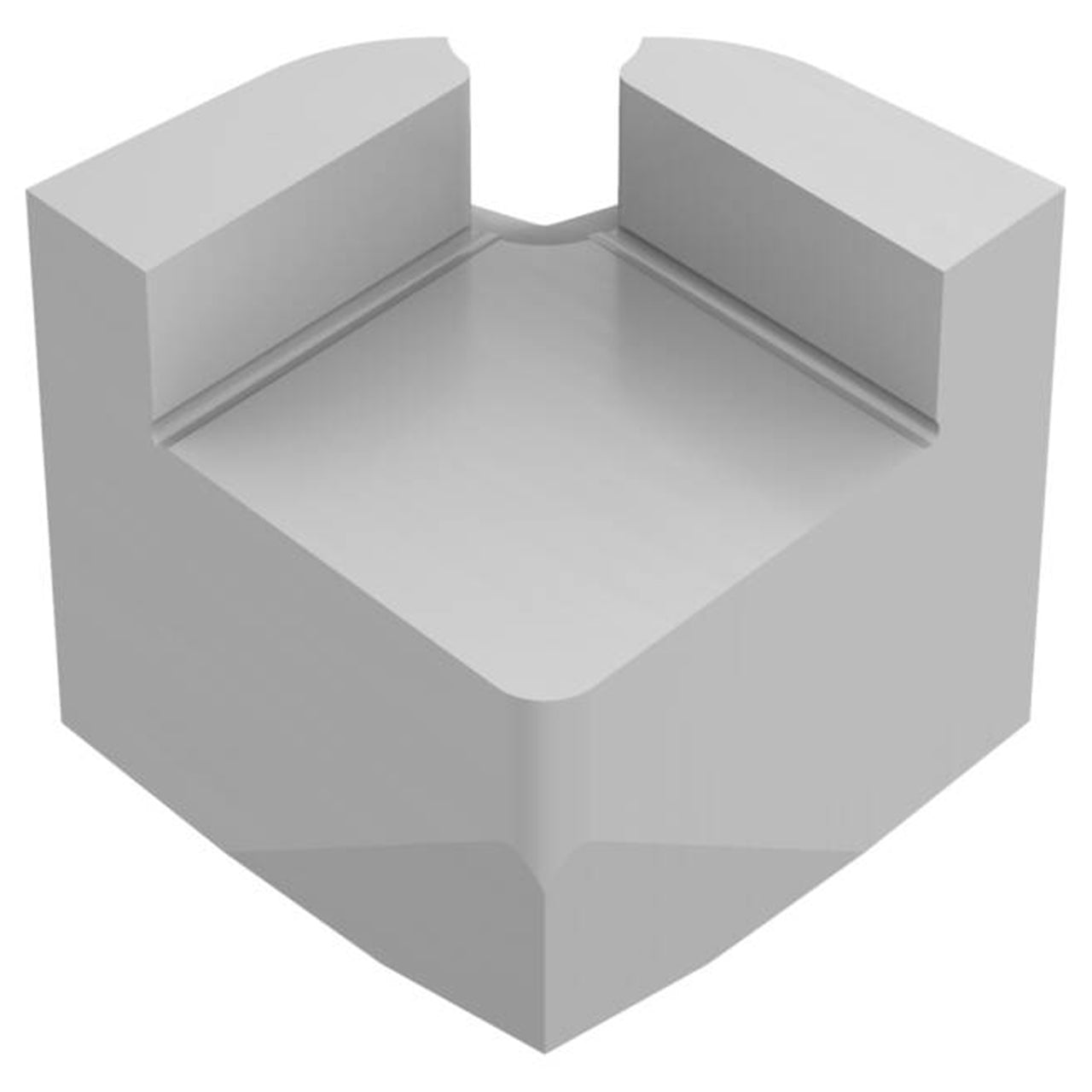

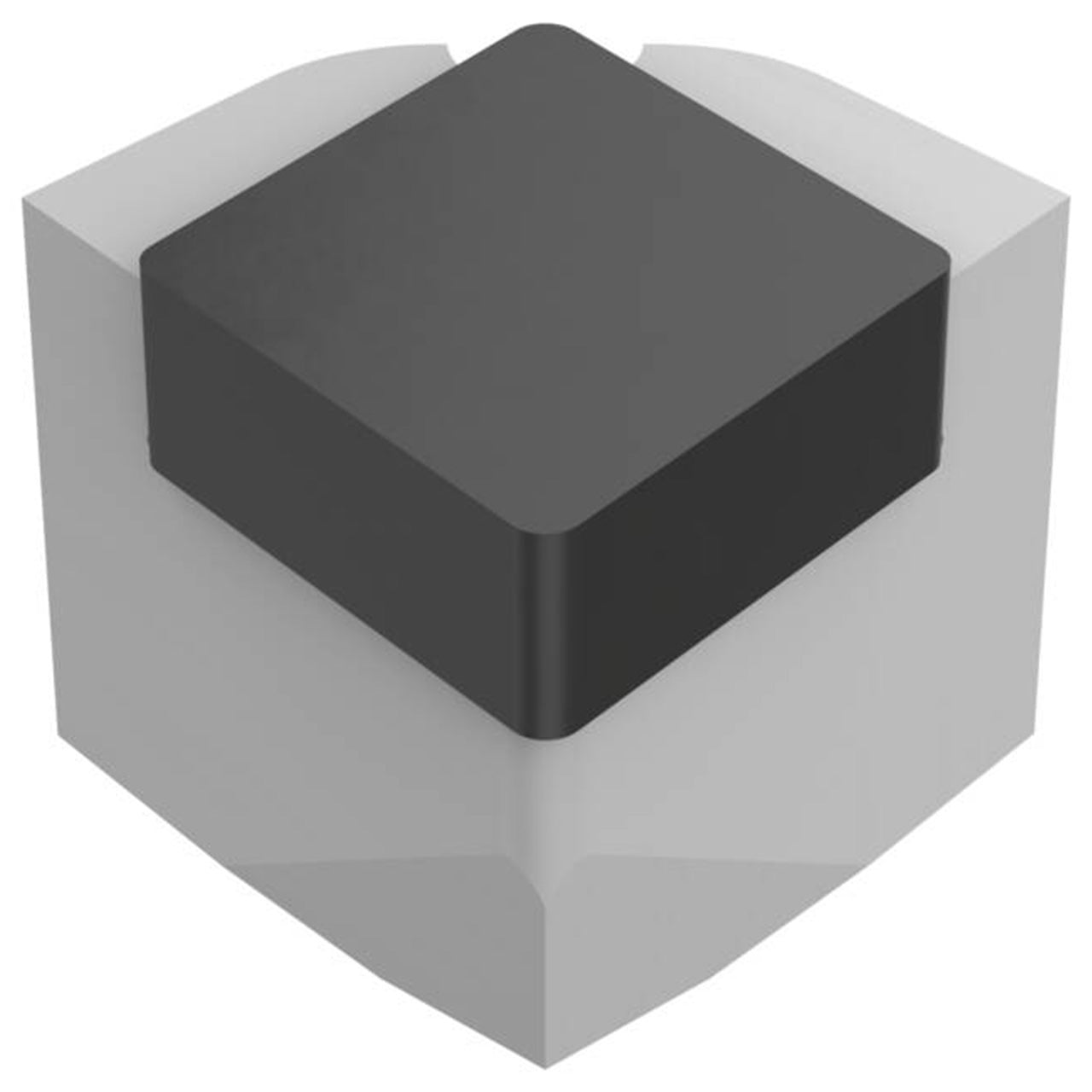

| Product Type | Indexable Turning Cartridge |
