Product Specifications
| Manufacturer Part Number | 03282308 |
| Functional Length (mm) | 36.00mm |
| Head Length (mm) | 38.00mm |
| Shank Length (mm) | 82.00mm |
| Overall Length (mm) | 120.00mm |
| Functional Height (mm) | 25.00mm |
| Height of Tool Holder Shank (mm) | 25.00mm |
| Shank Width (mm) | 25.00mm |
| Maximum Radial Cutting Depth (mm) | 1.40mm |
| Maximum Cutting Depth (mm) | 1.40mm |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Cutting Direction | Left Hand |
| Coolant Entry Style Code | 3 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Insert Clamping System | D |
| Shank Type | Square shank |
| Insert Shape Code | C |

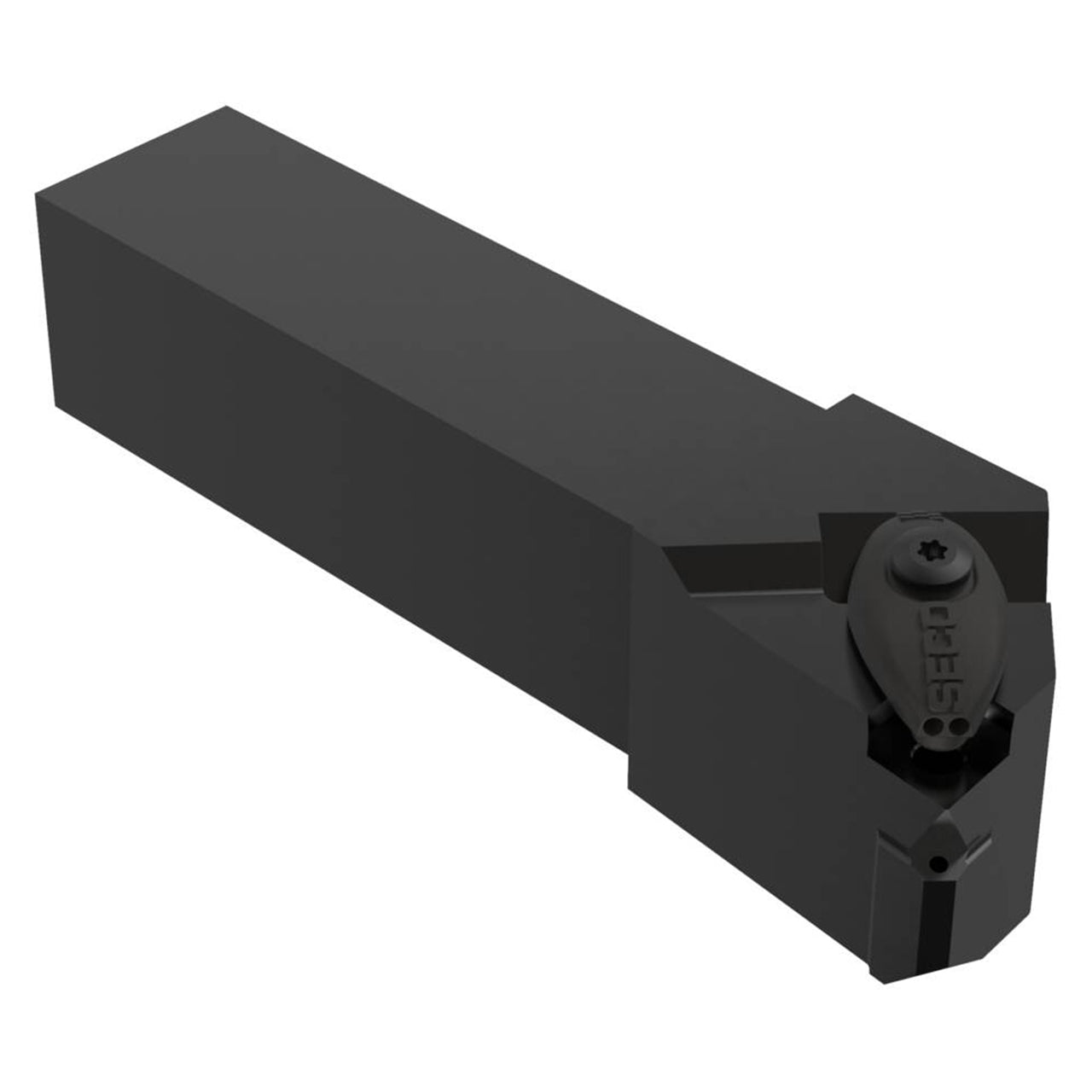

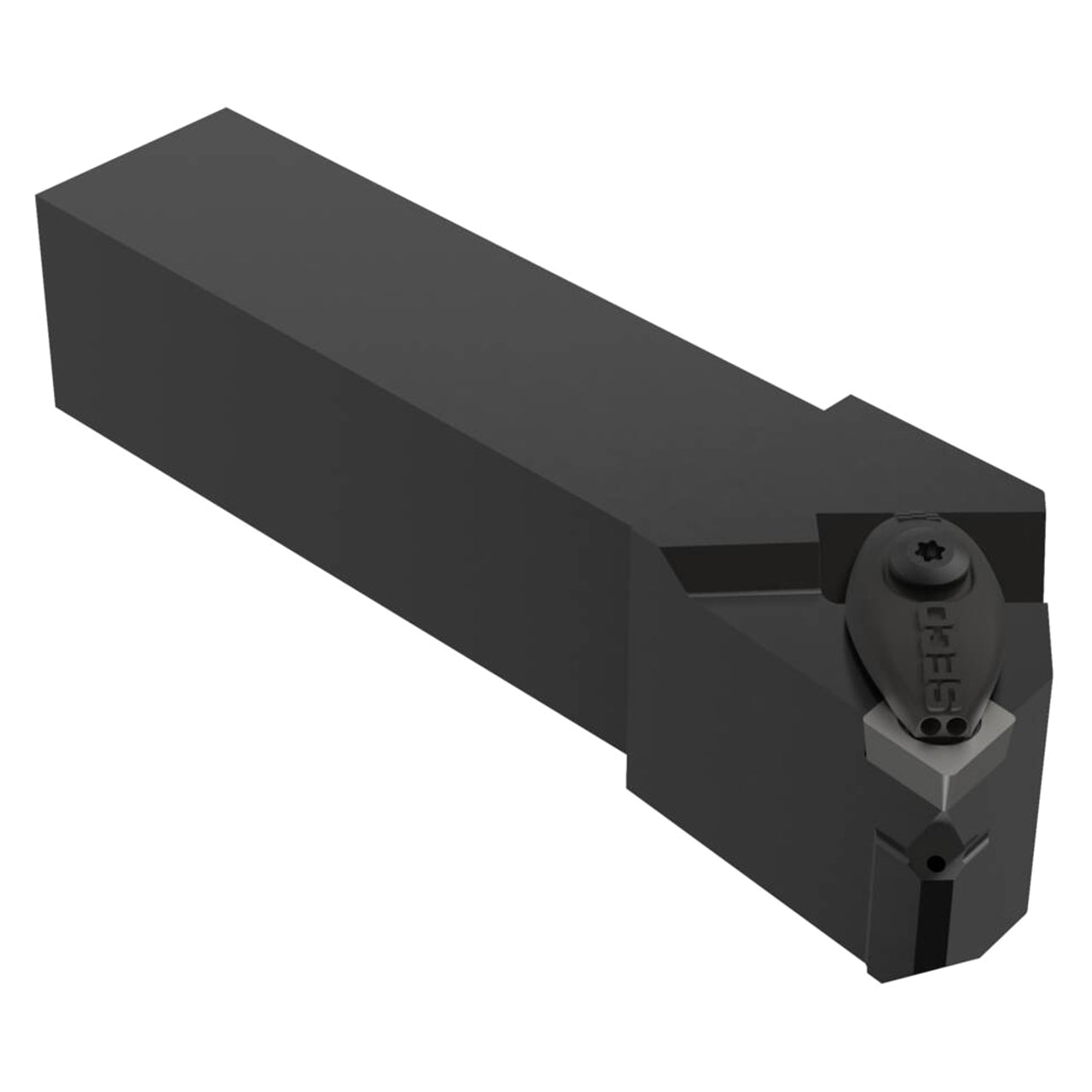

| Product Type | Indexable Turning Toolholder |
