Product Specifications
| Manufacturer Part Number | 03282288 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 7.874" |
| Minimum Cutting Diameter Internal 3 (mm) | 200.00mm |
| Functional Length (Decimal Inch) | 1.496" |
| Functional Length (mm) | 38.00mm |
| Head Length (Decimal Inch) | 1.575" |
| Head Length (mm) | 40.00mm |
| Shank Length (Decimal Inch) | 3.228" |
| Shank Length (mm) | 82.00mm |
| Overall Length (Decimal Inch) | 4.803" |
| Overall Length (mm) | 122.00mm |
| Functional Height (Decimal Inch) | 1.000" |
| Functional Height (mm) | 25.40mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.059" |
| Maximum Radial Cutting Depth (mm) | 1.50mm |
| Maximum Cutting Depth (Decimal Inch) | 0.496" |
| Maximum Cutting Depth (mm) | 12.60mm |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 142 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 93 Degree |
| Maximum Ramping Angle (Degree) | 25 Degree |
| Cutting Direction | Right Hand |
| Coolant Entry Style Code | 3 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Insert Clamping System | D |
| Shank Type | Square shank |
| Insert Shape Code | V |

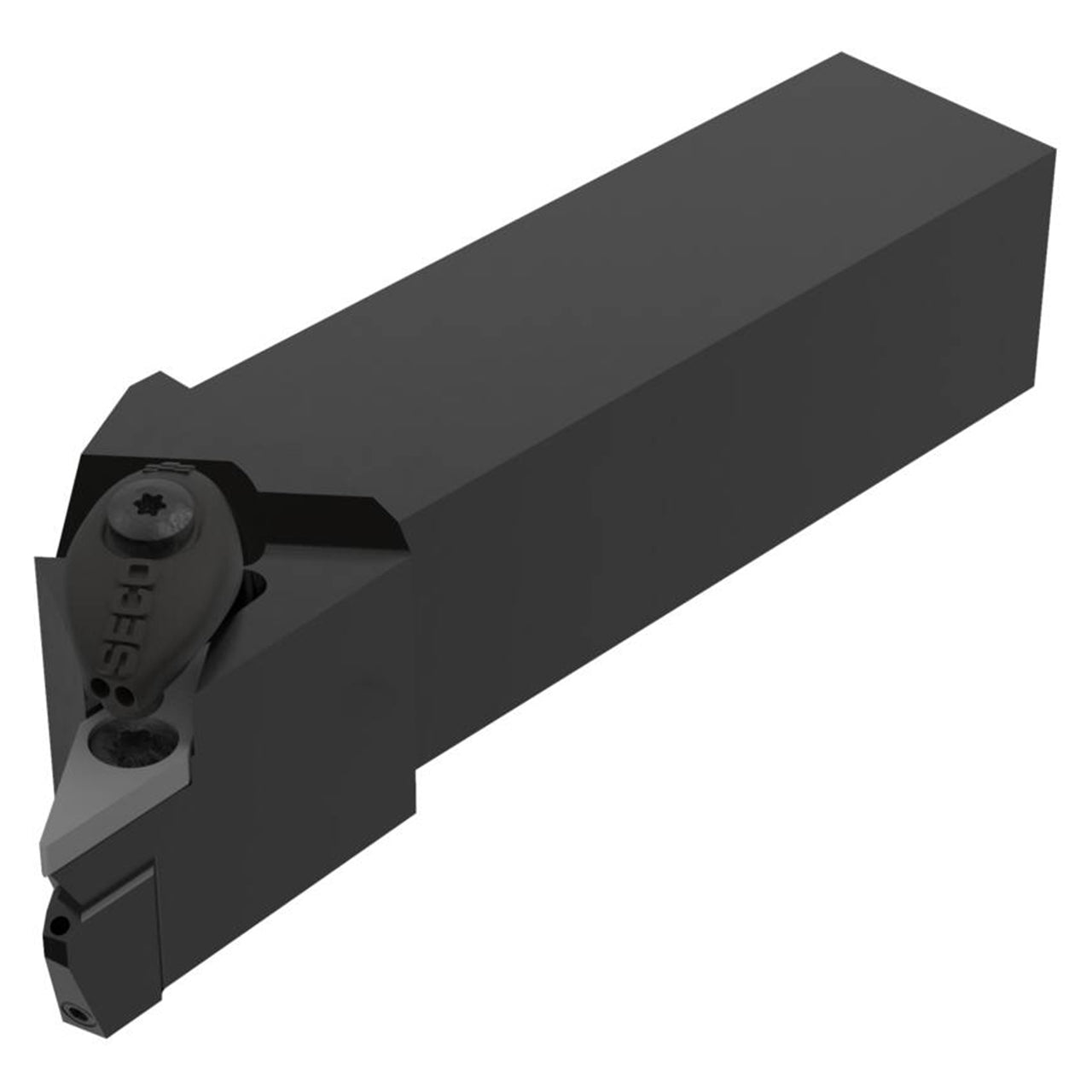

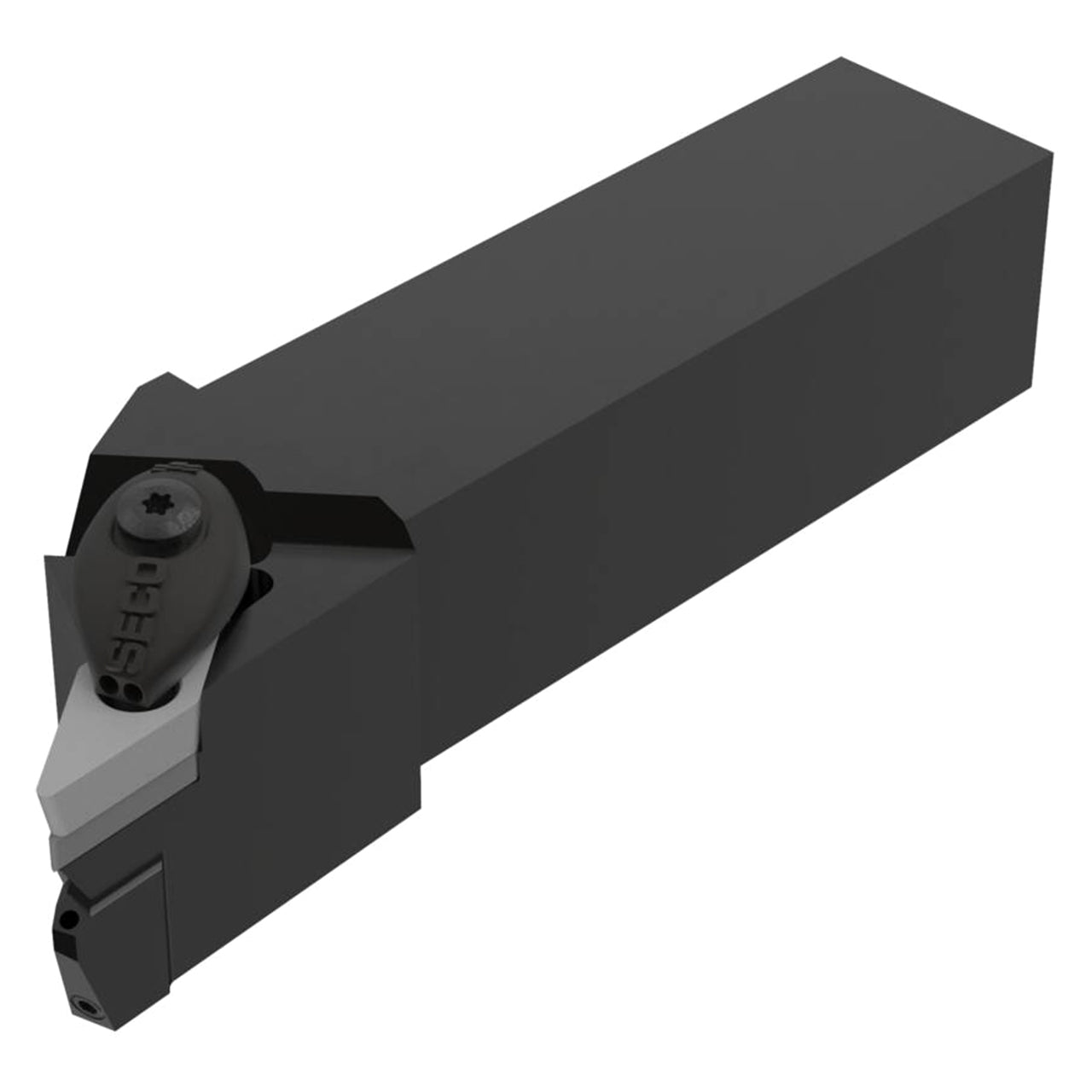

| Product Type | Indexable Turning Toolholder |
