Product Specifications
| Manufacturer Part Number | 03282282 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 8.661" |
| Minimum Cutting Diameter Internal (mm) | 220.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 9.843" |
| Minimum Cutting Diameter Internal 3 (mm) | 250.00mm |
| Functional Length (Decimal Inch) | 1.417" |
| Functional Length (mm) | 36.00mm |
| Functional Length Secondary (Decimal Inch) | 1.728" |
| Functional Length Secondary (mm) | 43.90mm |
| Head Length (Decimal Inch) | 1.807" |
| Head Length (mm) | 45.90mm |
| Overall Length (Decimal Inch) | 5.035" |
| Overall Length (mm) | 127.90mm |
| Functional Height (Decimal Inch) | 1.000" |
| Functional Height (mm) | 25.40mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.047" |
| Maximum Radial Cutting Depth (mm) | 1.20mm |
| Maximum Cutting Depth (Decimal Inch) | 0.347" |
| Maximum Cutting Depth (mm) | 8.80mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 135 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Rake Radial Angle (Degree) | -5.7 Degree |
| Rake Orthogonal Angle (Degree) | -8 Degree |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Cutting Direction | Right Hand |
| Coolant Entry Style Code | 3 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Insert Clamping System | D |
| Shank Type | Square shank |
| Insert Shape Code | S |

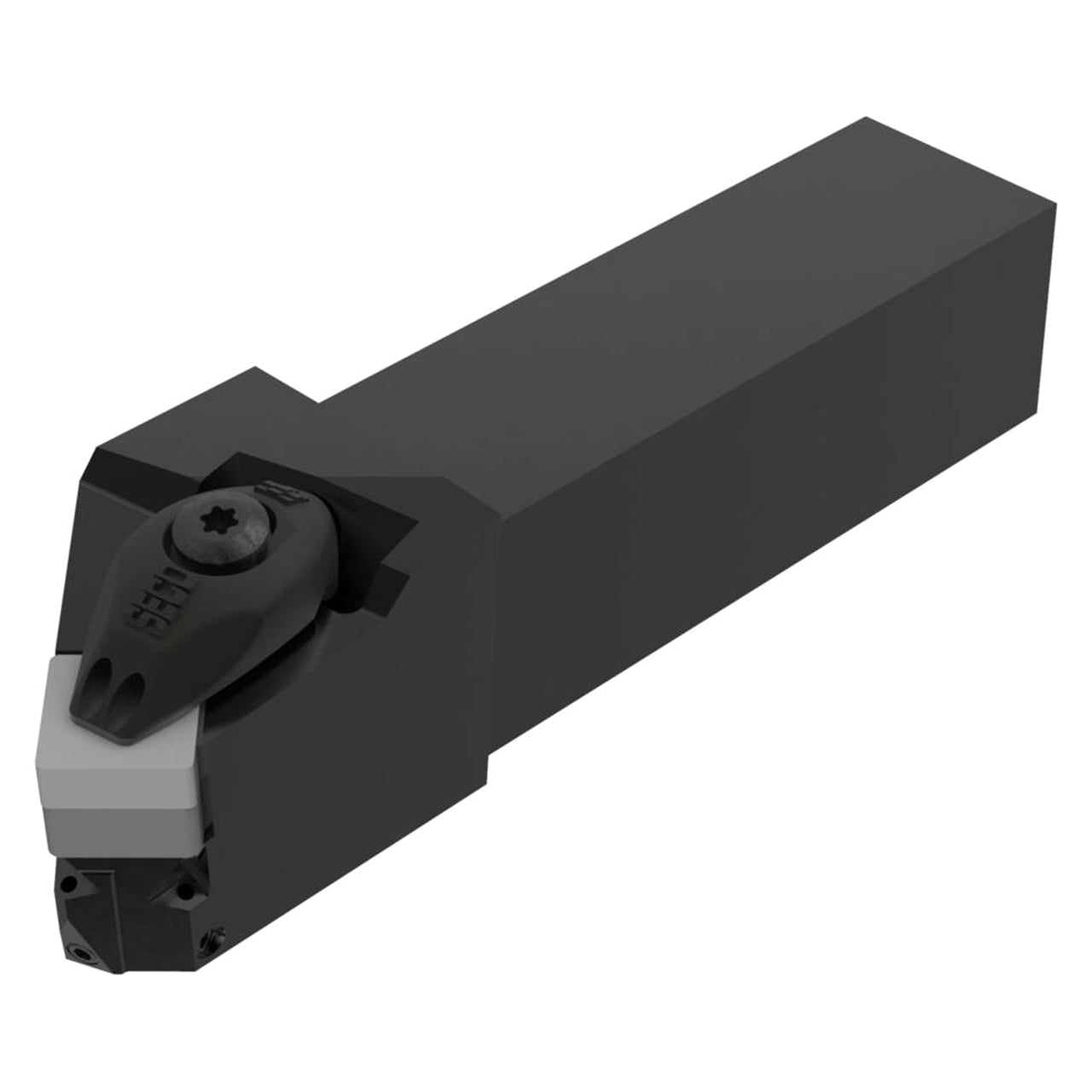

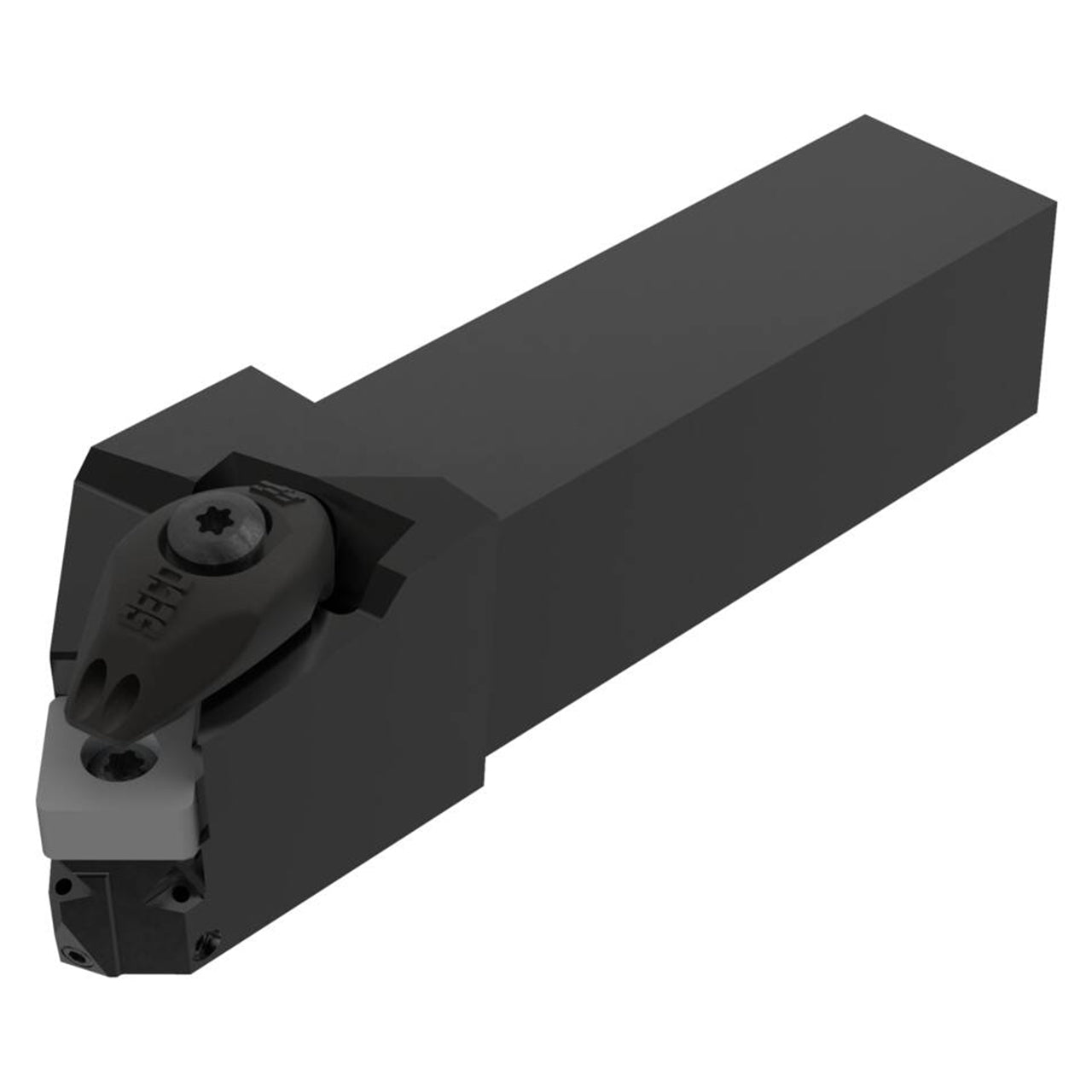

| Product Type | Indexable Turning Toolholder |
