Product Specifications
| Manufacturer Part Number | 03280768 |
| Maximum Work Piece Parting Diameter (Decimal Inch) | 1.000" |
| Maximum Work Piece Parting Diameter (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 1.260" |
| Functional Length (mm) | 32.00mm |
| Functional Height (Decimal Inch) | 0.235" |
| Functional Height (mm) | 5.98mm |
| Maximum Cutting Depth (Decimal Inch) | 0.472" |
| Maximum Cutting Depth (mm) | 12.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 93 Degree |
| Cutting Direction | Right Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Insert Clamping System | C |
| Shank Type | QC-Connection |

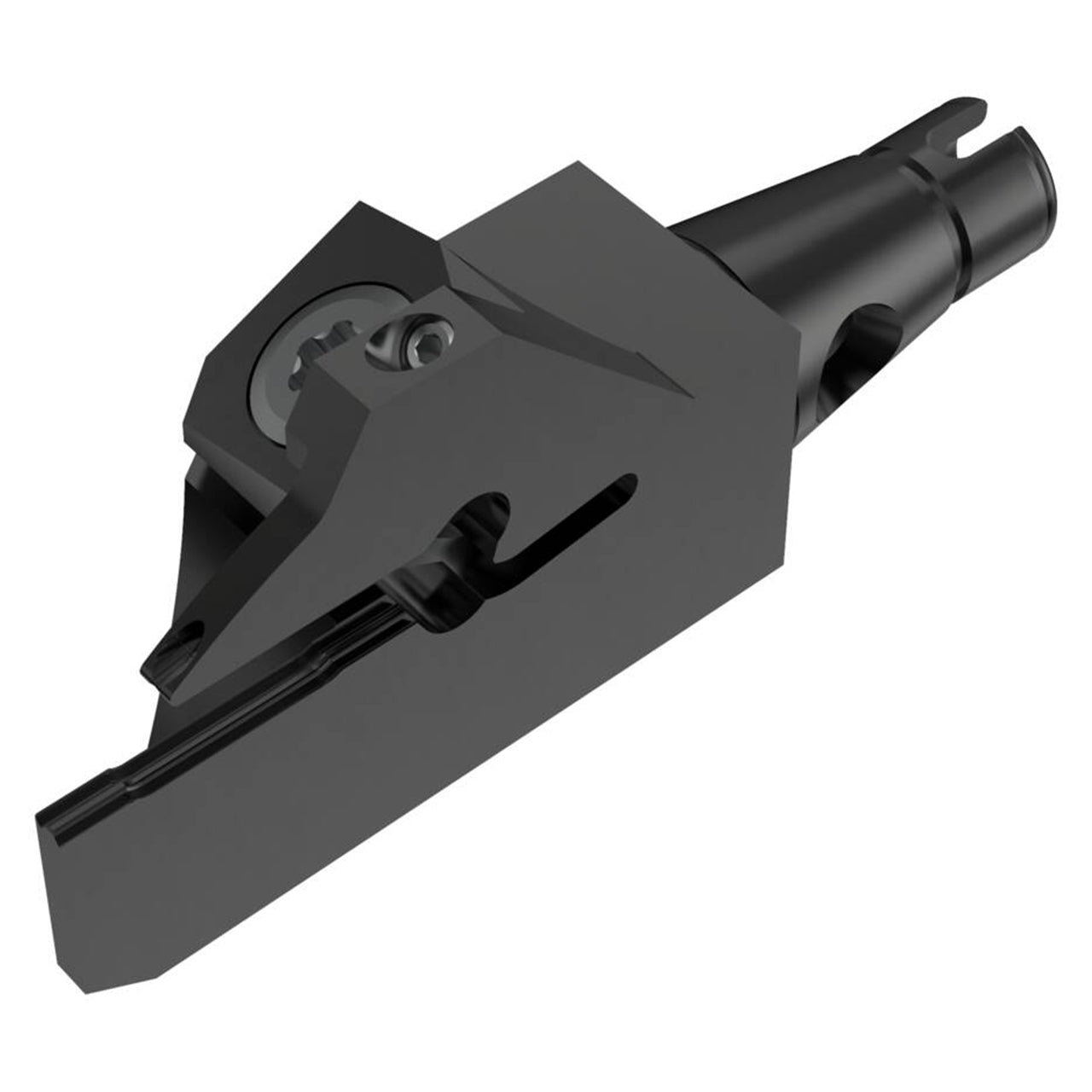

| Product Type | Modular Grooving Head |
