Product Specifications
| Manufacturer Part Number | 03280763 |
| Functional Length (Decimal Inch) | 1.024" |
| Functional Length (mm) | 26.00mm |
| Shank Width (Decimal Inch) | 0.424" |
| Shank Width (mm) | 10.76mm |
| Overall Width (Decimal Inch) | 0.630" |
| Overall Width (mm) | 16.00mm |
| Functional Width (Decimal Inch) | 0.236" |
| Functional Width (mm) | 6.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.228" |
| Maximum Cutting Depth (mm) | 5.80mm |
| Functional Height (Decimal Inch) | 0.311" |
| Functional Height (mm) | 7.90mm |
| Shank Type | QC-Connection |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 93 Degree |

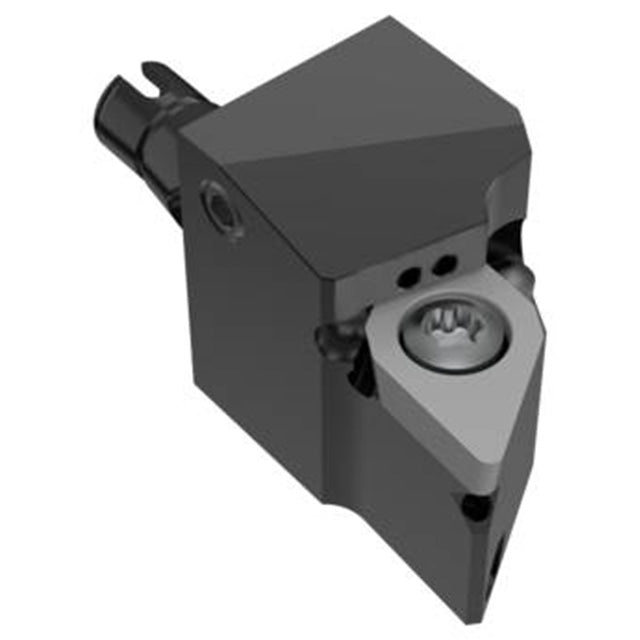

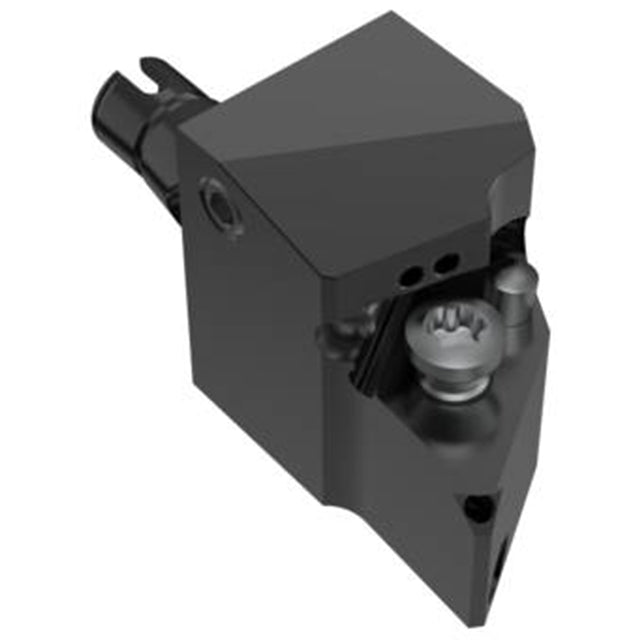

| Product Type | Modular Turning Head |
