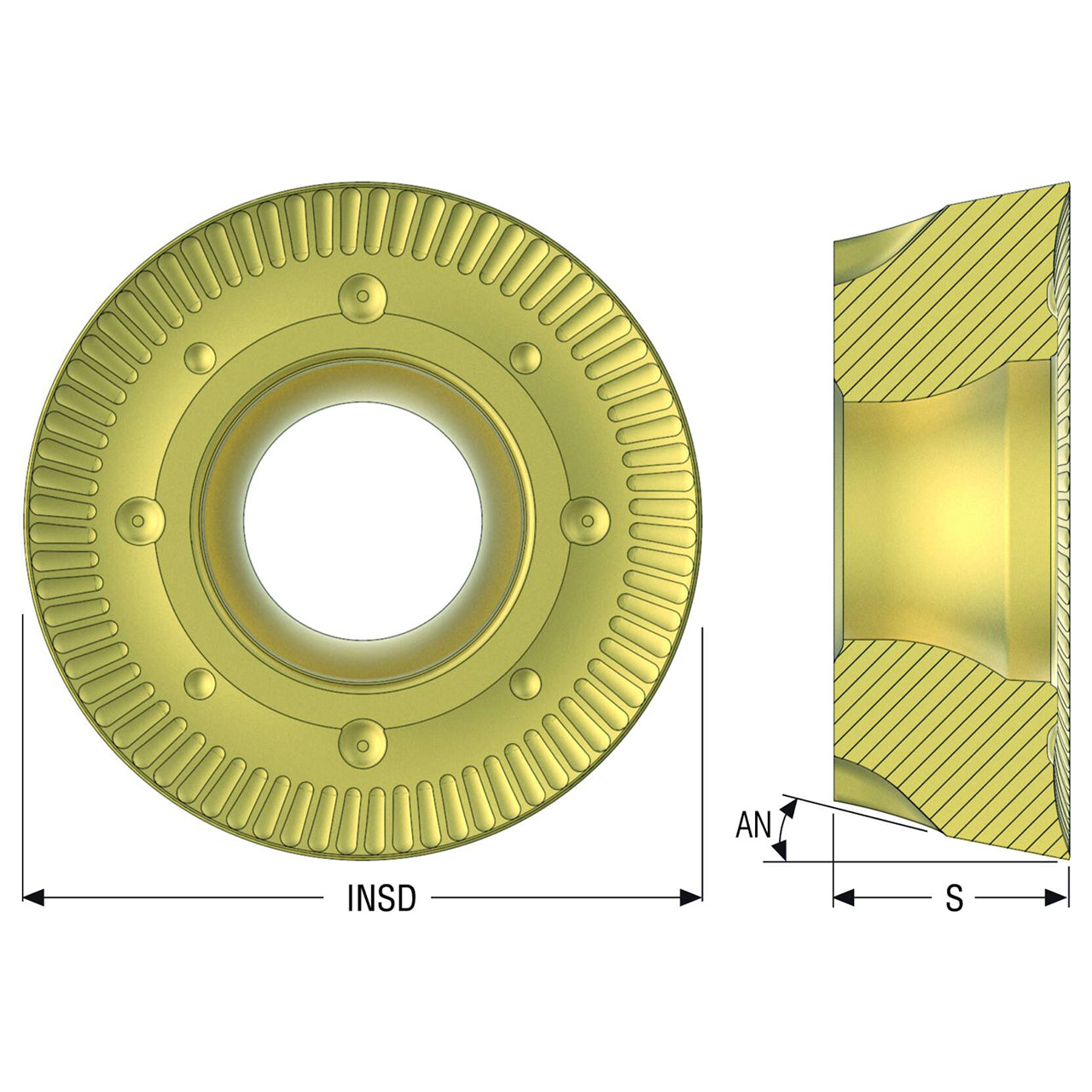

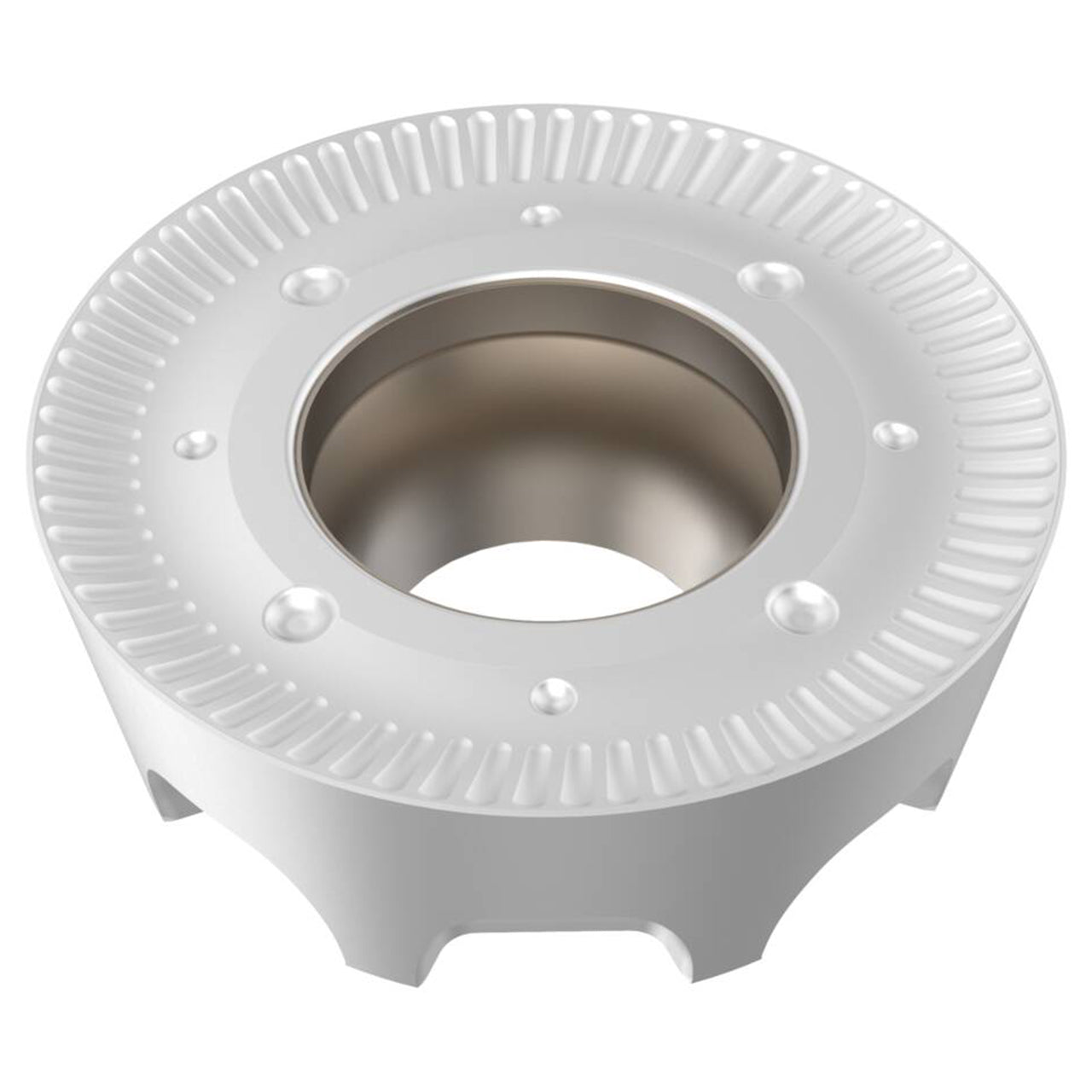

Product Specifications
| Manufacturer Part Number | 03280042 |
| Fixing Hole Diameter (Decimal Inch) | 0.221" |
| Fixing Hole Diameter (mm) | 5.60mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.630" |
| Inscribed Circle Diameter (mm) | 16.00mm |
| Insert Diameter (Decimal Inch) | 0.630" |
| Insert Diameter (mm) | 16.00mm |
| Insert Width (Decimal Inch) | 0.217" |
| Insert Width (mm) | 5.50mm |
| Corner Radius (Decimal Inch) | 0.315" |
| Corner Radius (mm) | 8.00mm |
| Insert Thickness (Decimal Inch) | 0.219" |
| Insert Thickness (mm) | 5.56mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 8 |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME11 |
| Pocket Seat Code of The Cutter | RP..1605 |
| Insert Size And Shape | RPHT1605 |
| Insert Rake Angle (Degree) | 21 Degree |
| Insert Hand | Neutral |
| Material | Carbide |
| Product Type | Disc Milling Insert |
