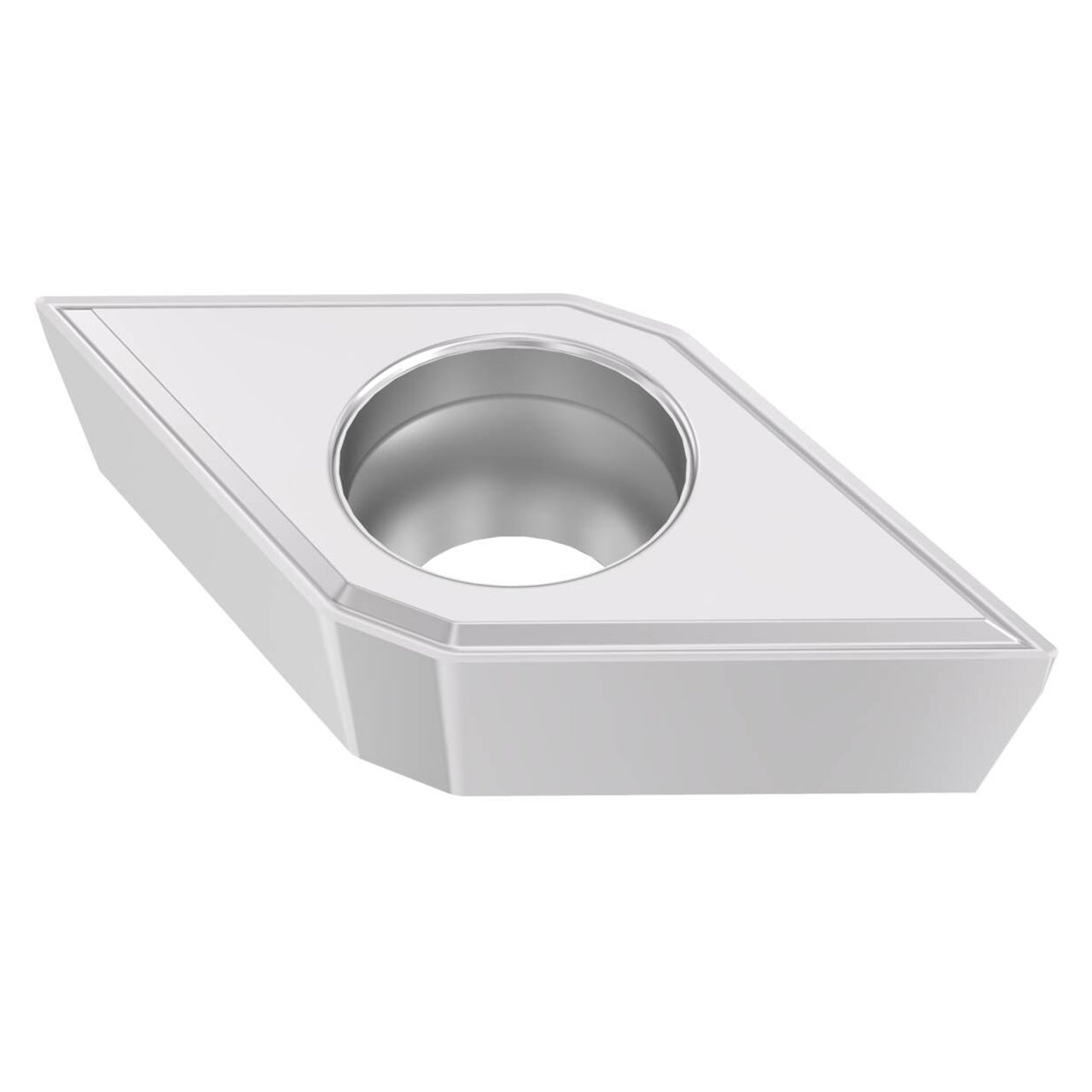

Product Specifications
| Manufacturer Part Number | 03280016 |
| Fixing Hole Diameter (Decimal Inch) | 0.177" |
| Fixing Hole Diameter (mm) | 4.50mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.449" |
| Cutting Edge Effective Length (mm) | 11.40mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.457" |
| Theoretical Cutting Edge Length (mm) | 11.60mm |
| Corner Radius (Decimal Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Included Angle (Degree) | 55 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | DC11T3 |
| Insert Shape Code | D |
| Material | Carbide |
| Product Type | Turning Insert |
