Product Specifications
| Manufacturer Part Number | 03278804 |
| Cutting Diameter (mm) | 40.00mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 41.00mm |
| Maximum Cutting Diameter (mm) | 50.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 98.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 90.00mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 10.40mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 4.3 Degree |
| Maximum Rotational Speed (rpm) | 17300 rpm |
| Insert Shape Code | R |
| Shank Type | Arbor |

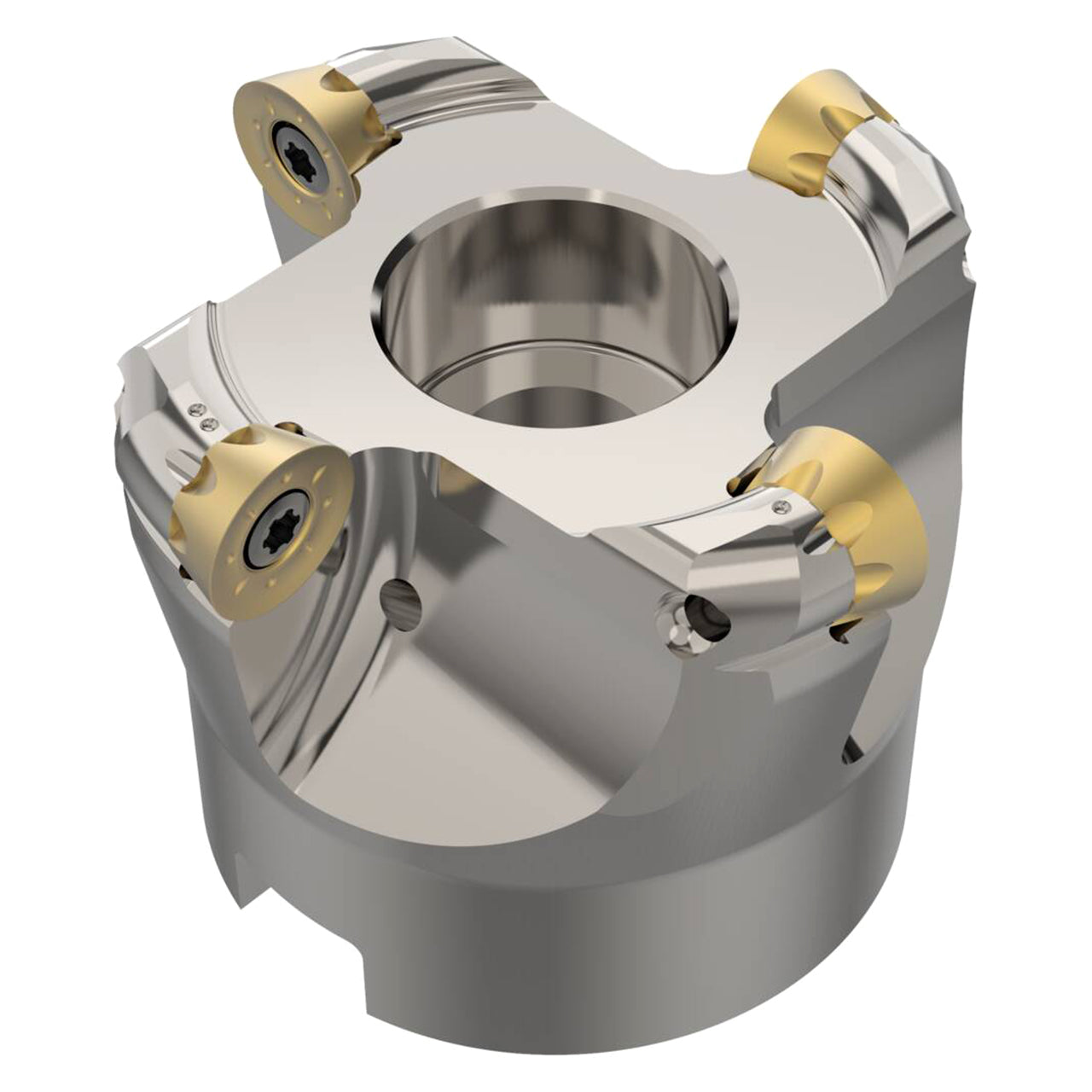

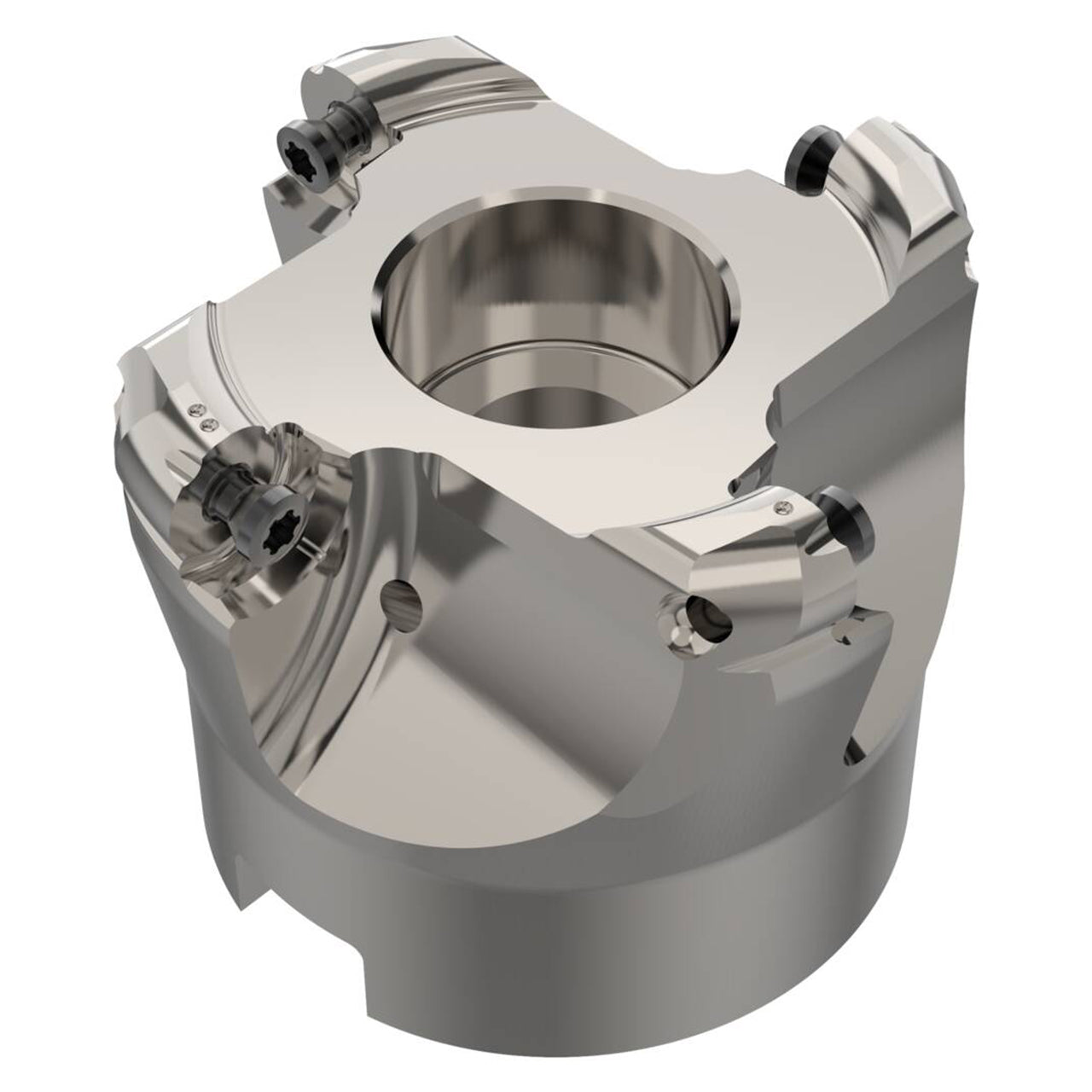

| Product Type | Indexable Copy End Mill |
