Product Specifications
| Manufacturer Part Number | 03278797 |
| Cutting Diameter (mm) | 15.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Maximum Cutting Diameter (mm) | 25.00mm |
| Shank Diameter (mm) | 20.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 48.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 40.00mm |
| Protruding Length (mm) | 120.00mm |
| Shank Length (mm) | 140.00mm |
| Overall Length (mm) | 170.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Coarse |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 14.5 Degree |
| Maximum Rotational Speed (rpm) | 24400 rpm |
| Insert Shape Code | R |
| Shank Type | Cylindrical |

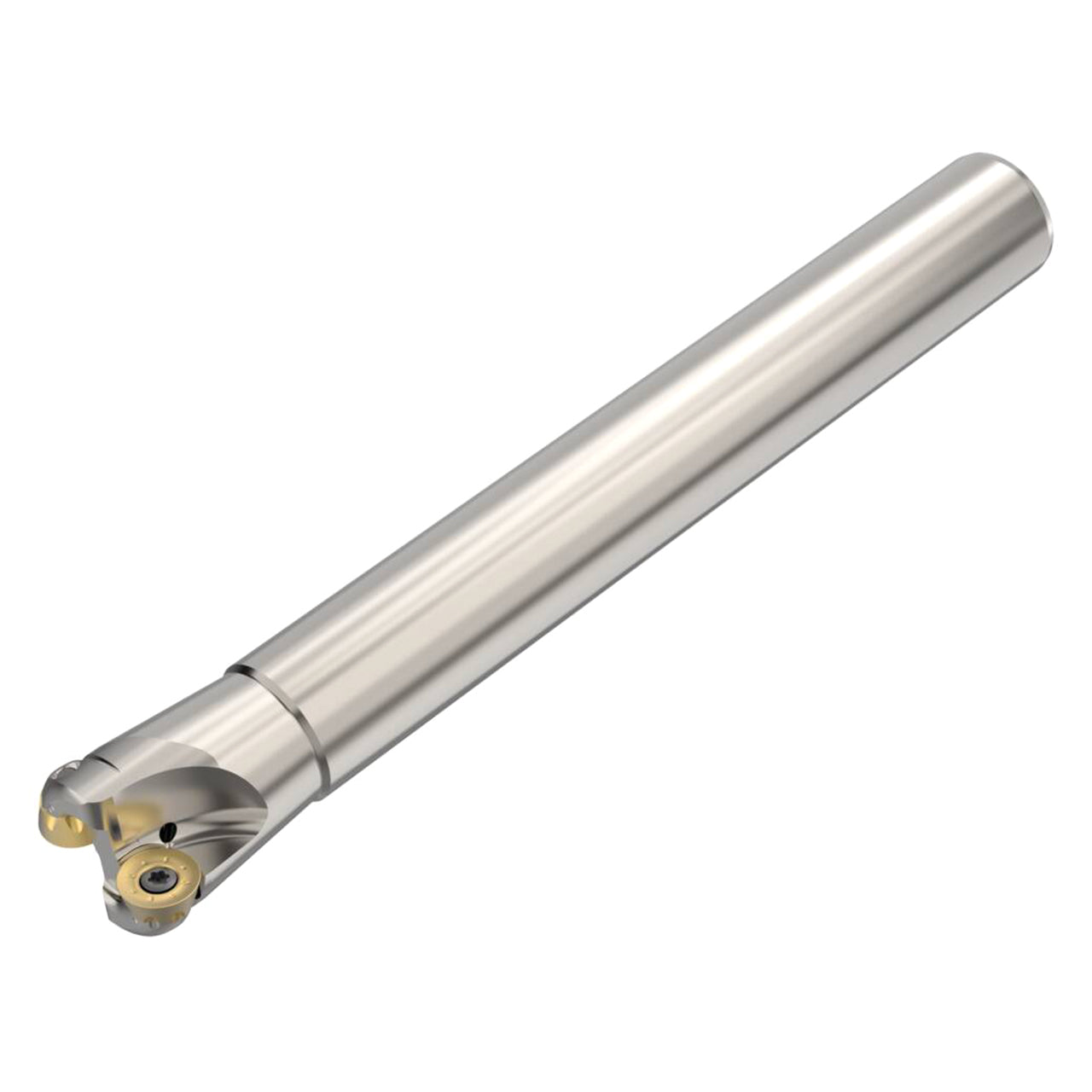

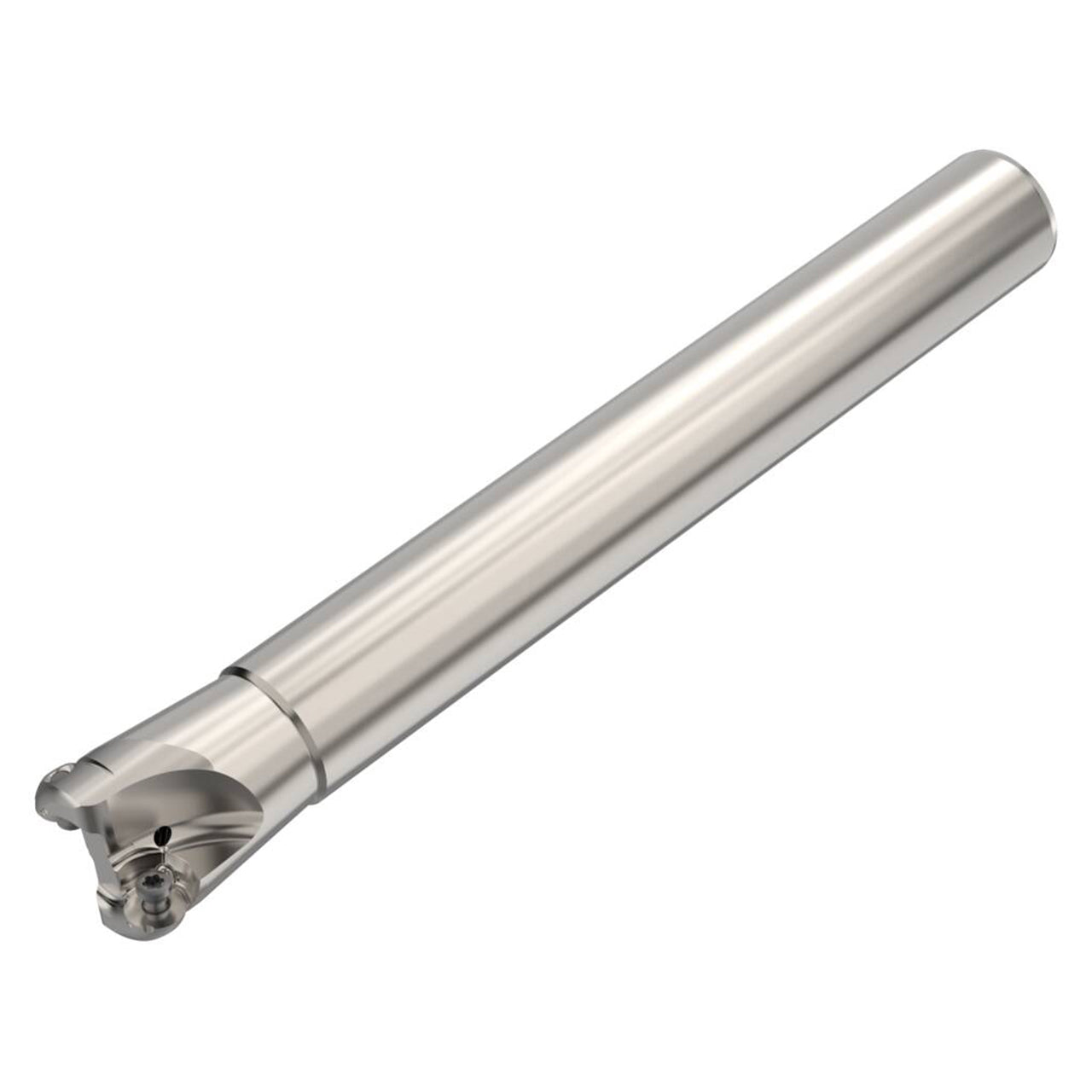

| Product Type | Indexable Copy End Mill |
