Product Specifications
| Manufacturer Part Number | 03278795 |
| Cutting Diameter (mm) | 10.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Maximum Cutting Diameter (mm) | 20.00mm |
| Shank Diameter (mm) | 16.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 38.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 30.00mm |
| Protruding Length (mm) | 112.00mm |
| Shank Length (mm) | 140.00mm |
| Overall Length (mm) | 160.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | 0.6 Degree |
| Rake Radial Angle (Degree) | 0.6 Degree |
| Rake Orthogonal Angle (Degree) | 0.6 Degree |
| Maximum Ramping Angle (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 27400 rpm |
| Insert Shape Code | R |
| Shank Type | Cylindrical |

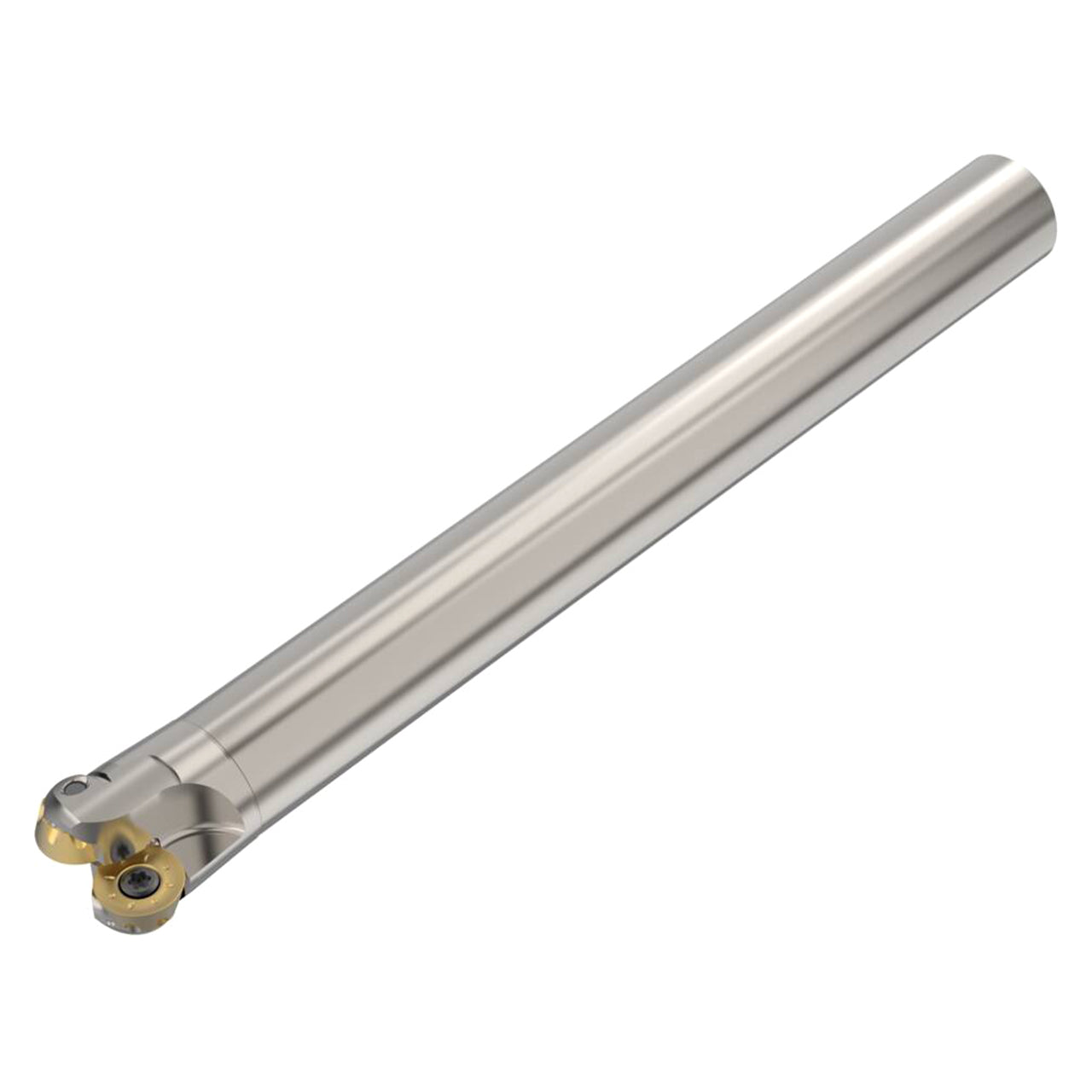

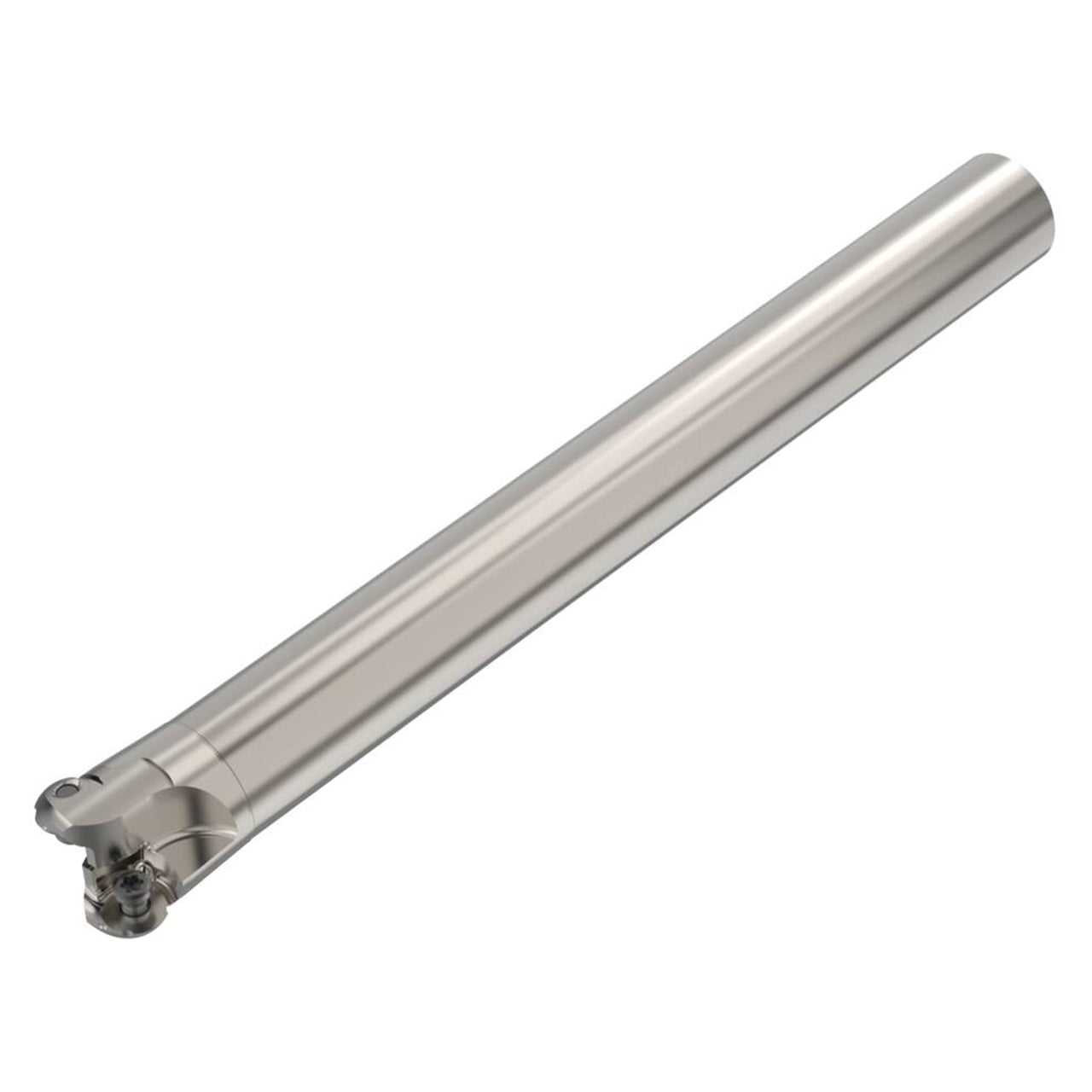

| Product Type | Indexable Copy End Mill |
