Product Specifications
| Manufacturer Part Number | 03278782 |
| Cutting Diameter (mm) | 15.00mm |
| Contact Surface Diameter Machine Side (mm) | 23.00mm |
| Maximum Cutting Diameter (mm) | 25.00mm |
| Thread Diameter Size | M12 |
| Maximum Helical Interpolation Hole Diameter (mm) | 48.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 40.00mm |
| Functional Length (mm) | 30.00mm |
| Overall Length (mm) | 51.75mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Connection Mounting Torque (Nm) | 60.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -2 Degree |
| Rake Radial Angle (Degree) | -2 Degree |
| Rake Orthogonal Angle (Degree) | -2 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 13.8 Degree |
| Maximum Rotational Speed (rpm) | 24400 rpm |
| Insert Shape Code | R |
| Shank Type | Combimaster |

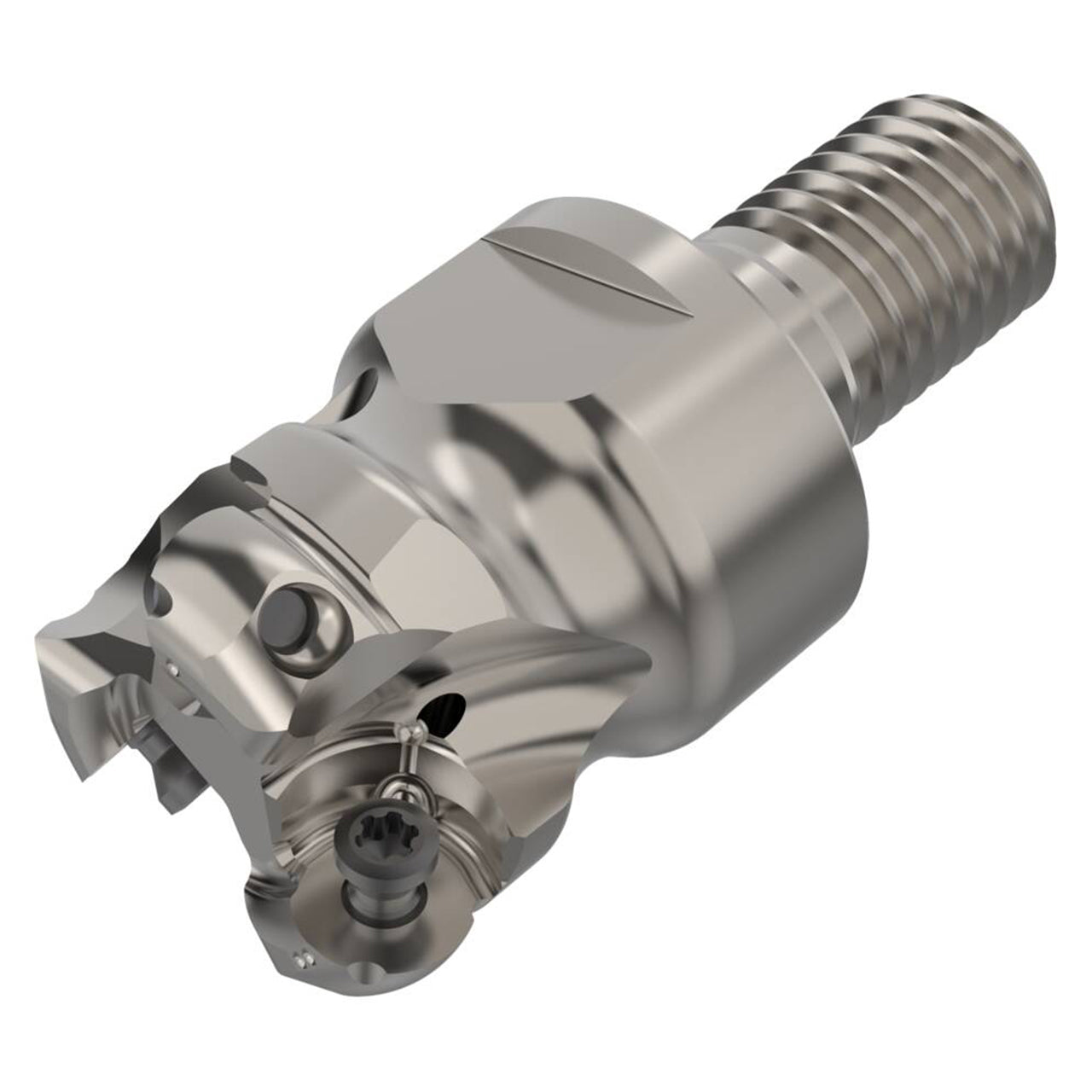

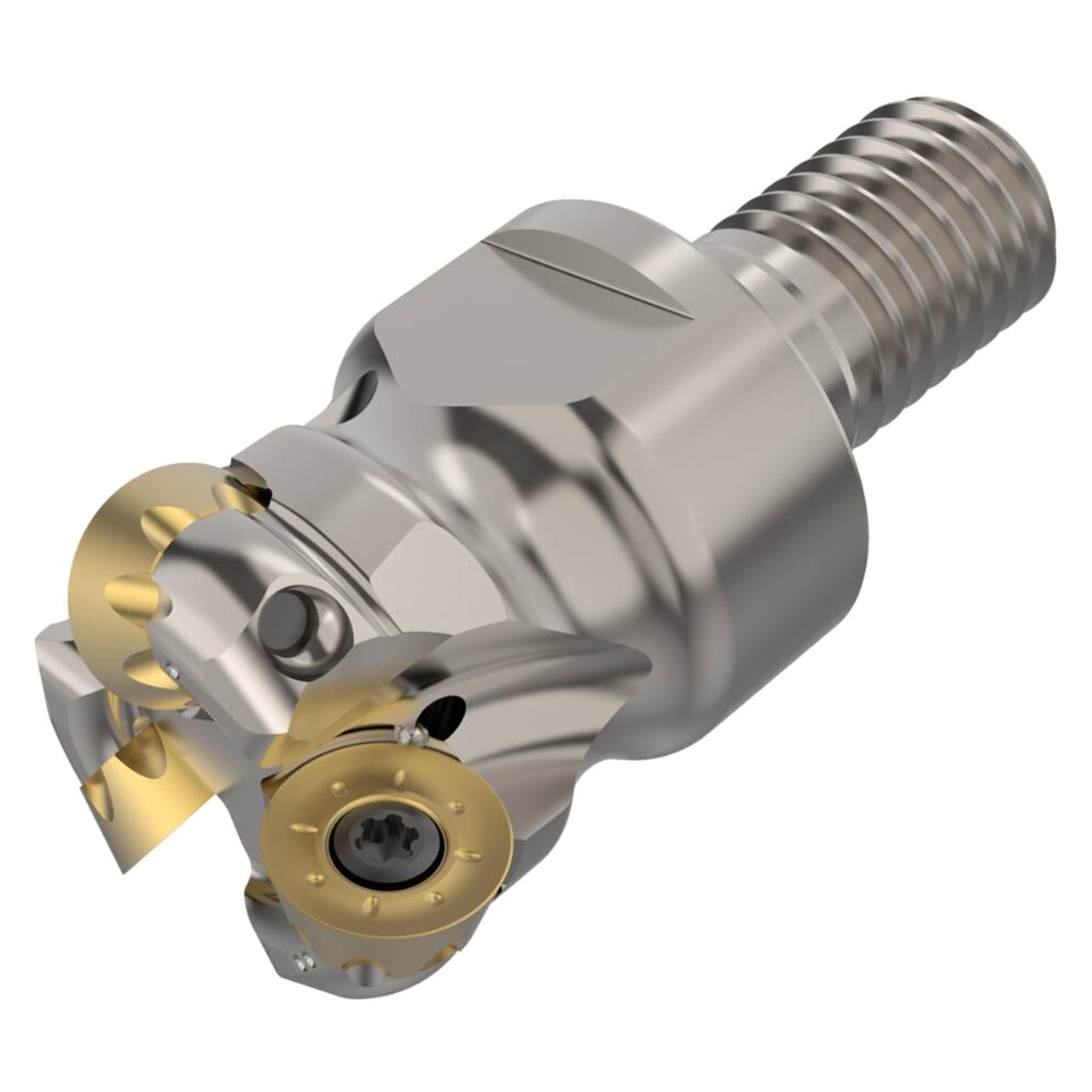

| Product Type | Indexable Copy End Mill |
