Product Specifications
| Manufacturer Part Number | 03277885 |
| Cutting Diameter (Decimal Inch) | 3.000" |
| Cutting Diameter (mm) | 76.20mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.181" |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Body Diameter (Decimal Inch) | 1.022" |
| Body Diameter (mm) | 25.95mm |
| Body Length (Decimal Inch) | 0.352" |
| Body Length (mm) | 8.94mm |
| Functional Length (Decimal Inch) | 1.378" |
| Functional Length (mm) | 35.00mm |
| Cutting Width (Decimal Inch) | 0.250" |
| Cutting Width (mm) | 6.35mm |
| Minimum Cutting Width (Decimal Inch) | 0.250" |
| Minimum Cutting Width (mm) | 6.35mm |
| Maximum Cutting Width (Decimal Inch) | 0.250" |
| Maximum Depth of Cut (Decimal Inch) | 0.250" |
| Maximum Depth of Cut (mm) | 6.35mm |
| Maximum Cutting Depth (Decimal Inch) | 0.961" |
| Maximum Cutting Depth (mm) | 24.40mm |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -15 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 8400 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | 335.19-1204 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Combimaster |

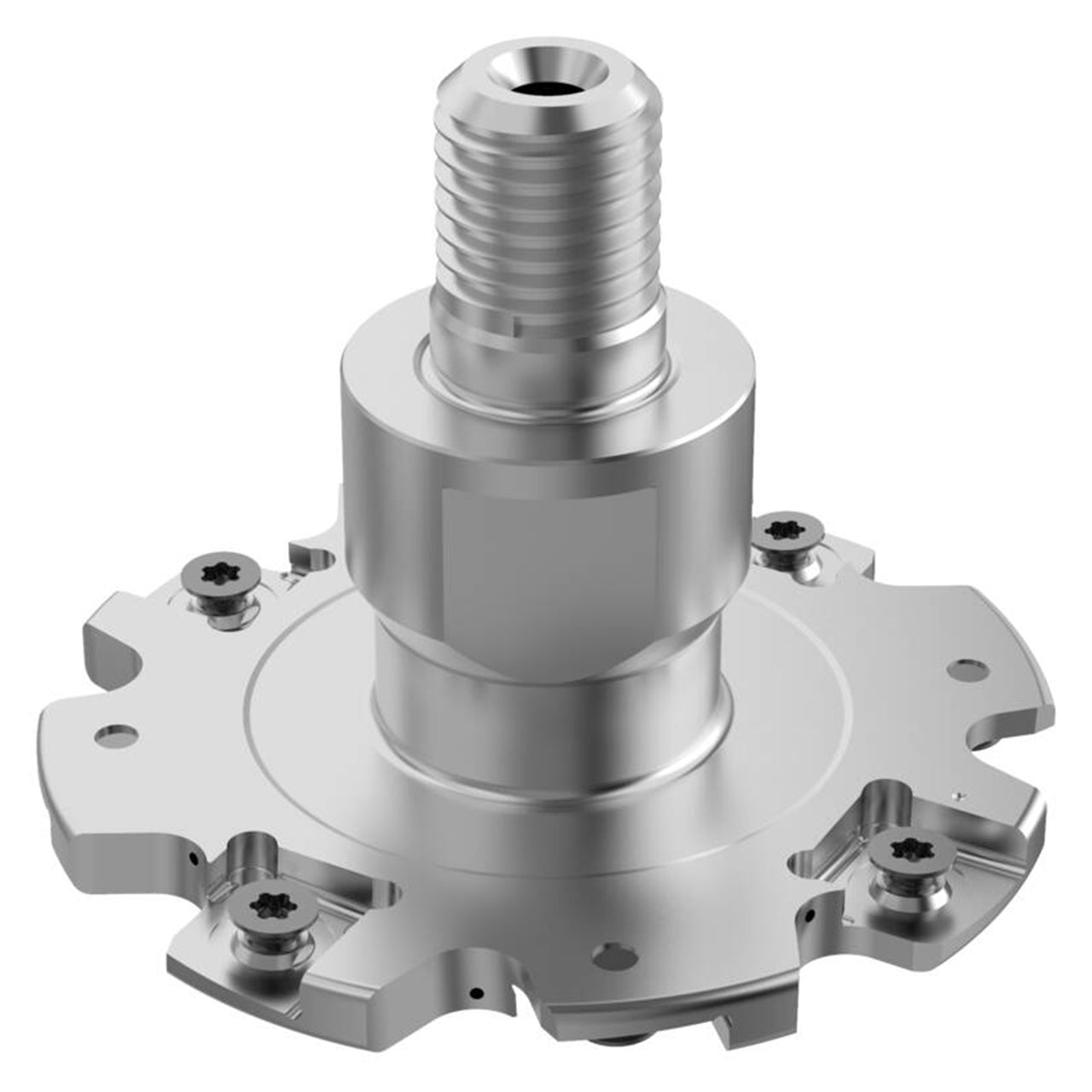

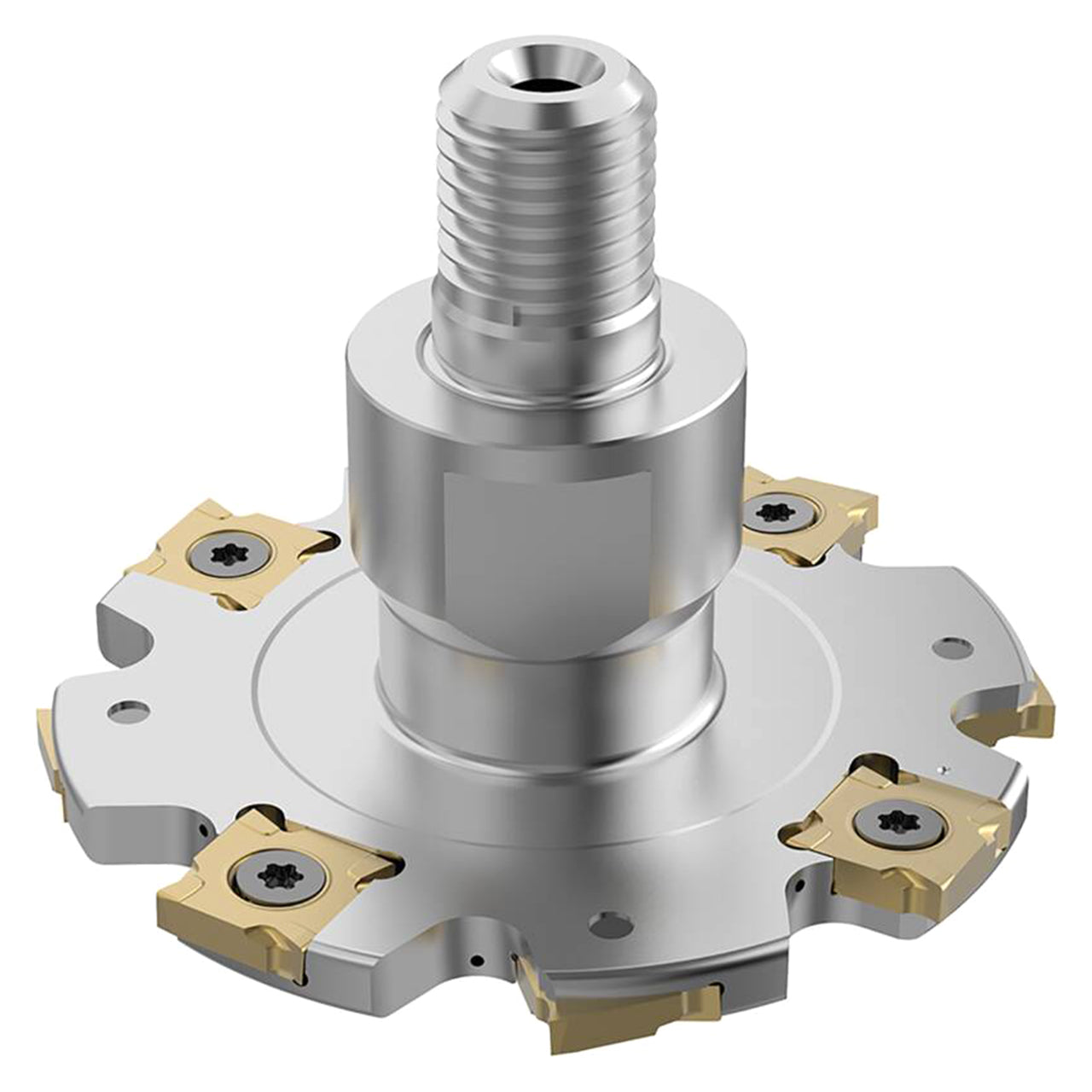

| Product Type | Indexable Slotting Cutter |
