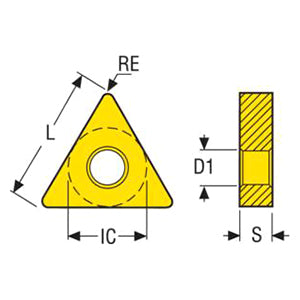

Product Specifications
| Manufacturer Part Number | 03276668 |
| Fixing Hole Diameter (Decimal Inch) | 0.150" |
| Fixing Hole Diameter (mm) | 3.81mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.572" |
| Cutting Edge Effective Length (mm) | 14.54mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.650" |
| Theoretical Cutting Edge Length (mm) | 16.50mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Cutting Edge Count | 6 |
| Insert Included Angle (Degree) | 60 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | TN1604 |
| Insert Shape Code | T |
| Material | Carbide |

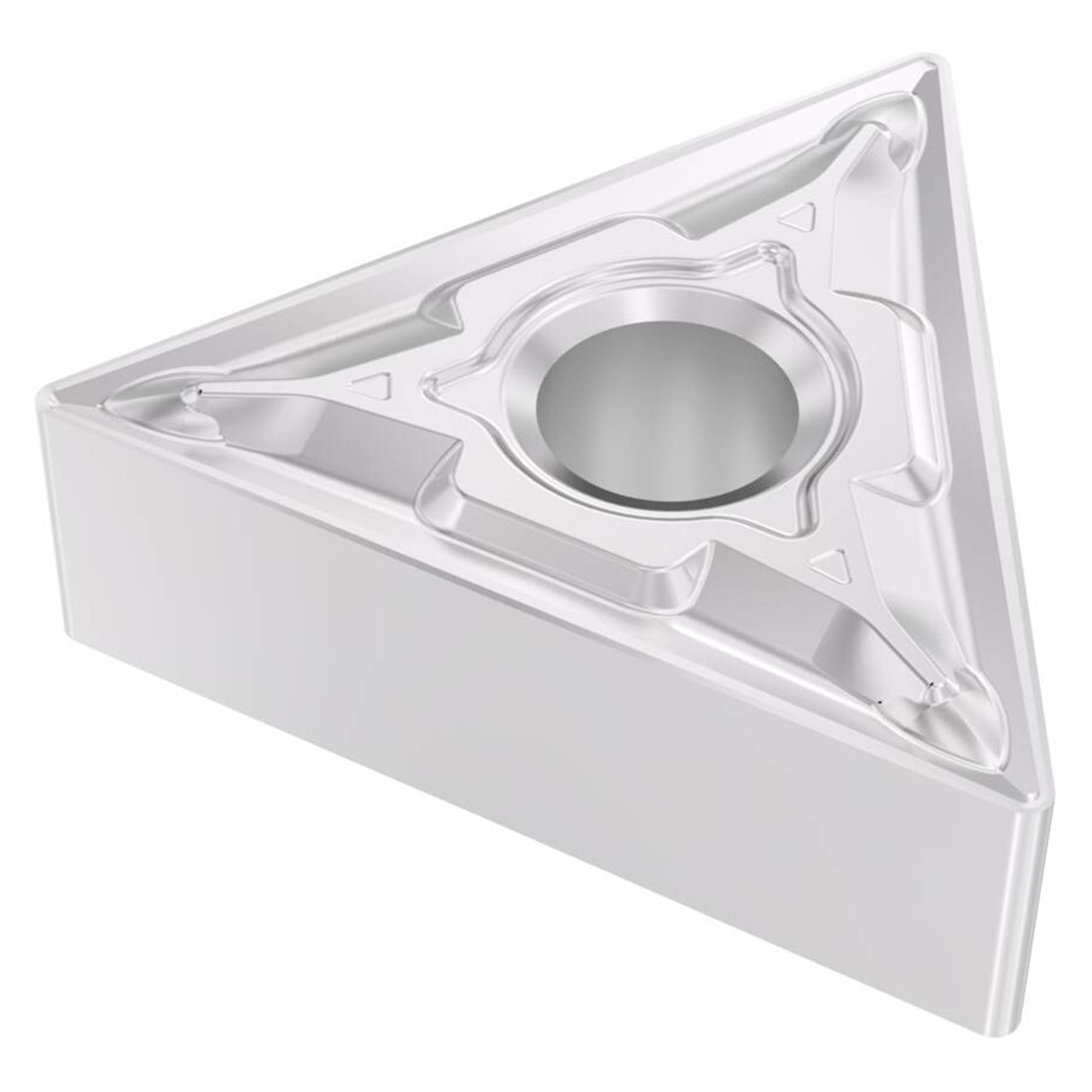

| Product Type | Turning Insert |
