Product Specifications

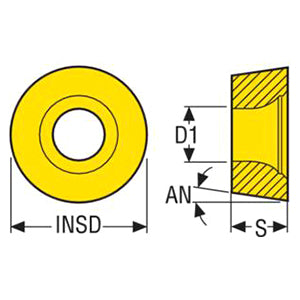

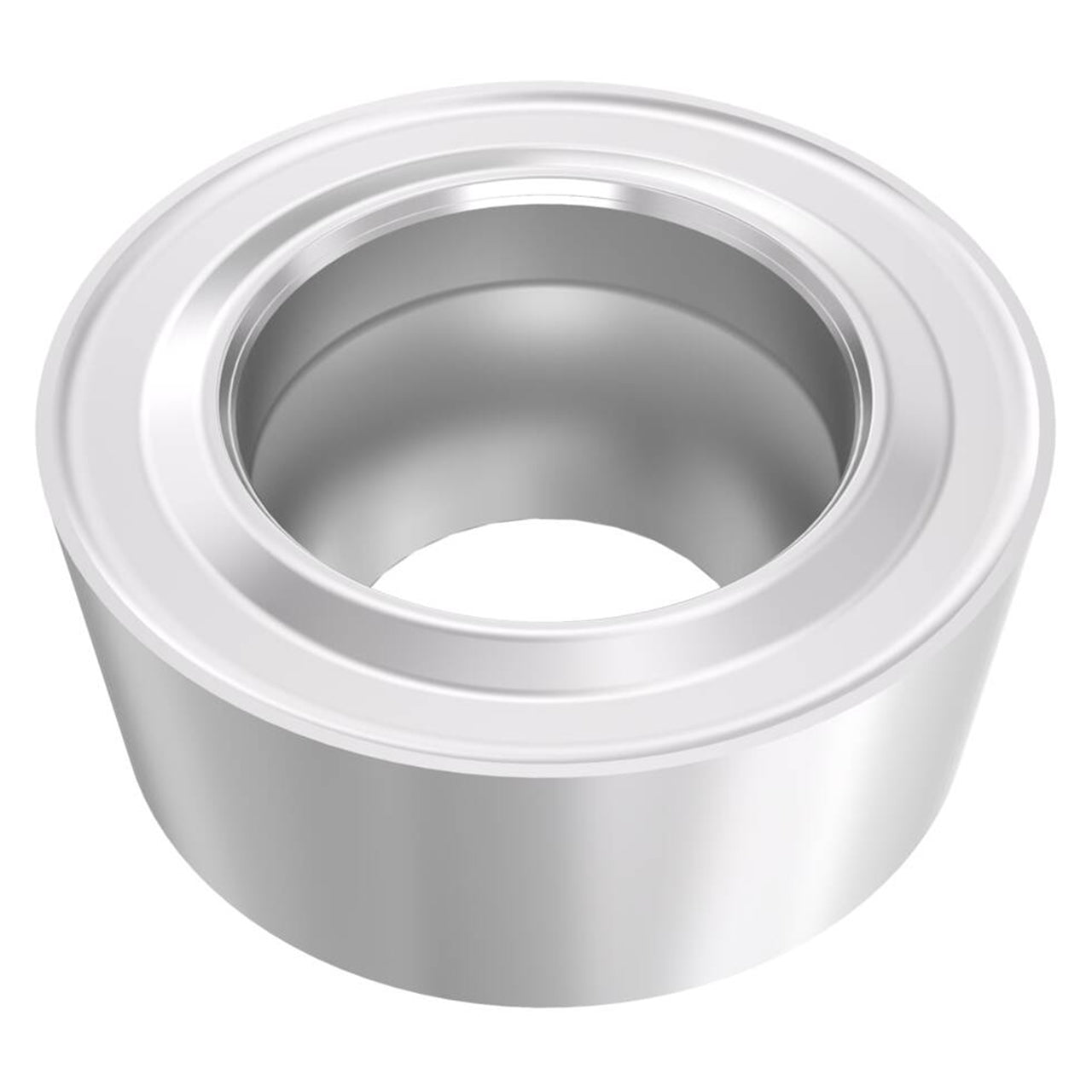

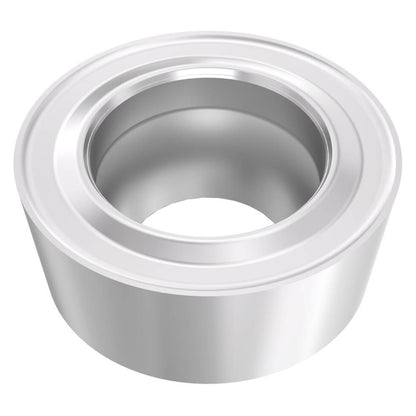

| Manufacturer Part Number | 03276565 |
| Fixing Hole Diameter (Decimal Inch) | 0.177" |
| Fixing Hole Diameter (mm) | 4.50mm |
| Insert Diameter (Decimal Inch) | 0.394" |
| Insert Diameter (mm) | 10.00mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 4 |
| Insert Size And Shape | RC10T3 |
| Material | Carbide |
| Insert Hand | Neutral |
| Insert Shape Code | R |
| Insert Seat Size Code | 10 |
| Product Type | Turning Insert |
