Product Specifications

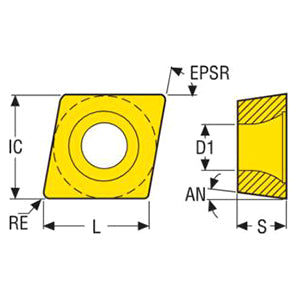

| Manufacturer Part Number | 03275977 |
| Fixing Hole Diameter (Decimal Inch) | 0.221" |
| Fixing Hole Diameter (mm) | 5.60mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.625" |
| Inscribed Circle Diameter (mm) | 15.88mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.602" |
| Cutting Edge Effective Length (mm) | 15.30mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.635" |
| Theoretical Cutting Edge Length (mm) | 16.12mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.219" |
| Insert Thickness (mm) | 5.56mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Included Angle (Degree) | 80 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | CC1605 |
| Insert Shape Code | C |
| Material | Carbide |

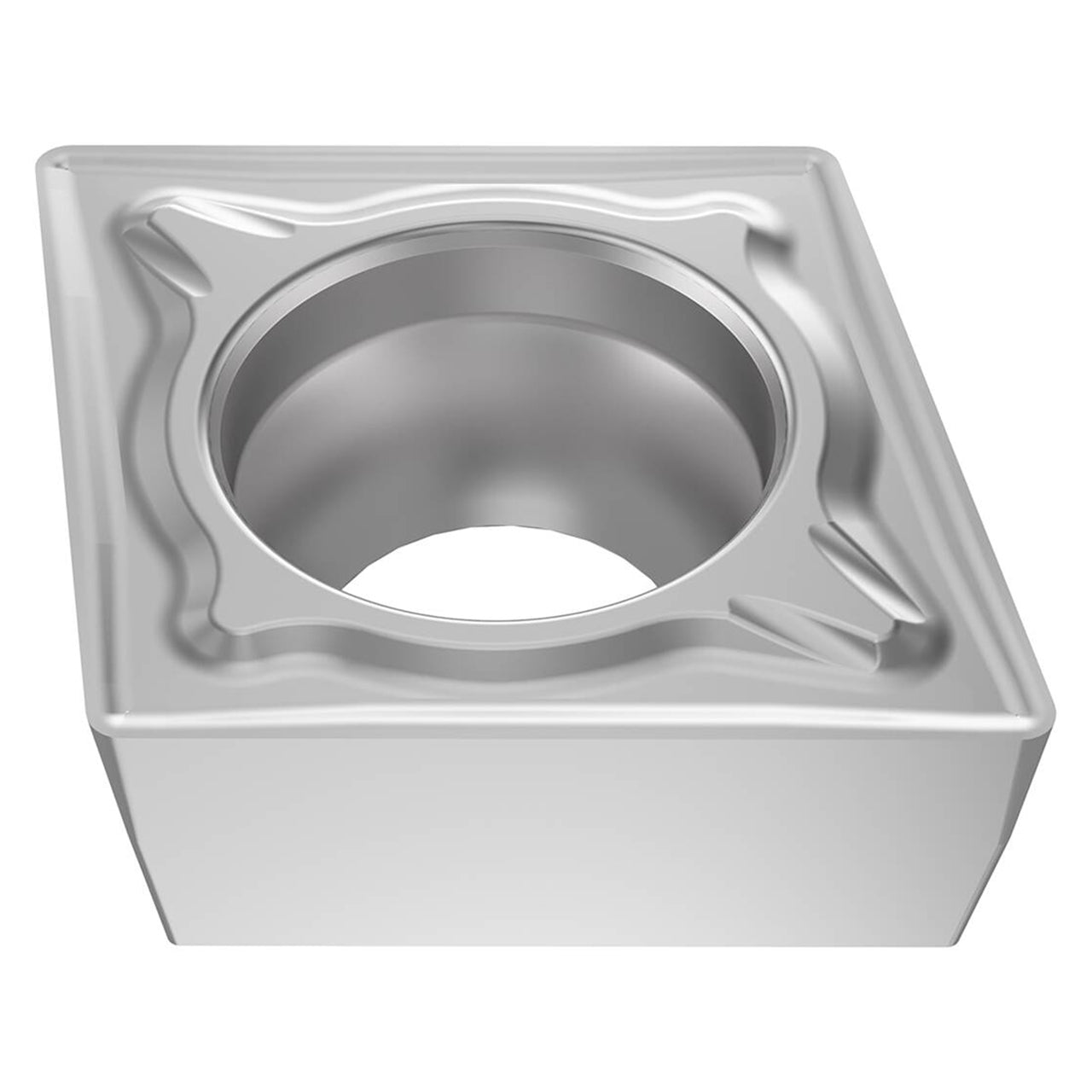

| Product Type | Turning Insert |
