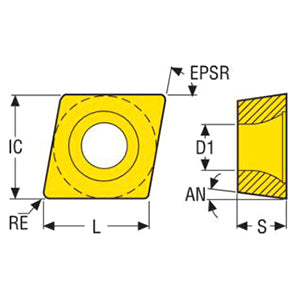

Product Specifications
| Manufacturer Part Number | 03275920 |
| Fixing Hole Diameter (Decimal Inch) | 0.114" |
| Fixing Hole Diameter (mm) | 2.90mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.250" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.220" |
| Cutting Edge Effective Length (mm) | 5.58mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.254" |
| Theoretical Cutting Edge Length (mm) | 6.45mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.094" |
| Insert Thickness (mm) | 2.38mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Included Angle (Degree) | 80 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | CC0602 |
| Insert Shape Code | C |
| Material | Carbide |
| Product Type | Turning Insert |
