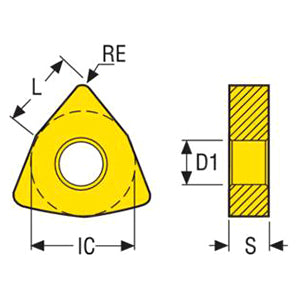

Product Specifications
| Manufacturer Part Number | 03274183 |
| Fixing Hole Diameter (Decimal Inch) | 0.203" |
| Fixing Hole Diameter (mm) | 5.15mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.323" |
| Cutting Edge Effective Length (mm) | 8.20mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.343" |
| Theoretical Cutting Edge Length (mm) | 8.70mm |
| Corner Radius (Decimal Inch) | 0.047" |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Cutting Edge Count | 6 |
| Insert Included Angle (Degree) | 80 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | WN0804 |
| Insert Shape Code | W |
| Material | Carbide |

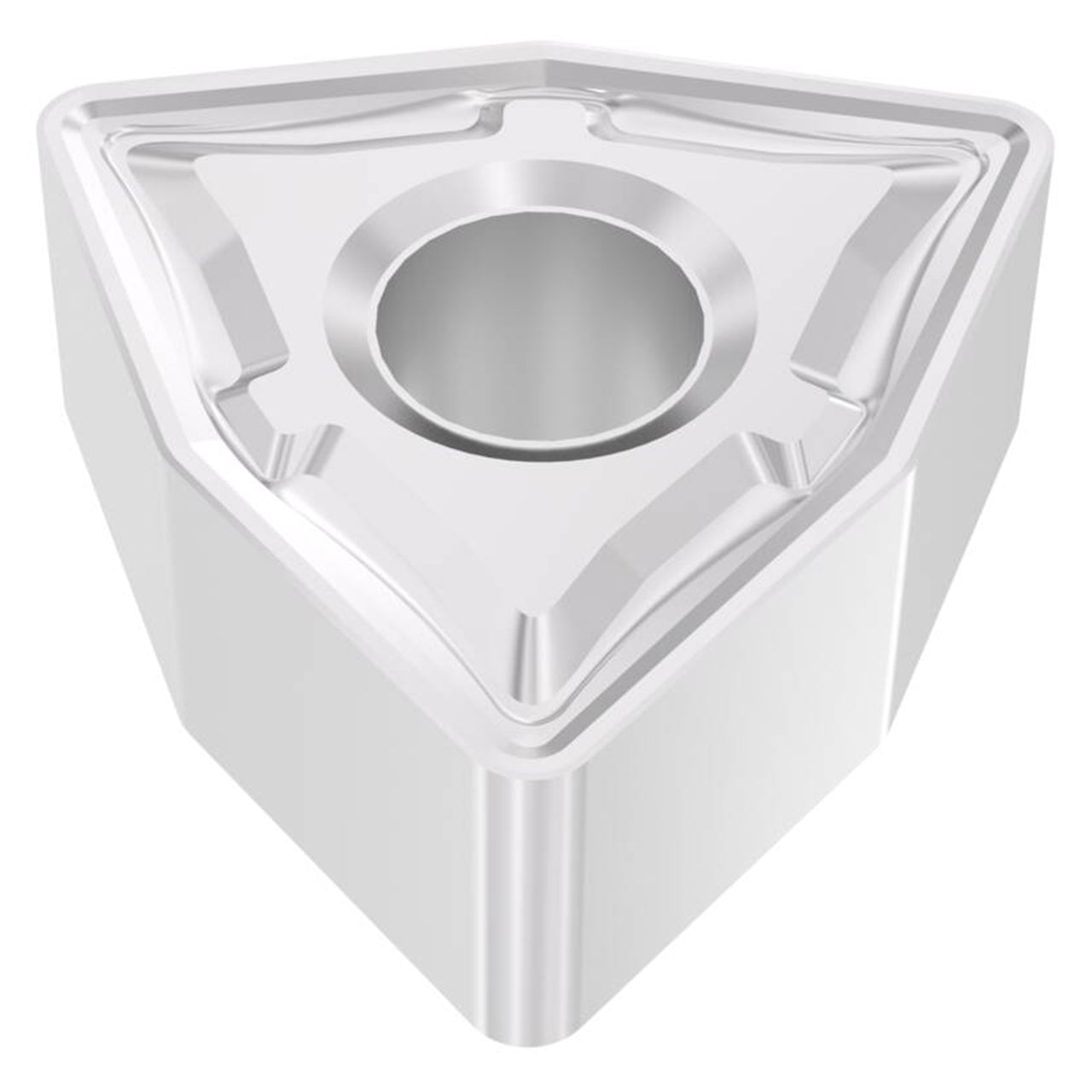

| Product Type | Turning Insert |
