Product Specifications
| Manufacturer Part Number | 03273000 |
| Fixing Hole Diameter (Decimal Inch) | 0.197" |
| Fixing Hole Diameter (mm) | 5.00mm |

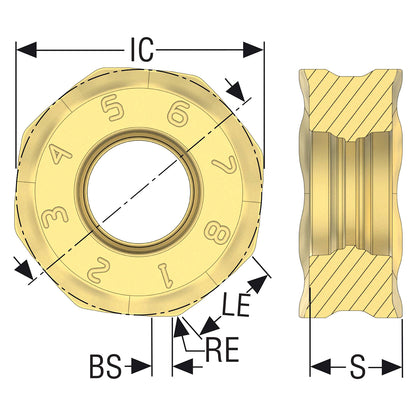

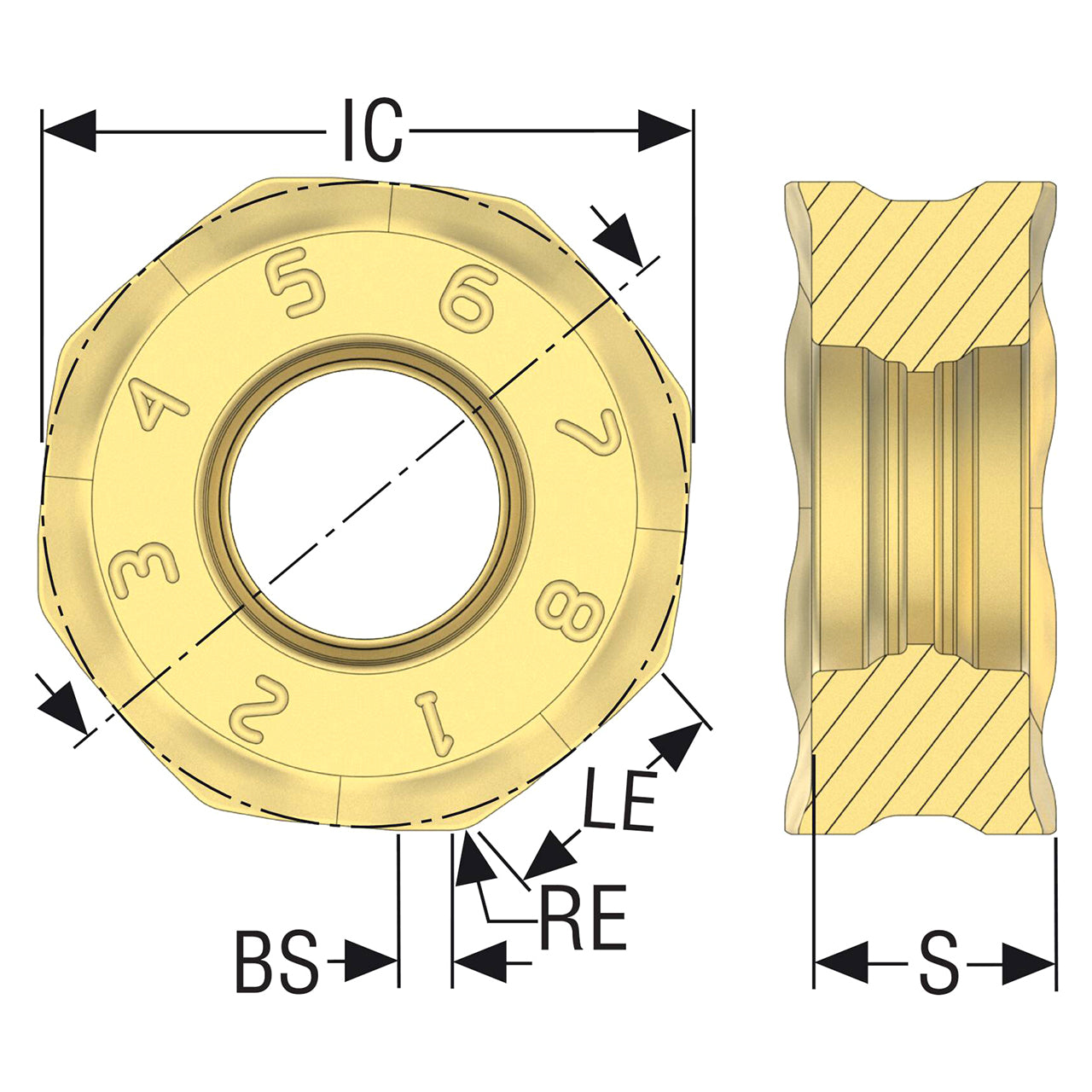

| Inscribed Circle Diameter (Decimal Inch) | 0.472" |
| Inscribed Circle Diameter (mm) | 12.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.161" |
| Cutting Edge Effective Length (mm) | 4.10mm |
| Wiper Edge Length (Decimal Inch) | 0.012" |
| Wiper Edge Length (mm) | 0.30mm |
| Corner Radius (Decimal Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Insert Thickness (Decimal Inch) | 0.177" |
| Insert Thickness (mm) | 4.50mm |
| Insert Thickness 1 (Decimal Inch) | 0.158" |
| Insert Thickness 1 (mm) | 4.00mm |
| Cutting Edge Count | 16 |
| Insert Rake Angle (Degree) | 20 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M10 |
| Pocket Seat Code of The Cutter | ON.U0504 |
| Insert Size And Shape | ONMU0504 |
| Insert Shape Code | O |
| Material | Carbide |

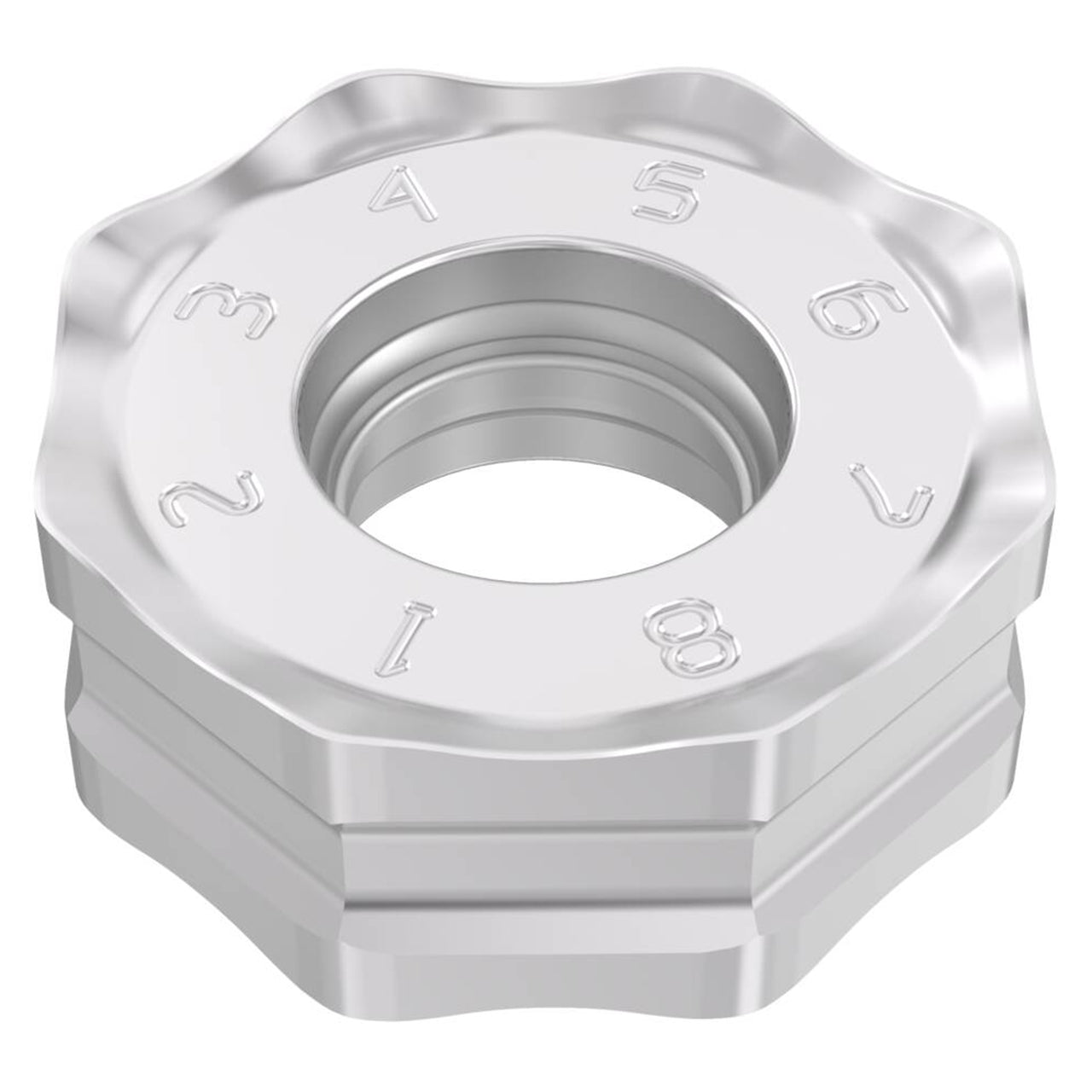

| Product Type | Double Octomill |
